DAP-1610 AC1200 Wi-Fi Range Extender
User Manual
Installation and Connection
Connecting to PC
PC with Ethernet Adapter
1. Connect an Ethernet cable between the Ethernet port of the extender and the Ethernet port of
your PC.
2. Plug the device into an electrical outlet or power strip.
Now you should configure your PC to obtain an IP address automatically (as DHCP client).
Obtaining IP Address Automatically in OS Windows 7
1. Click the Start button and proceed to the Control Panel window.
2. Select the Network and Sharing Center section. (If the Control Panel has the category
view (the Category value is selected from the View by drop-down list in the top right
corner of the window), choose the View network status and tasks line under the
Network and Internet section.)

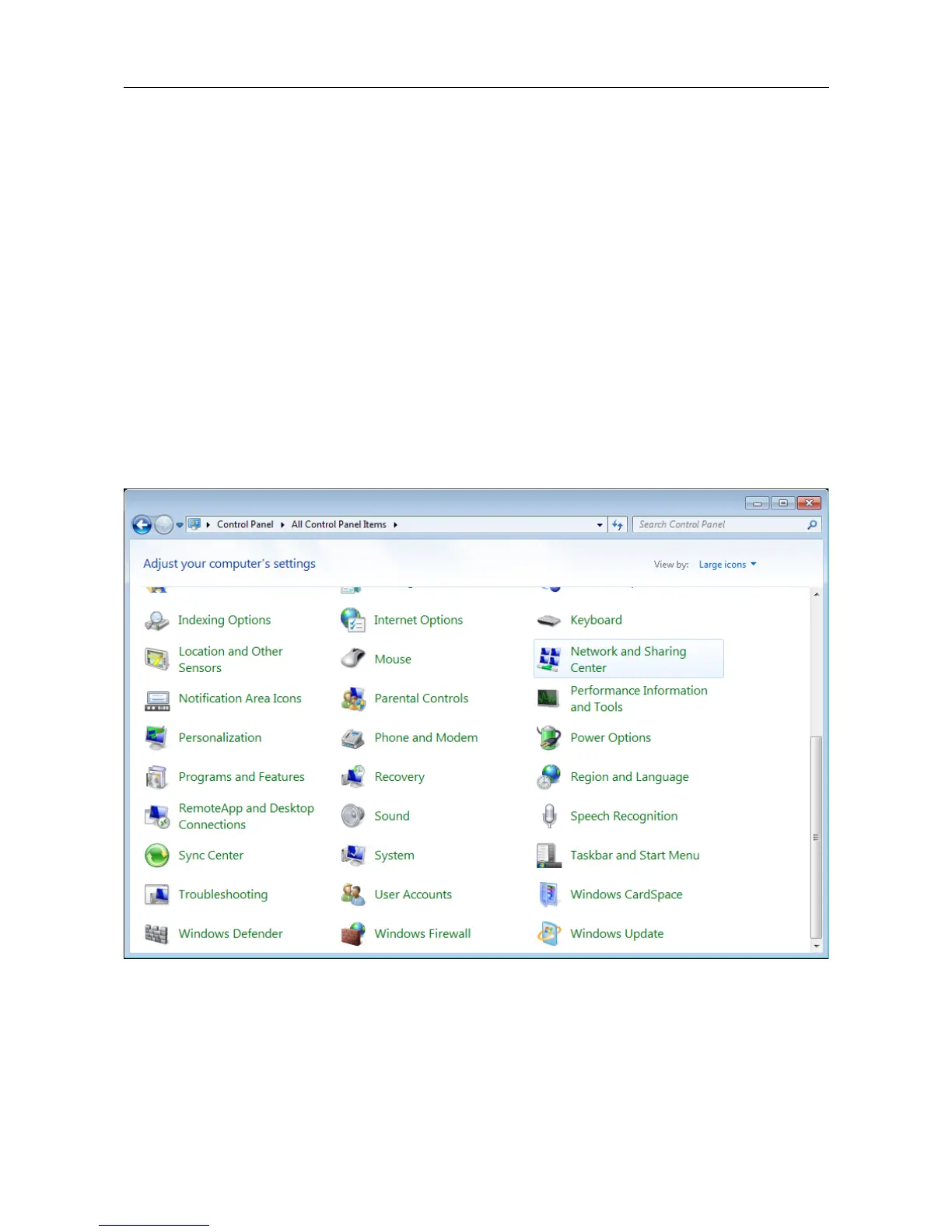

Figure 3. The Control Panel window.
Page 14 of 91
