DAP-1610 AC1200 Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
CHAPTER 4. CONFIGURING VIA WEB-BASED
INTERFACE
Initial Configuration Wizard
To start the Initial Configuration Wizard, go to the Initial Configuration section. On the opened
page, click the OK button and wait until the factory default settings are restored.

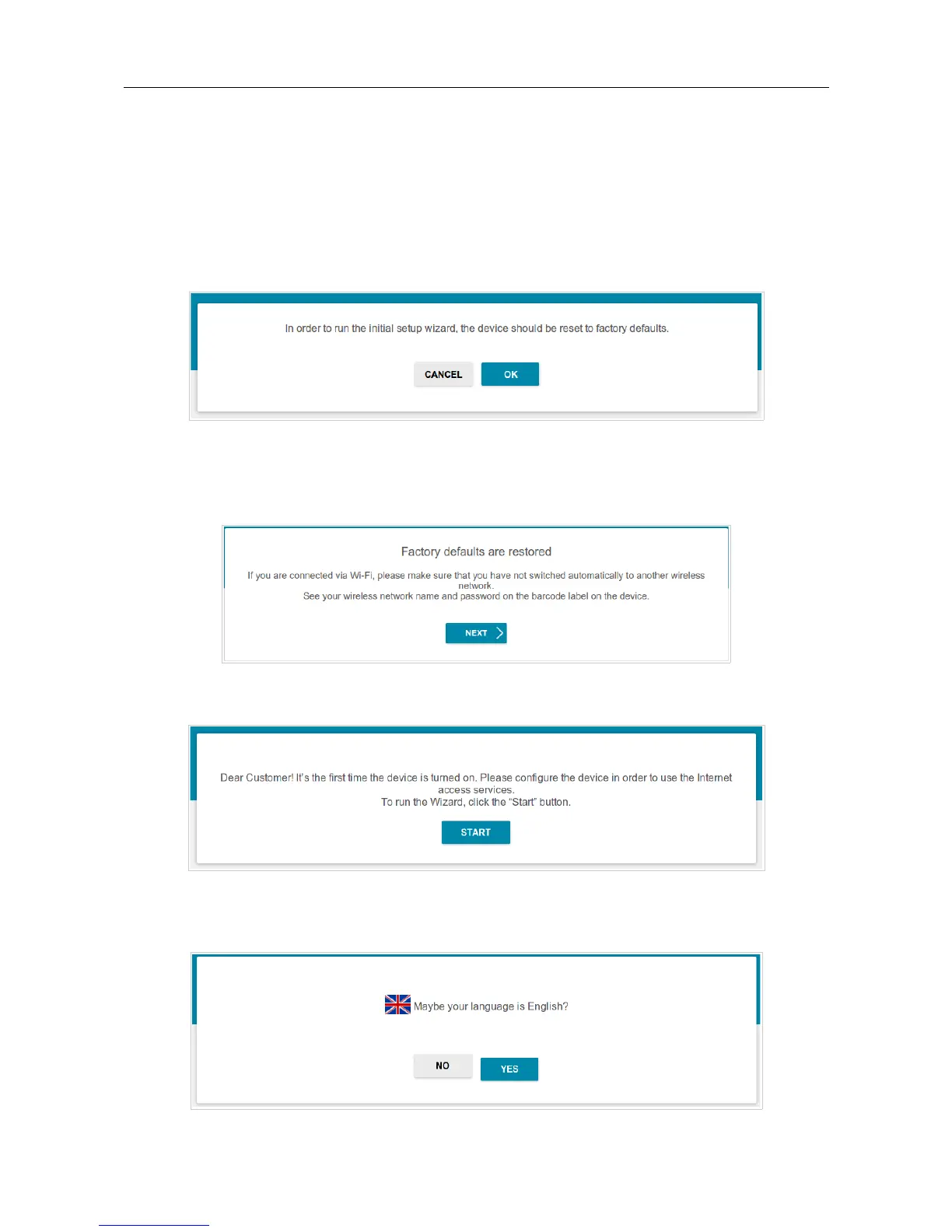

Figure 16. Restoring the default settings in the Wizard.
If you perform initial configuration of the extender via Wi-Fi connection, please make sure that you
are connected to the wireless network of DAP-1610 (see the WLAN name (SSID) on the barcode
label on the back panel of the device) and click the NEXT button.
Figure 17. Checking connection to the wireless network.
Click the START button.
Figure 18. Starting the Wizard.
On the opened page, click YES in order to leave the current language of the web-based interface or
click NO to select the other language.
Figure 19. Selecting a language.
Page 26 of 91
