DAP-1610 AC1200 Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
Statistics
The pages of this section display data on the current state of the extender:
• network statistics
• IP addresses leased by the DHCP server
• data on devices connected to the extender's network and its web-based interface
• addresses of active multicast groups.
Network Statistics
On the Statistics / Network Statistics page, you can view statistics for all connections existing
in the system. For each connection the following data are displayed: name and state (when the
connection is on, its name is highlighted in green, when the connection is off, its name is
highlighted in red), IP address and subnet mask, gateway (if the connection is established), MAC
address, and volume of data received and transmitted (with increase of the volume the units of
measurement are changed automatically: byte, Kbyte, Mbyte, Gbyte).

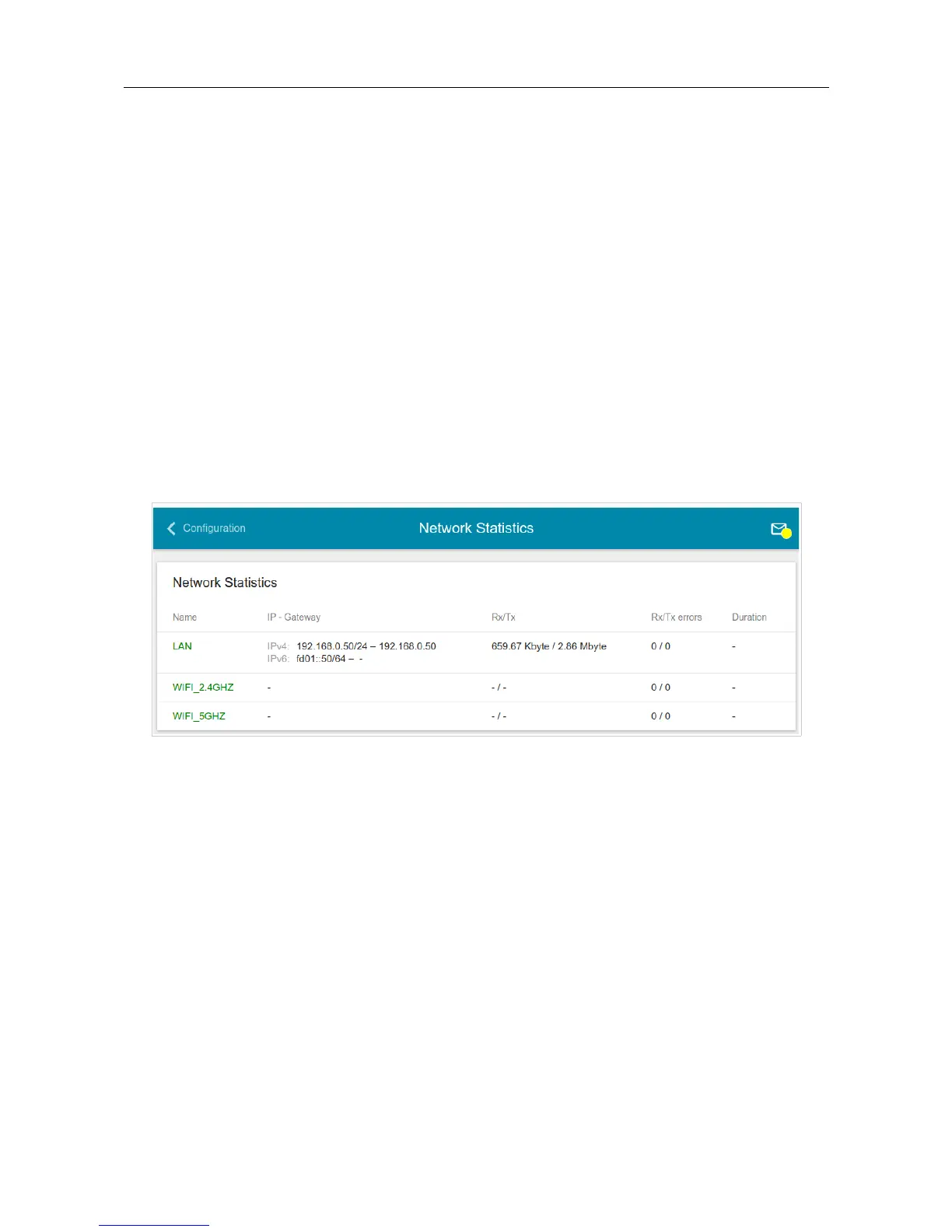

Figure 29. The Statistics / Network Statistics page.
To view data on a connection, click the line corresponding to this connection.
Page 34 of 91
