DAP-1610 AC1200 Wi-Fi Range Extender
User Manual
Installation and Connection
Web-based Interface Structure
Summary Page
On the Summary page, detailed information on the device state is displayed.

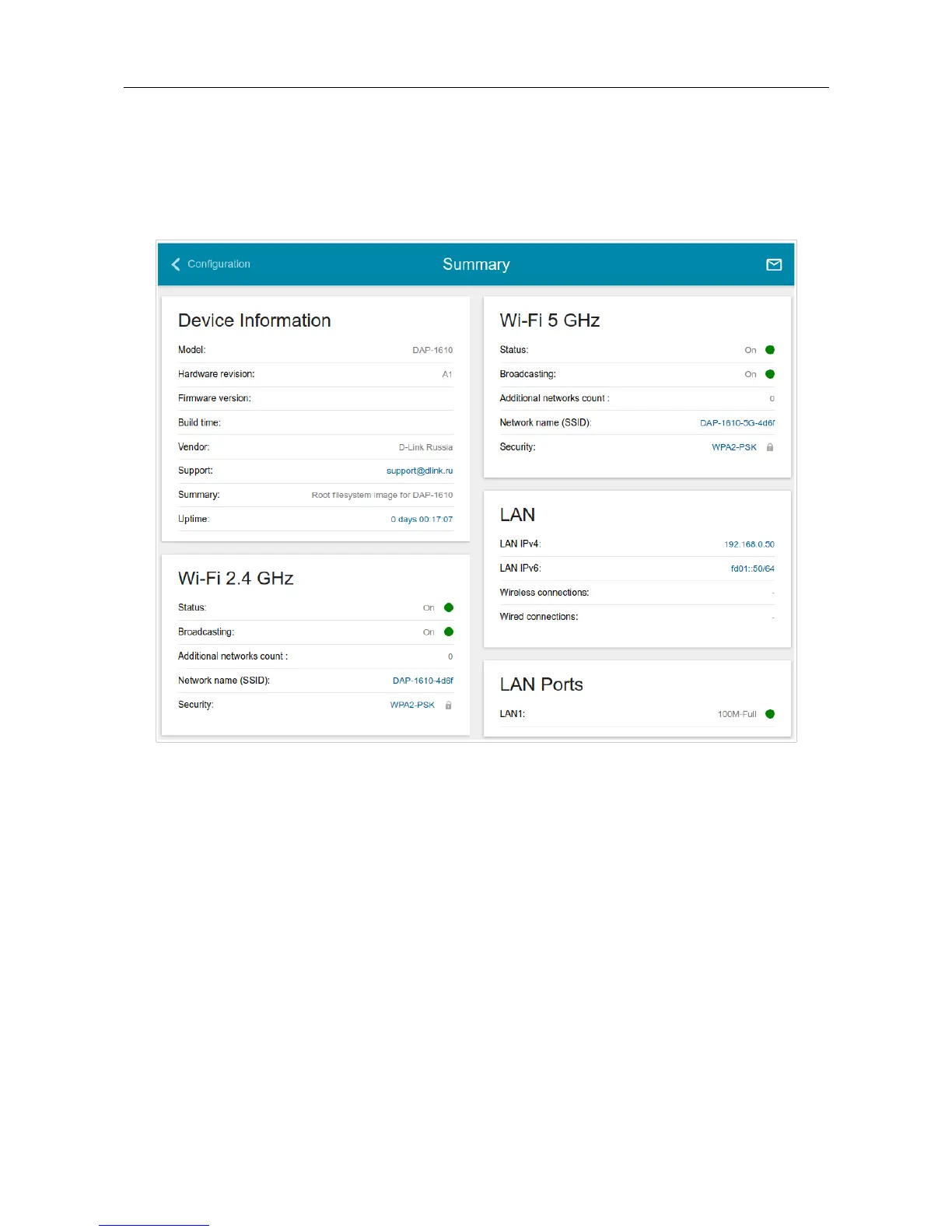

Figure 14. The summary page.
The Device Information section displays the model and hardware version of the extender, the
firmware version, and other data.
To contact the technical support group (to send an e-mail), left-click the support e-mail address.
After clicking the line, the e-mail client window for sending a new letter to the specified address
opens.
The Wi-Fi 2.4 GHz and Wi-Fi 5 GHz sections display data on the state of the device's wireless
network, its name and the authentication type, and availability of an additional wireless network in
the relevant band.
In the LAN section, the IPv4 and IPv6 address of the extender and the number of wired and
wireless clients of the device are displayed.
The LAN Ports section displays the state and data transfer mode of the device's LAN port.
Other settings of the extender are available in the menu in the left part of the page.
Page 23 of 91
