DAP-1610 AC1200 Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
Firewall
In this menu you can configure the MAC filter of the extender.
MAC Filter
On the Firewall / MAC Filter page, you can configure MAC-address-based filtering for devices
connected to the extender.

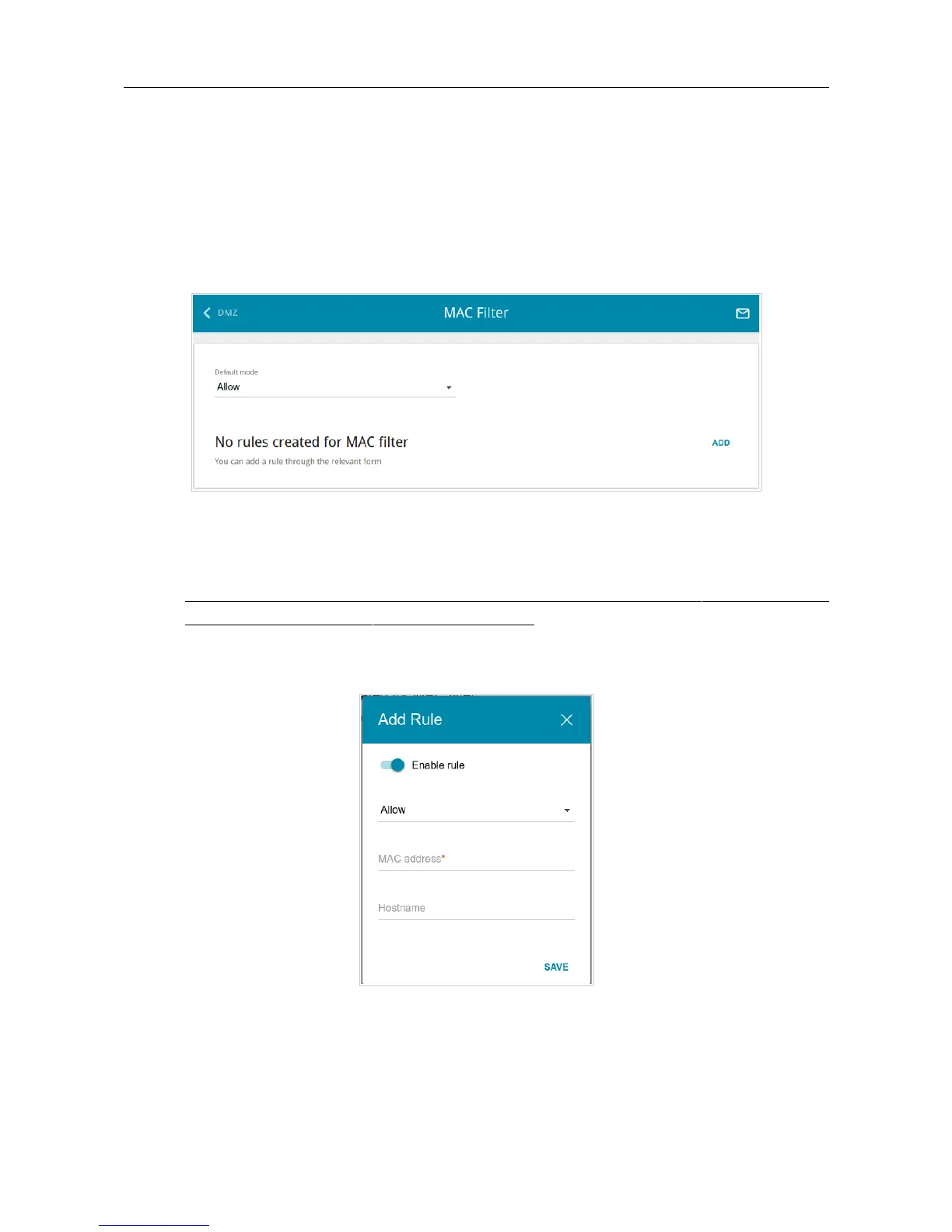

Figure 56. The Firewall / MAC Filter page.
To allow or block access to the extender or the upper router's network, select the needed action (the
Allow or Deny value correspondingly) from the Default mode drop-down list.
!
You can use the Deny mode only if an active rule which allows access to the extender or
the upper device's network is created on the page.
To create a rule (specify a MAC address of a device for which the specified filtering mode will be
applied), click the ADD button.
Figure 57. The window for adding a rule for the MAC filter.
Page 71 of 91
