DAP-1620 AC1300 MU-MIMO Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
Selecting Operation Mode
Select the needed operation mode and click the NEXT button.
Access Point or Repeater
In order to connect your device to a wired router for adding a wireless network to the existing local
network, on the Device mode page, from the Connection method list, select the
Autonomous value. Then from the Work mode list, select the Access point value. In this
mode you can change the LAN IP address, set your own settings for the wireless network in the
2.4GHz and 5GHz bands, and set your own password for access to the web-based interface of the
device.

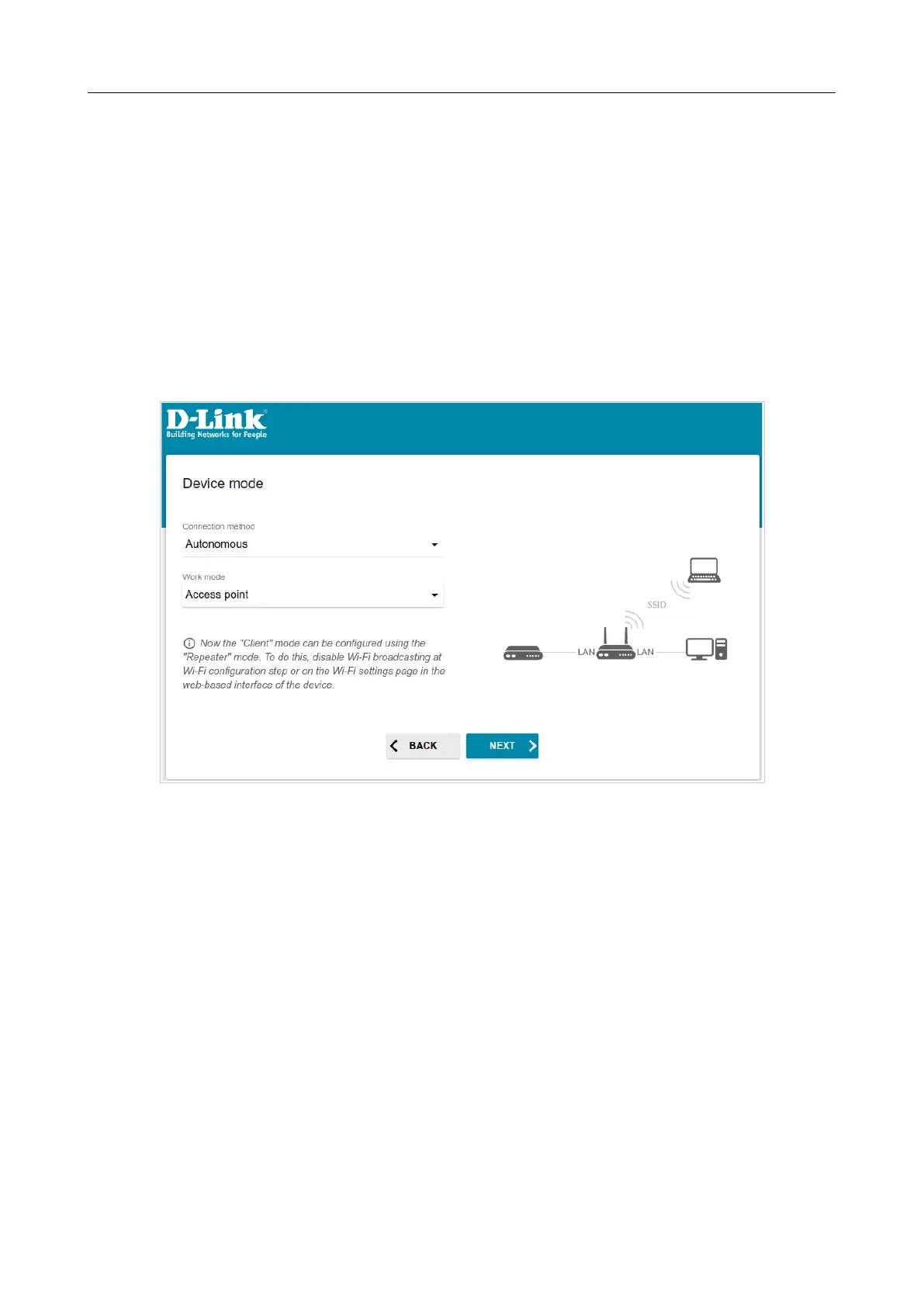

Figure 32. Selecting an operation mode. The Access point mode.
Page 39 of 125
