D-Link DAP-2695 Command Line Interface Reference Manual

802.11 b/g /n Access Point Command Line Interface Manual
5

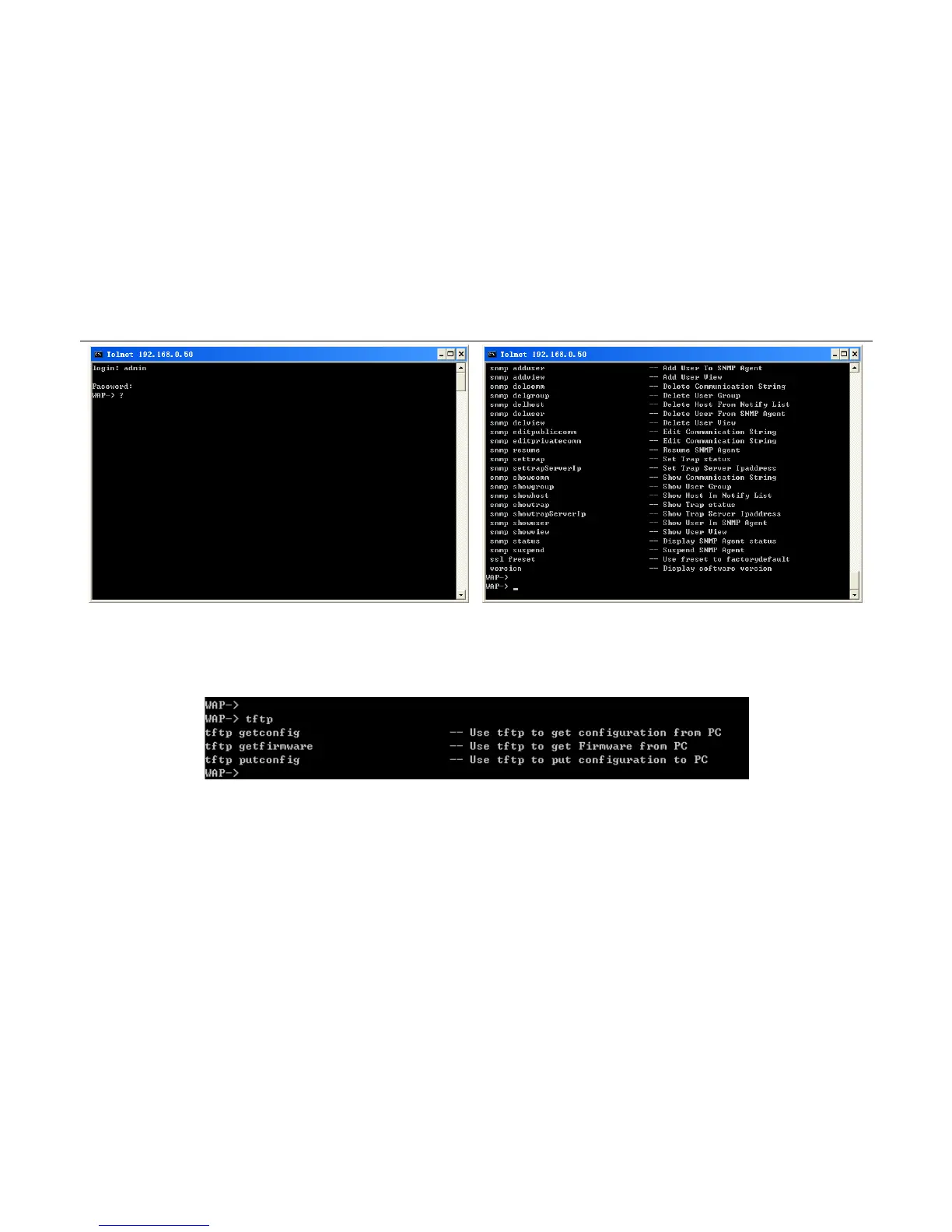

Press Enter to see a list of all the available commands. Alternatively, you may enter “help” and the press Enter, here goes the result: (picture on the right.)
When you enter a command without all of its required parameters, the CLI will prompt you with a list of possible completions. For example, if “tftp” was entered, the
following screen opens:

D-Link DAP-2695 Specifications

Operating Environment

operating temperature	0˚C to 40˚C
storage temperature	-20˚C to 65˚C
operating humidity	10%~90% (non-condensing)
storage humidity	5%~95% (non-condensing)

Power

operating voltage	48V DC +/- 10% for PoE
voltage and current for PoE	48V/0.5A

Wireless Specifications

wireless frequency range	2.4 to 2.4835 GHz and 5.15 to 5.85 GHz
antenna type at 2.4GHz	3x Detachable 4 dBi Omni antennas
antenna type at 5GHz	3x Detachable 6 dBi Omni antennas

Weight and Dimensions

length	198.8 mm
width	190 mm
height	36.5 mm
