24D-Link DCS-7010L User Manual
Section 2: Installation
Mounting the Camera
The DCS-7010L is suitable for mounting to a wall using the bracket provided.
Note: In order to use the mydlink features of this product, you will need to go through the Camera Setup Wizard.

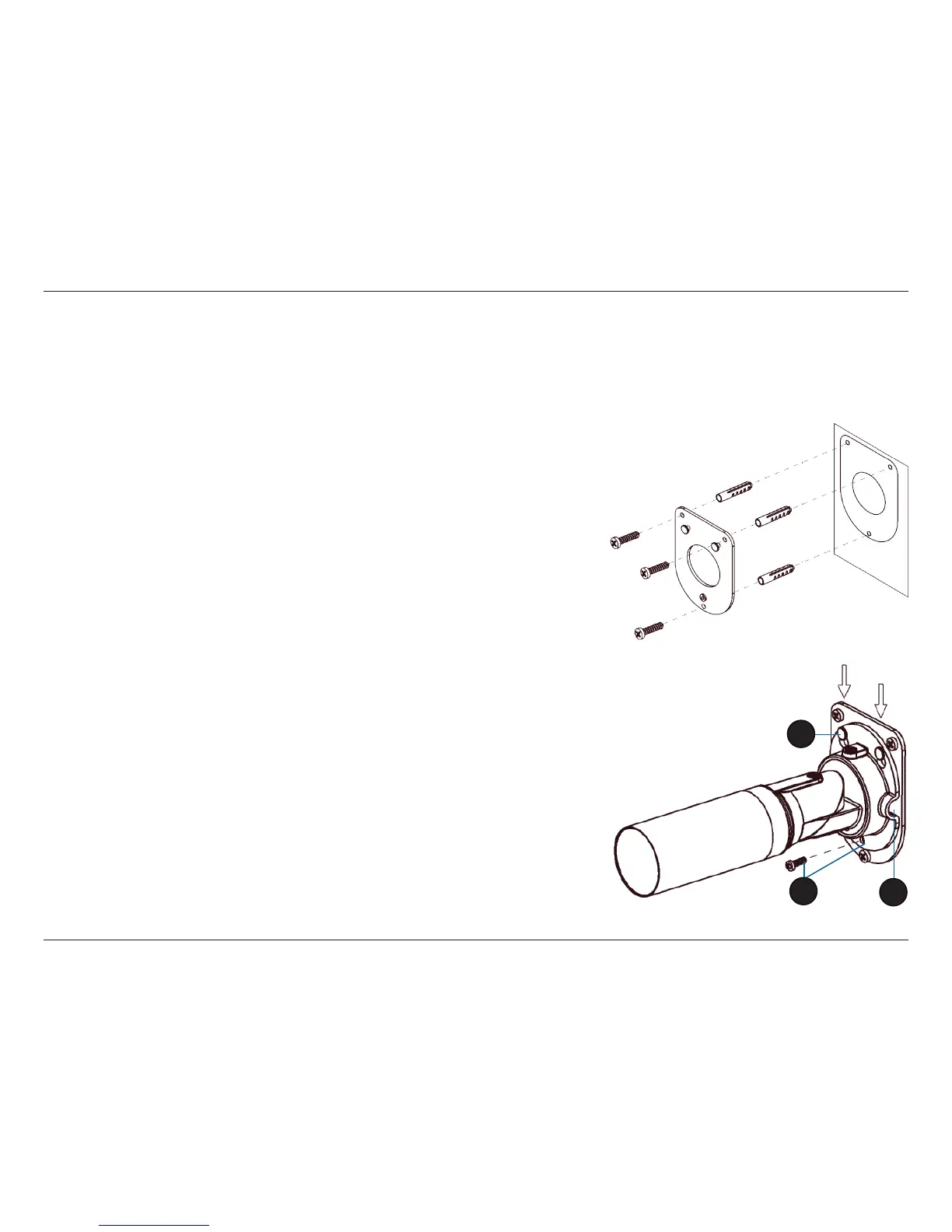

Step 1
Position the mounting bracket in the desired location.
Step 2
Mark the surface behind the mounting bracket with a pencil
Step 3
Use a 6mm drill bit to make required holes approximately 25mm deep.
Step 4
Insert wall anchors and ax the bracket using the screws provided.
Step 5
Ensure the cable is seated in the cable channel.
Step 6
Suspend the camera from the two protruding studs near the top of the mounting
bracket.
Step 7
Insert and tighten the remaining screw into the hole on the camera base.
