D-Link DCS-7010L User Manual

66D-Link DCS-7010L User Manual
Section 4: Conguration
Advanced

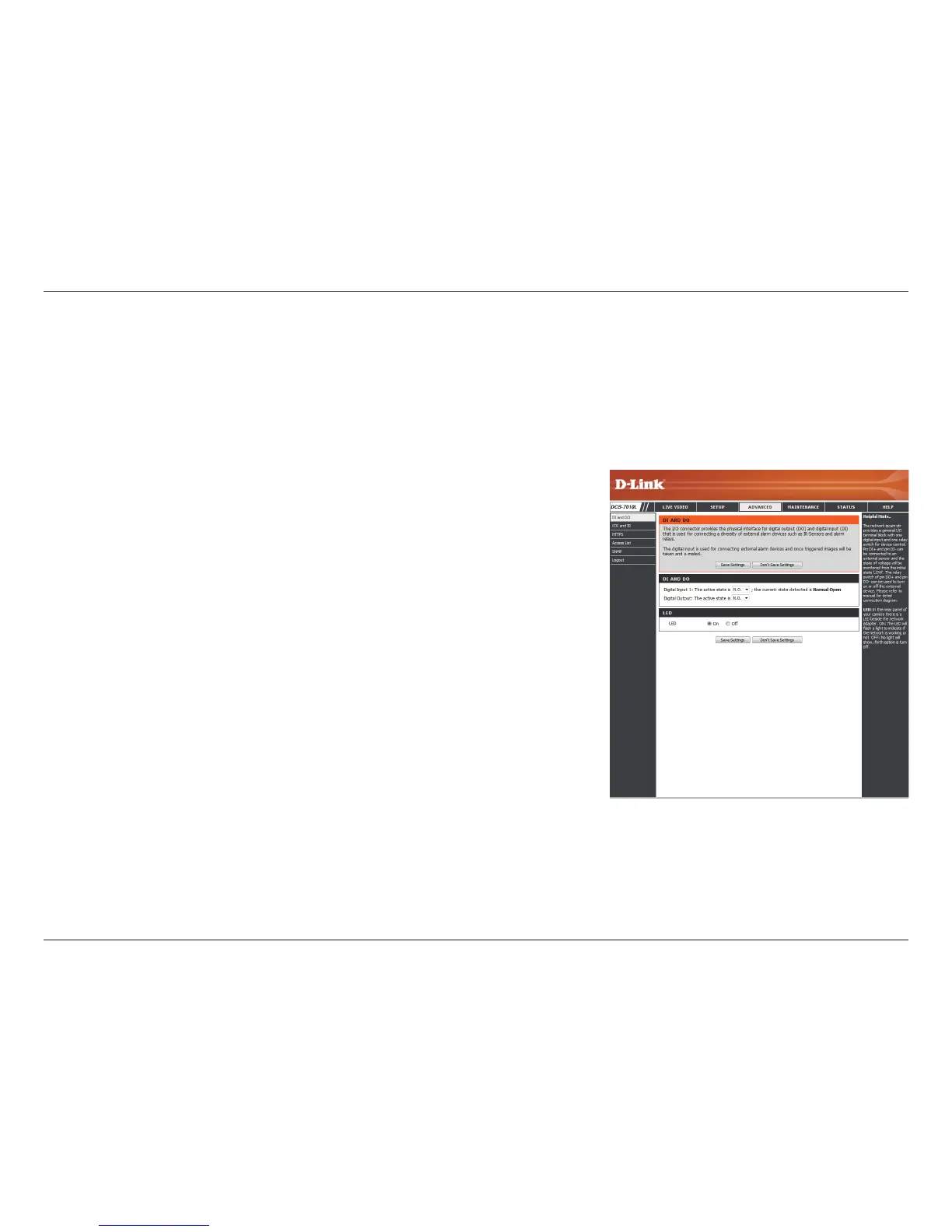

Digital Input/Output
This screen allows you to control the behavior of digital input and digital output devices. The I/O connector provides the physical interface for
digitaloutput(DO)anddigitalinput(DI)thatisusedforconnectingavarietyofexternalalarmdevicessuchasIR-Sensorsandalarmrelays.The
digital input is used for connecting external alarm devices and once triggered images will be taken and e-mailed. After making any changes, click
the Save Settings button to save your changes.
Select D/I or D/O Mode:
LED:
The camera will send a signal when an event is triggered,
depending upon the type of device connected to the DI
circuit.
N.C. stands for Normally Closed. This means that the
normal state of the circuit is closed. Therefore events are
triggered when the device status changes to "Open."
N.O. stands for Normally Open. This means that the
normal state of the circuit is open. Therefore events are
triggered when the device status changes to "Closed."
You may specify whether or not to illuminate the status
LED on the camera.

D-Link DCS-7010L Specifications

General

Maximum resolution	1280 x 720 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 800 (WXGA)
Minimum illumination	- lx
Sensor type	CMOS
Optical sensor size	1/4 \
Optical zoom	- x
Fixed focal length	4.3 mm
Security algorithms	HTTPS
IP address filtering	Yes
Compatible memory cards	SD, SDHC
LED type	IR
Night vision distance	10 m
Type	IP security camera
Certification	CE, CE LVD
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Bullet
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Audio system	2-way
Ethernet LAN	No
Cabling technology	10/100Base-T(X)
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
Power source type	PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	5.4 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-25 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Compatible operating systems	Microsoft Windows 7/Vista/XP
F-number (relative aperture)	2

Weight and Dimensions

Depth	176.5 mm
Width	65 mm
Height	80.5 mm
Weight	510 g
Diameter	44 mm
