Section 2: Installation
If you have a mydlink-enabled Cloud Router, you can take advantage of Zero Conguration. Zero Conguration automatically
congures your camera's settings for you, and adds it to your mydlink account automatically. This type of setup allows you to
set up your camera by simply plugging it in and connecting it to your router.
Connect your camera to your mydlink-enabled Cloud Router and Zero Conguration will automatically congure your DCS-7010L
and automatically add the camera to your mydlink account. After the short time it takes to do this you can remotely access
your camera from the www.mydlink.com website to manage and monitor your DCS-7010L.

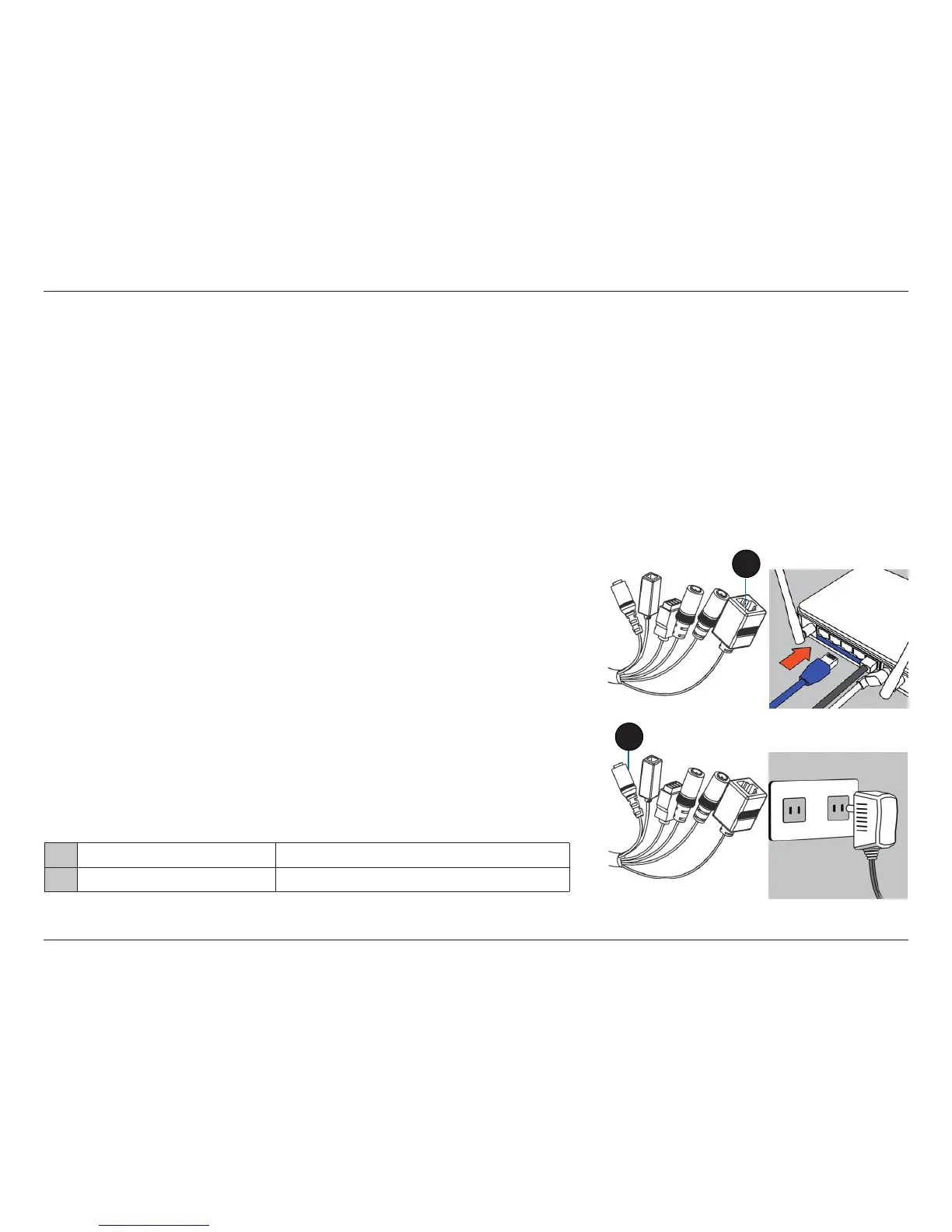

Installation
Zero Conguration Setup
Connect the Ethernet Cable
Connect the provided Ethernet cable to the cable harness Ethernet coupler .
Connect the other end of the provided Ethernet cable to your network.
Attach the External Power Supply
Attach the external power supply to the cable harness power coupler.
Connect the adapter to a wall outlet or power strip.
1
1 Ethernet Cable
Pre attached Ethernet cable
2 Power Cable
Pre attached power cable
2

D-Link DCS-7010L Specifications

General

Maximum resolution	1280 x 720 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 800 (WXGA)
Minimum illumination	- lx
Sensor type	CMOS
Optical sensor size	1/4 \
Optical zoom	- x
Fixed focal length	4.3 mm
Security algorithms	HTTPS
IP address filtering	Yes
Compatible memory cards	SD, SDHC
LED type	IR
Night vision distance	10 m
Type	IP security camera
Certification	CE, CE LVD
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Bullet
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Audio system	2-way
Ethernet LAN	No
Cabling technology	10/100Base-T(X)
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
Power source type	PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	5.4 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-25 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Compatible operating systems	Microsoft Windows 7/Vista/XP
F-number (relative aperture)	2

Weight and Dimensions

Depth	176.5 mm
Width	65 mm
Height	80.5 mm
Weight	510 g
Diameter	44 mm
