D-Link DCS-7010L User Manual

37D-Link DCS-7010L User Manual
Section 4: Conguration

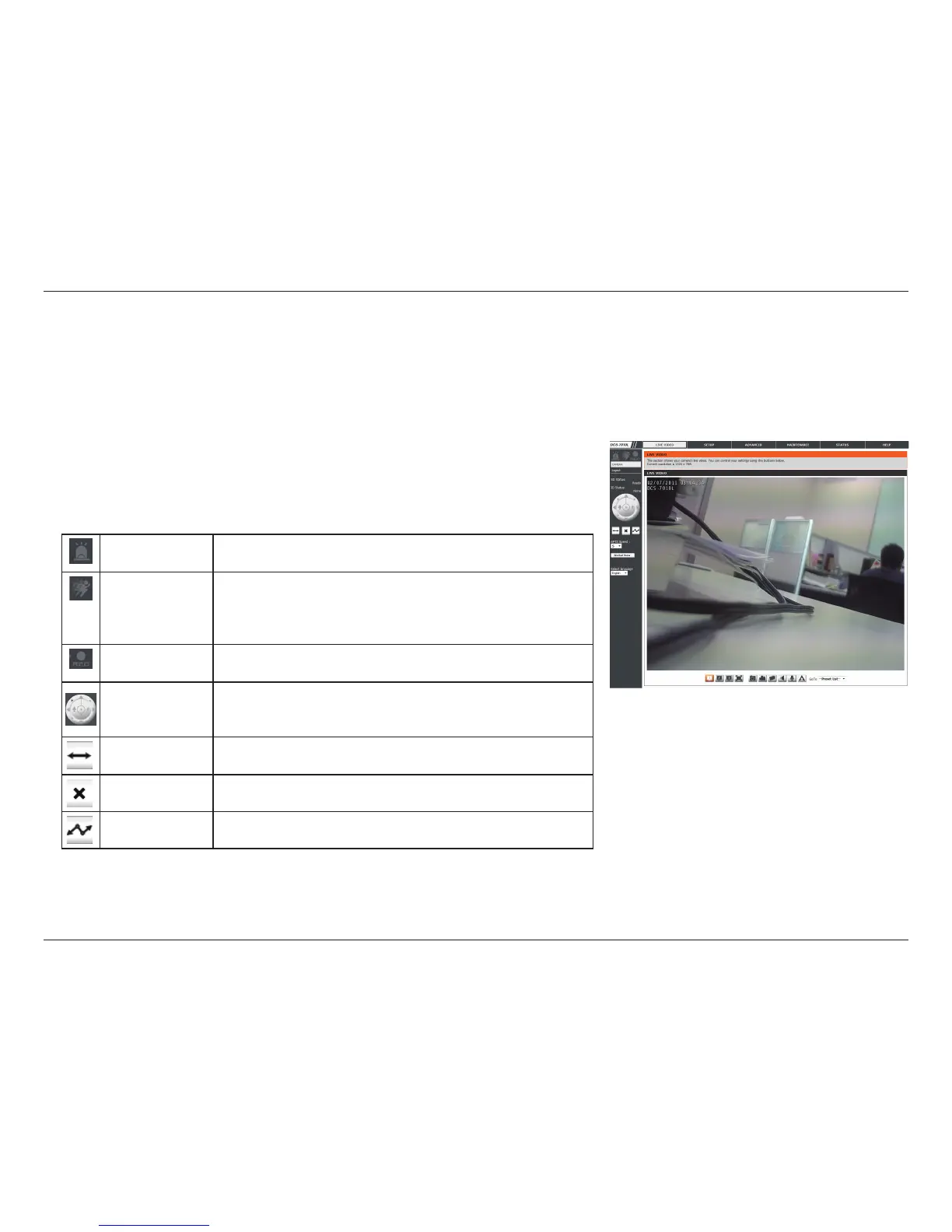

Live Video
This section shows your camera’s live video. You may select any of the available icons listed below to operate the camera. You may also select your
language using the drop-down menu on the left side of the screen.
You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.
Digital Input
Indicator
This indicator will change color when a digital input signal is
detected.
Motion Trigger
Indicator
This indicator will change color when a trigger event occurs.
Note: The video motion feature for your camera must be
enabled.
Recording
Indicator
When a recording is in progress, this indicator will change
color.
Control Pad
This control pad can be used to electronically pan, tilt, and
zoom(ePTZ)withinthecamera'spredenedviewarea,ifone
has been dened.
Auto Pan Starts the automatic panning function. The ROI will pan from
back and forth within the FOV
Stop Stops the camera ePTZ motion
Preset Path Starts the camera's motion along the predened path
You may select a value between 0 and 64. 0 is the slowest and 64 is the
fastest.
ePTZ Speed:
This option displays the status of the SD card. If no SD card has been
inserted, this screen will display the message "Card Invalid."
This option displays the status of your I/O device if a device has been
connected.
SD Status:
IO Status:

D-Link DCS-7010L Specifications

General

Maximum resolution	1280 x 720 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 800 (WXGA)
Minimum illumination	- lx
Sensor type	CMOS
Optical sensor size	1/4 \
Optical zoom	- x
Fixed focal length	4.3 mm
Security algorithms	HTTPS
IP address filtering	Yes
Compatible memory cards	SD, SDHC
LED type	IR
Night vision distance	10 m
Type	IP security camera
Certification	CE, CE LVD
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Bullet
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Audio system	2-way
Ethernet LAN	No
Cabling technology	10/100Base-T(X)
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
Power source type	PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	5.4 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-25 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Compatible operating systems	Microsoft Windows 7/Vista/XP
F-number (relative aperture)	2

Weight and Dimensions

Depth	176.5 mm
Width	65 mm
Height	80.5 mm
Weight	510 g
Diameter	44 mm
