9D-Link DCS-7010L User Manual
Section 1: Product Overview

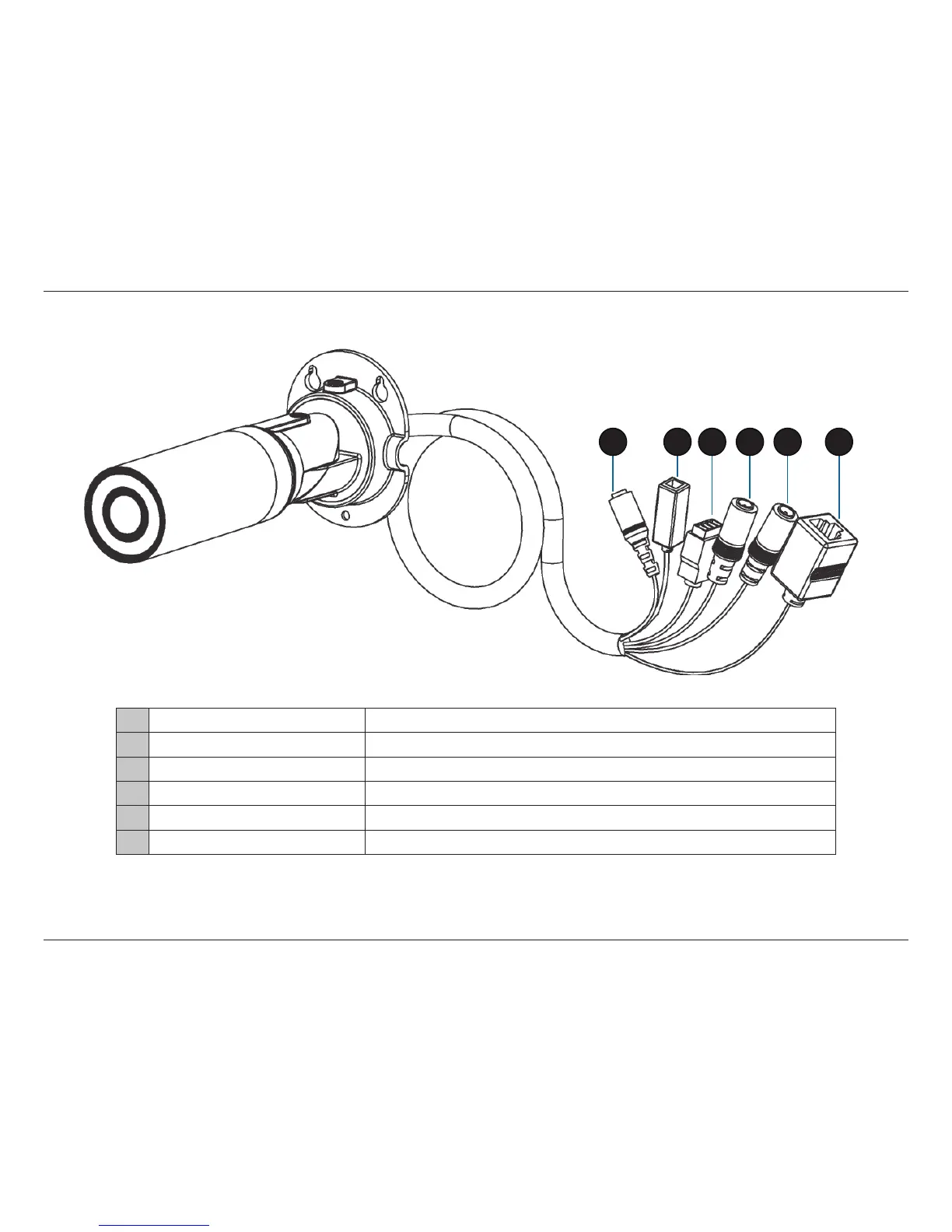

Cable Harness
1 Power Connector Power receptor for the provided power adapter
2 Reset Button
Press and hold the recessed button for 10 seconds to reset the camera
3 DI/DO Connector
I/O connectors for external devices
4 Audio Out (Green)
Connects to a speaker
5 Audio In (Red) Connects to a microphone
6 Ethernet Port
Connects to an RJ45 Ethernet cable or PoE cable to connect to your network
1 2 4 5 63
