D-Link DCS-7010L User Manual

49D-Link DCS-7010L User Manual
Section 4: Conguration
Image Setup

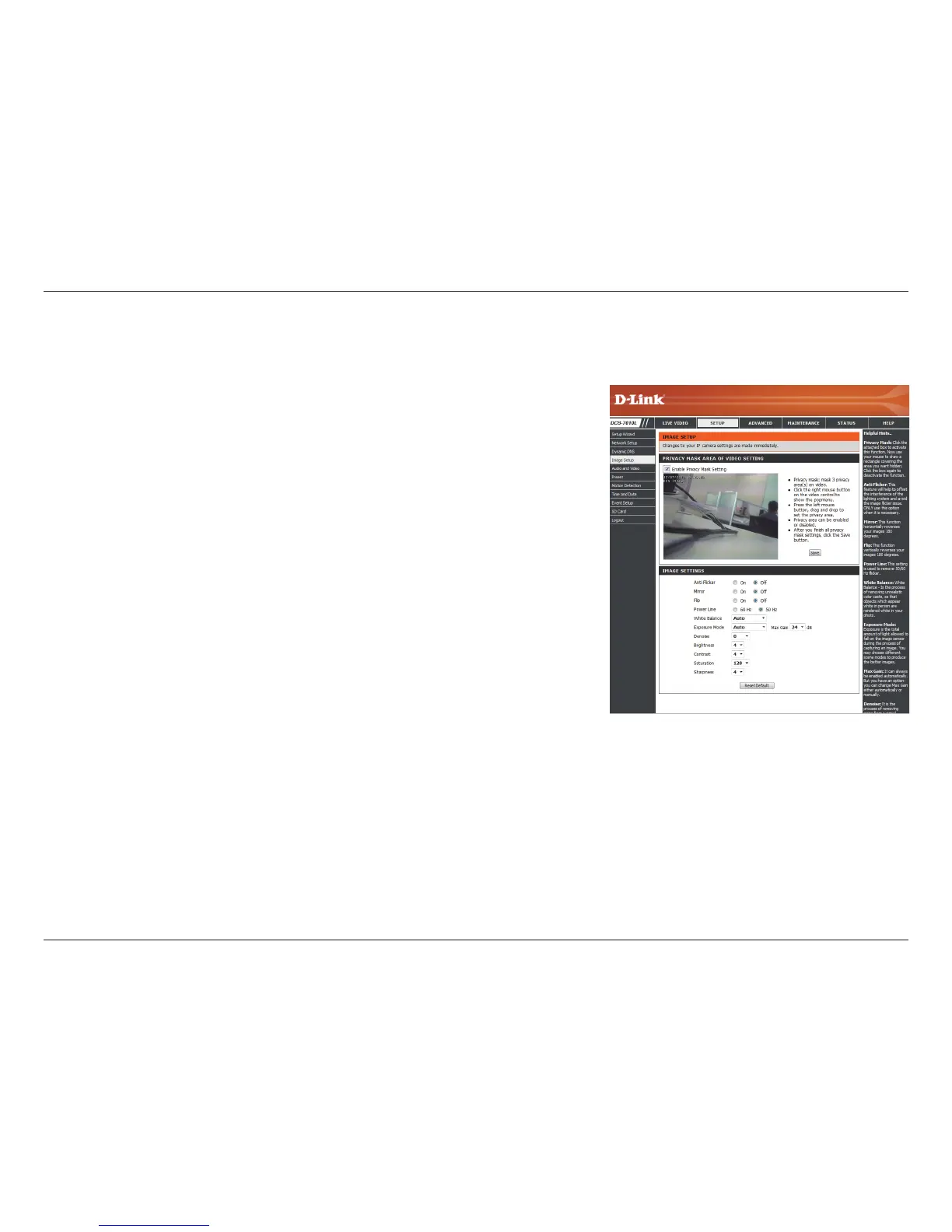

In this section, you may congure the video image settings for your camera. A preview of the image will be shown in Live Video.
Enable Privacy Mask:
Anti Flicker:
Mirror:
Flip:
Power Line:
White Balance:
The Privacy Mask setting allows you to specify up to 3
rectangular areas on the camera's image to be blocked/
excluded from recordings and snapshots.
You may click and drag the mouse cursor over the
camera image to draw a mask area. Right clicking on the
camera image brings up the following menu options:
Disable All: Disables all mask areas
Enable All: Enables all mask areas
Reset All: Clears all mask areas.
If the video ickers, try enabling this setting.
This will mirror the image horizontally.
This will ip the image vertically. When turning Flip on,
you may want to consider turning Mirror on as well.
Select the frequency used by your power lines to avoid
interference or distortion.
Use the drop-down box to change white balance settings
to help balance colors for dierent environments. You
can choose from Auto, Outdoor, Indoor, Fluorescent,
and Push Hold.

D-Link DCS-7010L Specifications

General

Maximum resolution	1280 x 720 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 800 (WXGA)
Minimum illumination	- lx
Sensor type	CMOS
Optical sensor size	1/4 \
Optical zoom	- x
Fixed focal length	4.3 mm
Security algorithms	HTTPS
IP address filtering	Yes
Compatible memory cards	SD, SDHC
LED type	IR
Night vision distance	10 m
Type	IP security camera
Certification	CE, CE LVD
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Bullet
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Audio system	2-way
Ethernet LAN	No
Cabling technology	10/100Base-T(X)
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
Power source type	PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	5.4 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-25 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Compatible operating systems	Microsoft Windows 7/Vista/XP
F-number (relative aperture)	2

Weight and Dimensions

Depth	176.5 mm
Width	65 mm
Height	80.5 mm
Weight	510 g
Diameter	44 mm
