22D-Link DCS-934L User Manual
Section 2 - Installation

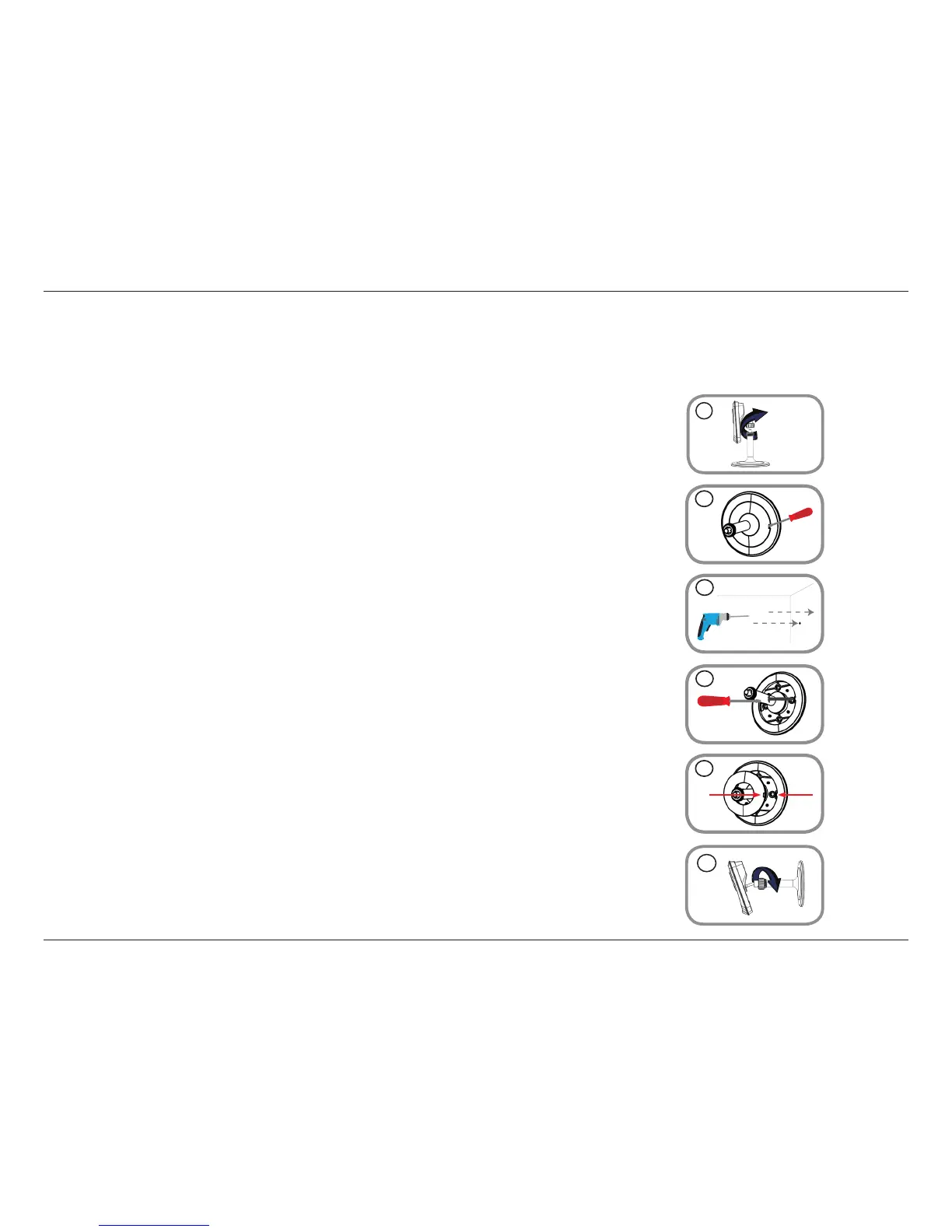

Mounting the Camera
To mount your camera on a wall or ceiling, please follow the steps below. We recommend that you congure the camera before mounting.
Step 1
The camera must be separated from the base to expose the holes in the mounting base.
Unscrew the camera head from the mounting base by turning it counterclockwise.
3
2
5
4
Step 6
Adjust the angle of the camera as desired, then tighten the collar on the camera stem to
lock it in place.
Step 5
Place the base cover on the base. Make sure to align the base cover notch with the mounting
base for future removal. Afterwards, reattach the camera head onto the mounting base.
Step 4
Position the mounting base over the holes that you drilled, and align the mounting base
holes with the holes in the wall. Use the supplied screws to attach the mounting base to
the surface of the wall.
Step 3
Depending on the material of the wall or ceiling, use a 6mm drill bit to drill two holes, 25mm
deep, where you marked. If the wall is made out of concrete, after drilling the holes, insert
the plastic anchors to support the screws.
Step 2
Use a athead screwdriver to remove the base cover from the mounting base. Place the
mounting base where you want to position the camera and use a pencil to mark the holes.
1
6
