DES-3010F/DES-3010FL/DES-3010G/DES-3018/DES-3026 Fast Ethernet Switch Manual
STP Bridge Global Settings
To open the following window, open the Spanning Tree folder in the L2 features menu and click the STP Bridge Global
Settings link.

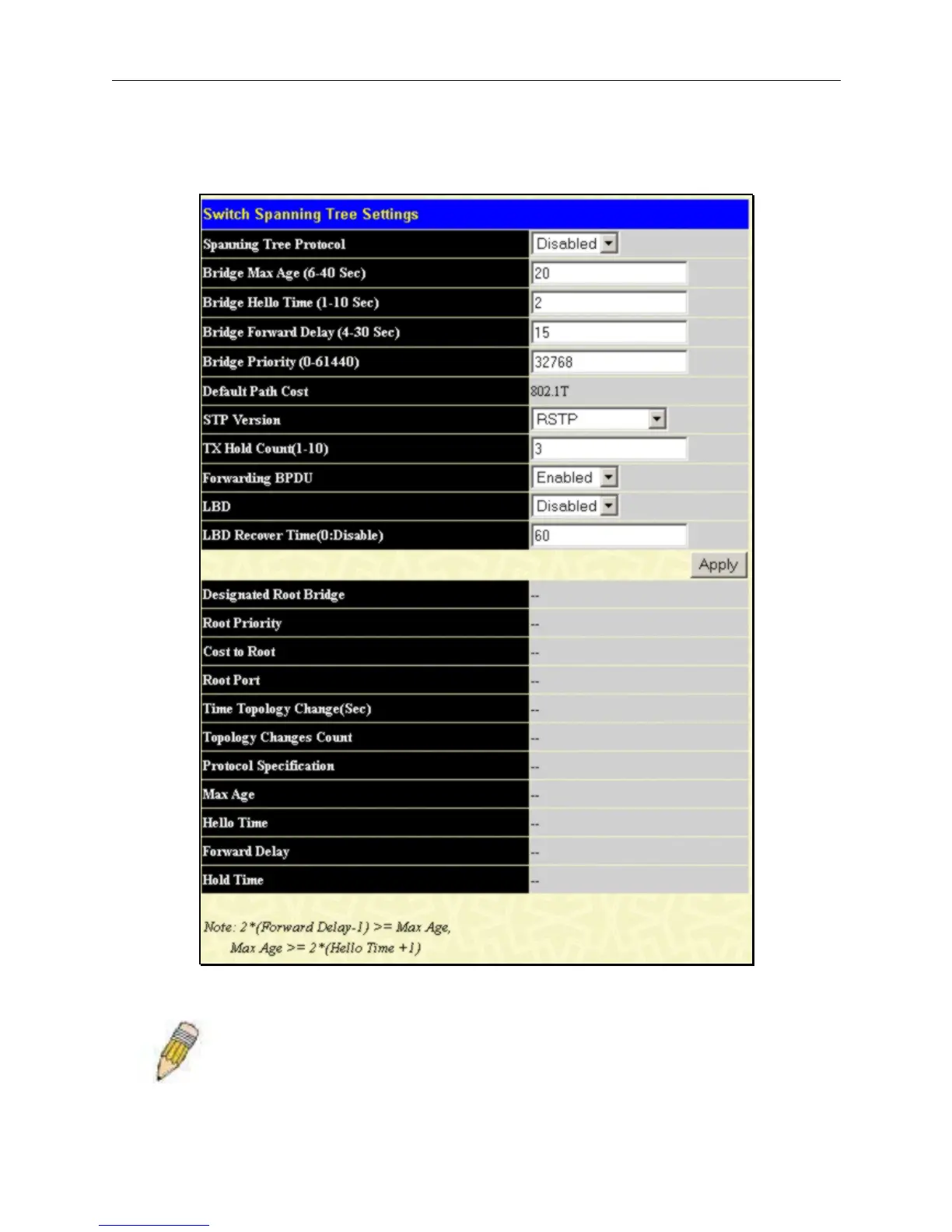

Figure 7- 14. STP Bridge Global Settings
NOTE: The Hello Time cannot be longer than the Max. Age. Otherwise, a configuration
error will occur. Observe the following formulas when setting the above parameters:
Max. Age ≤ 2 x (Forward Delay - 1 second)
Max. Age ≥ 2 x (Hello Time + 1 second)
88
