DES-3010F/DES-3010FL/DES-3010G/DES-3018/DES-3026 Fast Ethernet Switch Manual

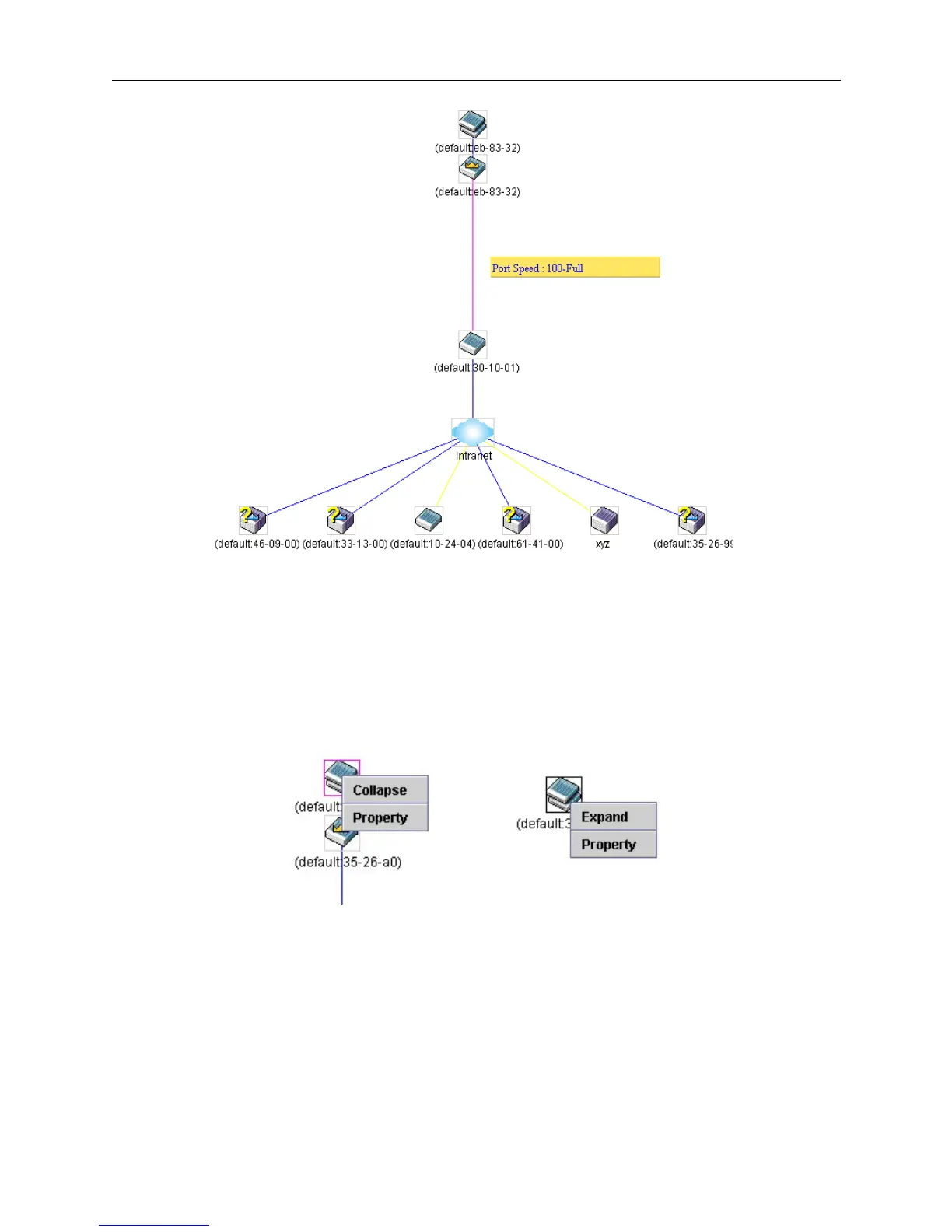

Figure 6- 37. Port Speed Utilizing the Tool Tip
Right Click
Right clicking on a device will allow the user to perform various functions, depending on the role of the Switch in the SIM
group and the icon associated with it.
Group Icon
Figure 6- 38. Right Clicking a Group Icon
The following options may appear for the user to configure:
Collapse - to collapse the group that will be represented by a single icon. •
•
•
Expand - to expand the SIM group, in detail.
Property - to pop up a window to display the group information.
63
