DES-3010F/DES-3010FL/DES-3010G/DES-3018/DES-3026 Fast Ethernet Switch Manual
Rear Panel Description
The rear panels of these switches contain an AC power connector.

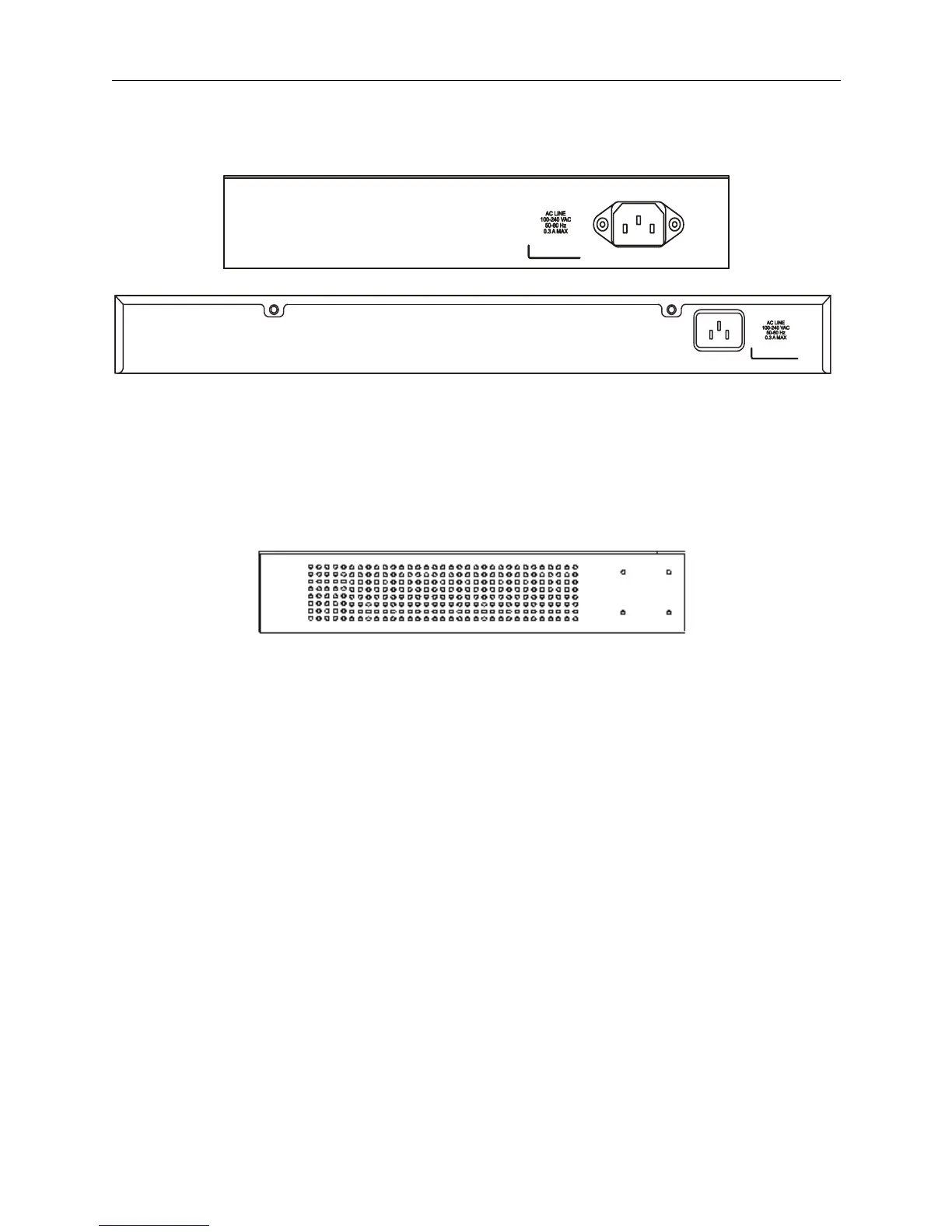

Figure 1- 5. Rear Panel of the DES-3010F/FL/G and DES-3018/DES-3026
Side Panel Description
Both panels of the Switch contain a heat vent used to dissipate heat. Do not block these openings, and leave at least 6
inches of space at the rear and sides of the Switch for proper ventilation. Be reminded that without proper heat dissipation
and air circulation, system components might overheat, which could lead to system failure.
Figure 1- 6. Side panel view
6
