Packet Size
The Web Manager allows packets received by the Switch, arranged in six groups and classed by size, to be viewed as
either a line graph or a table. Two windows are offered. To select a port to view these statistics for, select the port by using
the Port pull down menu. The user may also use the real-time graphic of the Switch at the top of the web page by simply
clicking on a port.

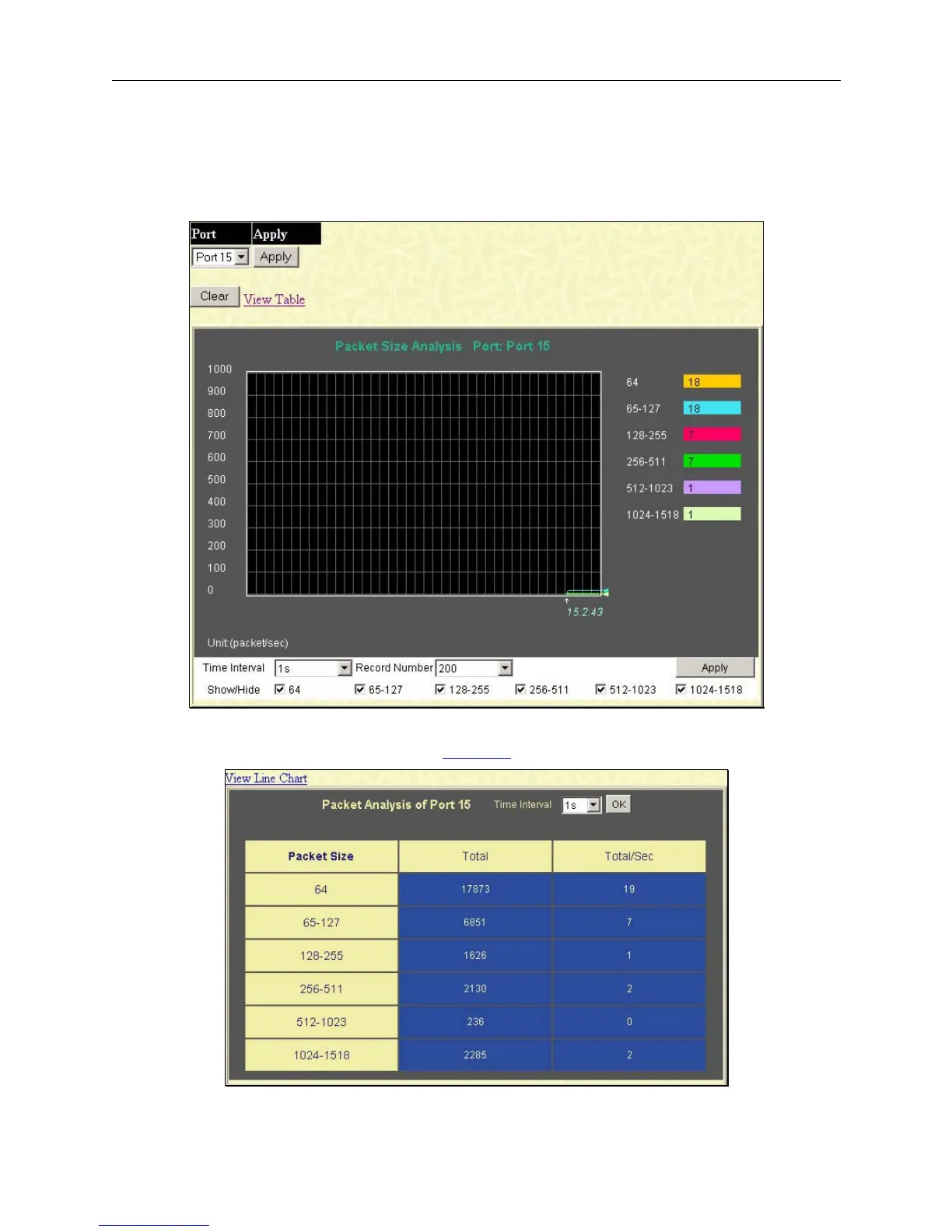

Figure 11- 13. Rx Size Analysis window (line graph)
To view the Packet Size Analysis Table, click the link View Table
, which will show the following table:
Figure 11- 14. Rx Size Analysis window (table)
