1.3. NetDefendOS State Engine Packet Flow
The diagrams in this section provide a summary of the flow of packets through the NetDefendOS
state-engine. There are three diagrams, each flowing into the next. It is not necessary to understand
these diagrams, however, they can be useful as a reference when configuring NetDefendOS in
certain situations.

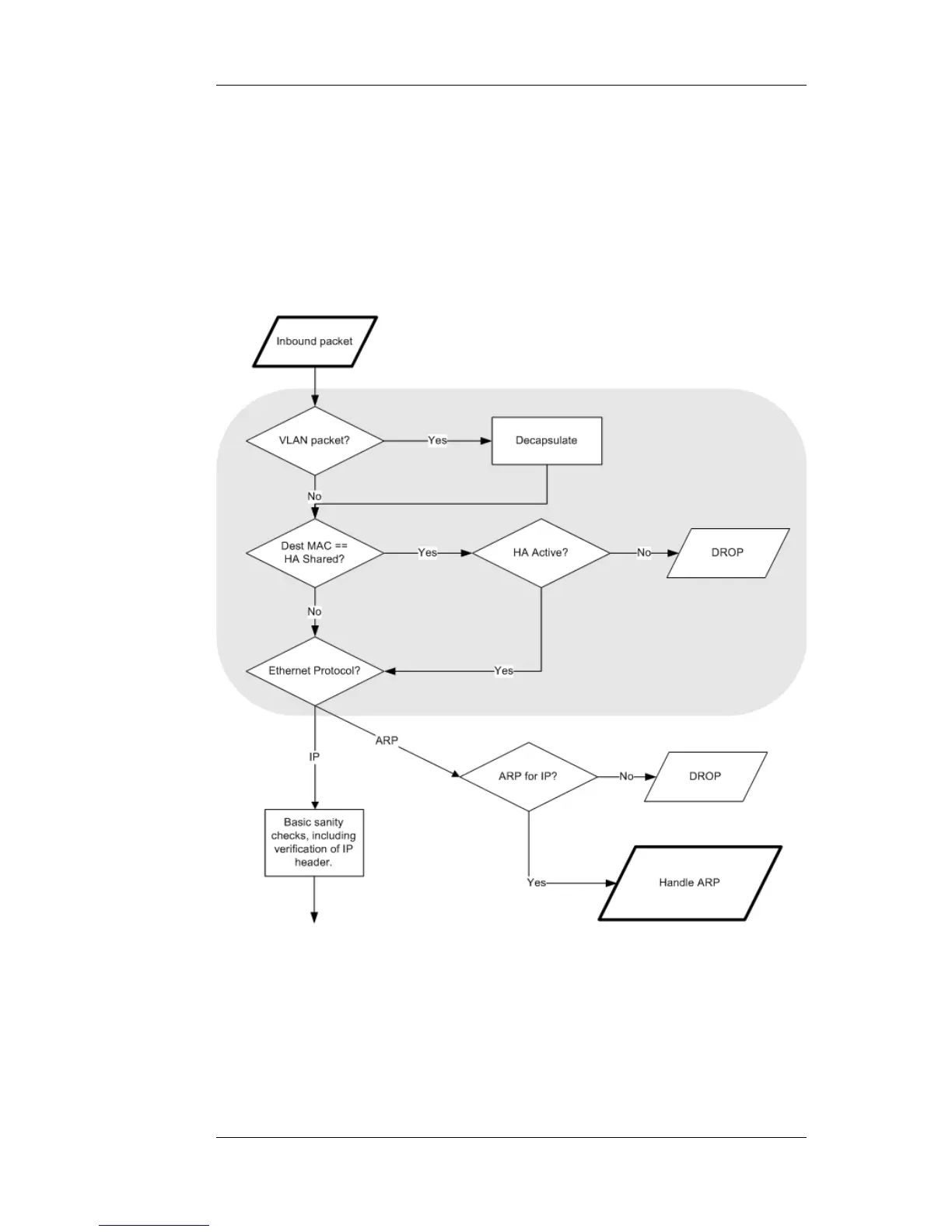

Figure 1.1. Packet Flow Schematic Part I
The packet flow is continued on the following page.
1.3. NetDefendOS State Engine Packet
Flow
Chapter 1. NetDefendOS Overview
24
To Next Page
