6D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual
Section 1 - Product Overview
Hardware Overview

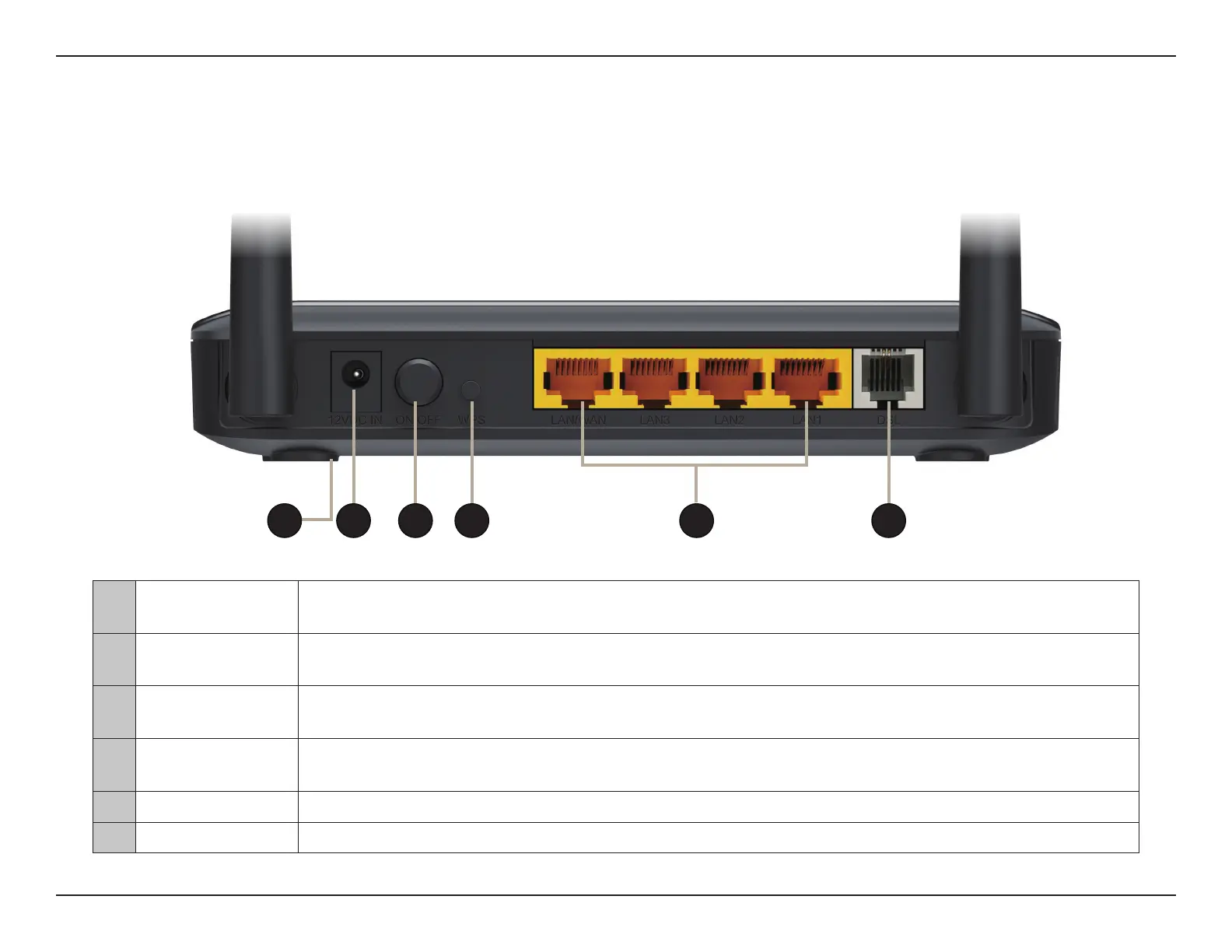

Back
1 Reset Button
To reset the DSL-124 to the default settings, insert a paperclip into the hole on the bottom of the device
located near the label and wait several seconds.
2 Power Connector Connector for the supplied power adapter.
3 Power Button Press to power the DSL-124 on or o.
4 WPS Button Press to start the WPS process and automatically create a secure connection to a WPS client.
5 LAN Ports (1-4) Connects Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.
6 DSL Port Connects to an DSL-enabled telephone line.
532 4 61

D-Link DSL-124 Specifications

General

Wireless Standard	802.11b/g/n
Frequency Band	2.4GHz
LAN Ports	4 x 10/100Mbps
Security	WPA/WPA2
Antenna	2 x External Antennas
Wired Ports	1 x RJ-11 ADSL port
ADSL Standards	ADSL2/2+
