120D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual

Section 4 - Conguration

Diag Test

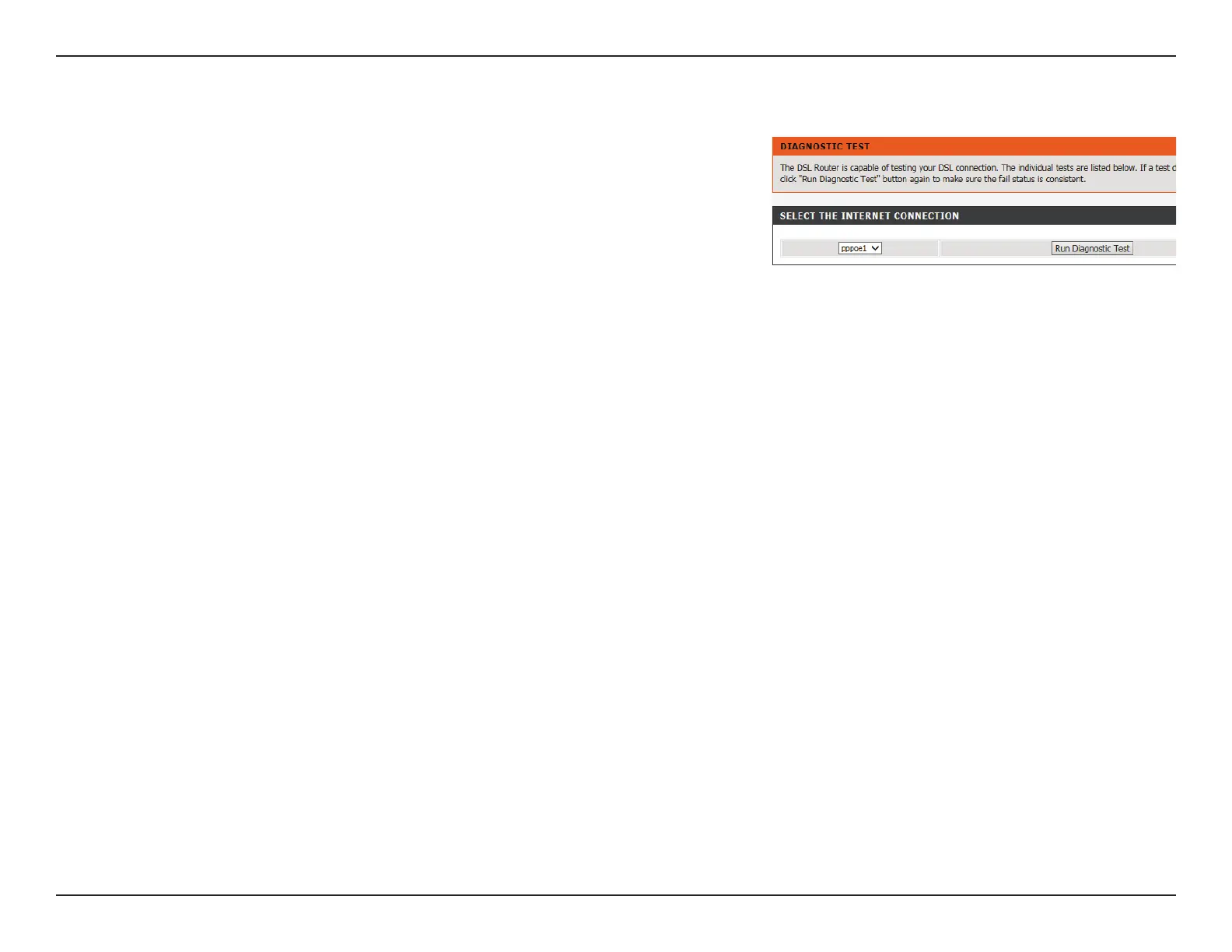

This page is used to test the connection to your local network, the connection to your

DSL service provider, and the connection to your Internet service provider. Select your

Internet Connection and click Run Diagnostic Test to run the diagnostics tests.
