D-Link DWL-2100AP Command Line Interface Reference Manual

802.11 b/g Access Point Command Line Interface Manual
3

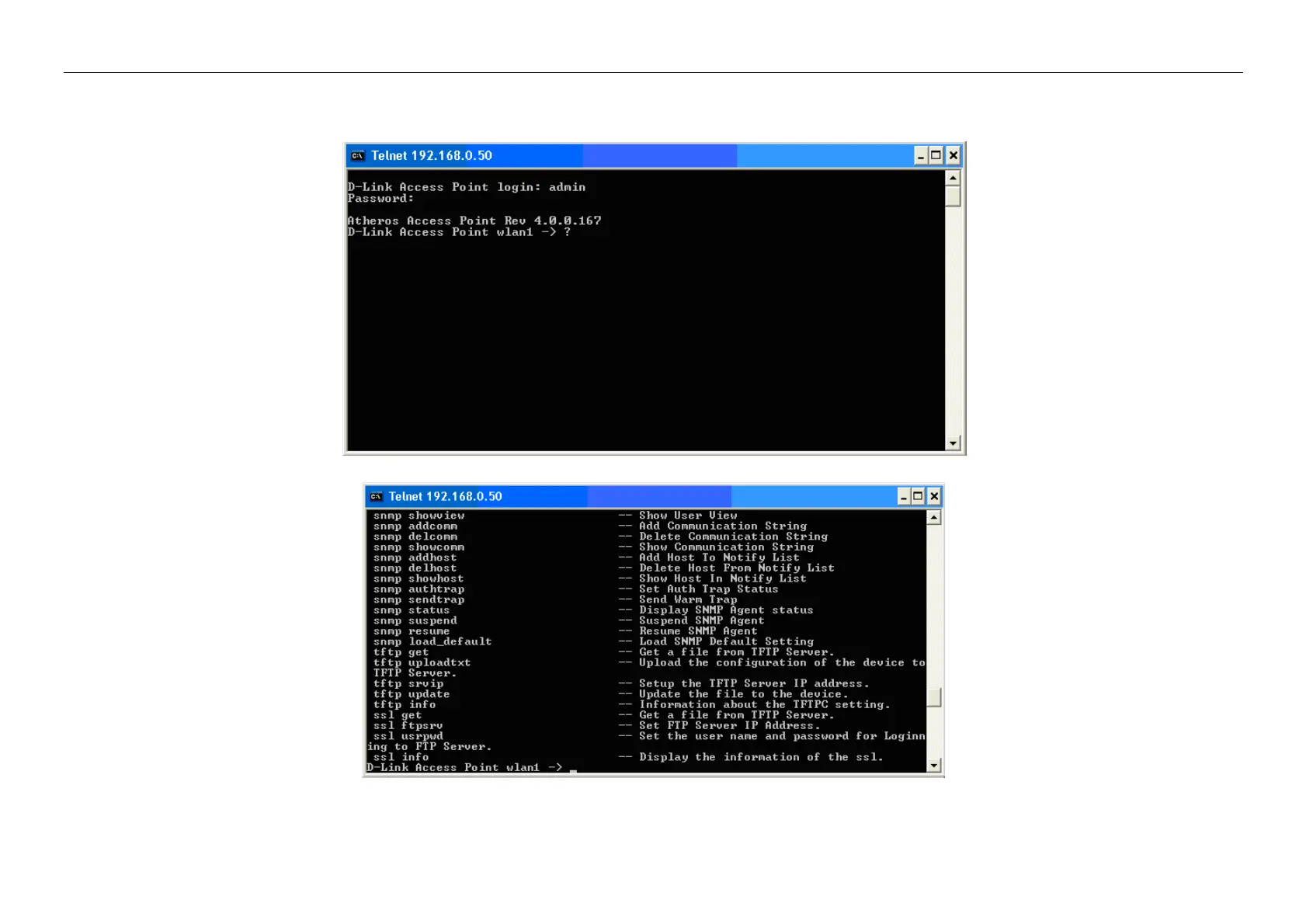

There are a number of helpful features included in the CLI. Entering the ¡?¡ command and then pressing Enter will display a list of all of the top-level commands. The same information
can also be displayed by entering ¡help¡.
Press Enter to see a list of all the available commands. Alternatively, you may enter ¡help¡ and the press Enter.
When you enter a command without all of its required parameters, the CLI will prompt you with a list of possible completions. For example, if ¡tftp¡ was entered, the following screen
opens:

D-Link DWL-2100AP Specifications

General

Frequency Band	2.4 GHz
Data Transfer Rate	54 Mbps
Security	WEP, WPA, WPA2
LAN Port	1 x 10/100Base-TX (RJ-45)
Device Type	Wireless Access Point
Form Factor	External
Data Link Protocol	IEEE 802.11b, IEEE 802.11g
Antenna Qty	1
Interface	1 x 10Base-T/100Base-TX - RJ-45
Power Supply	External power adapter
Wireless Standard	IEEE 802.11b/g
Antenna	Detachable
Compliant Standards	IEEE 802.11b, IEEE 802.11g
Encryption Algorithm	WEP, WPA, WPA2
Authentication Method	RADIUS
Features	MAC address filtering
Operating Modes	Access Point, Repeater
