2.1.3 Enable Global Routing
You need to enable the routing mode to allow the switch to operate as a L3 device in this scenario.

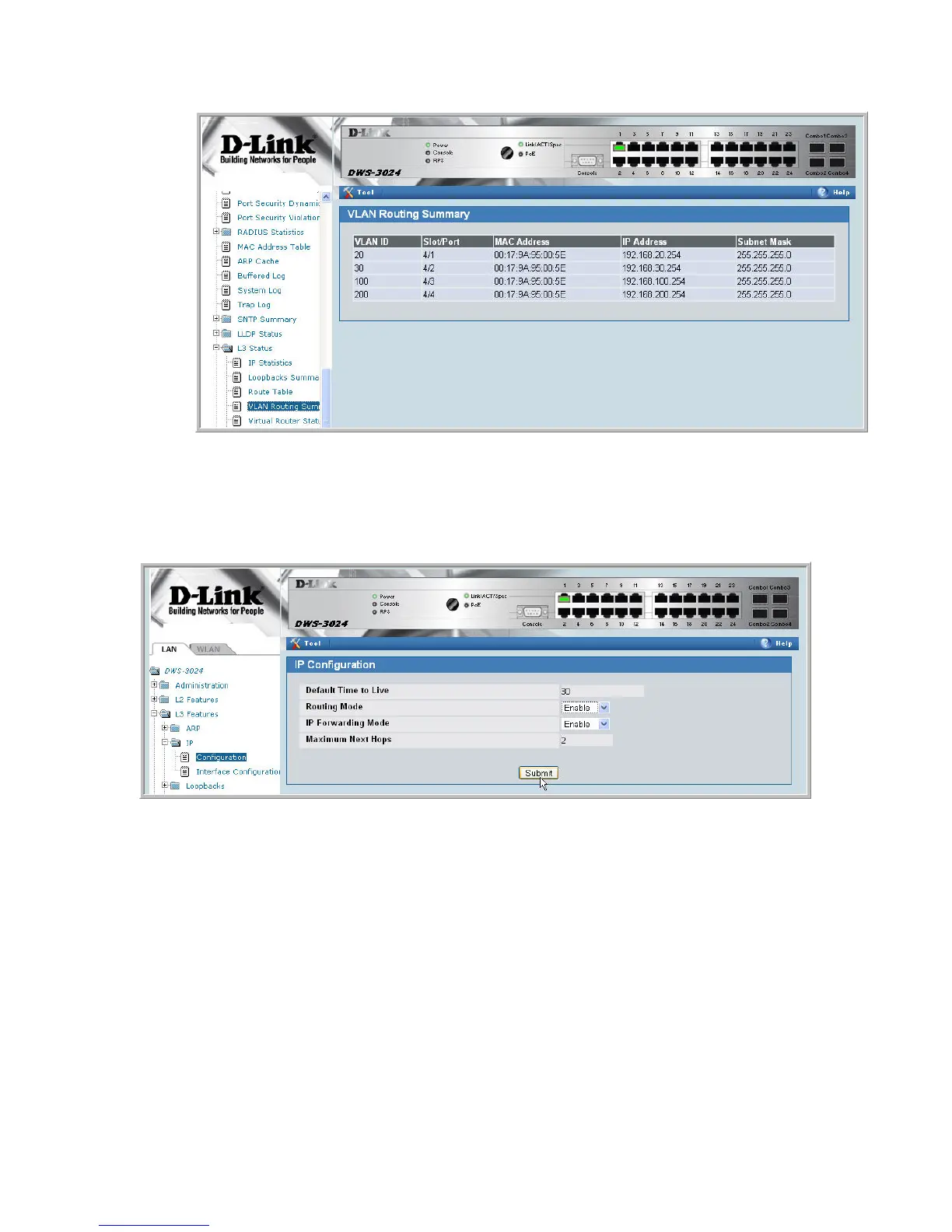

To do this, navigate to the L3 Features Æ IP Æ Configuration page. Select Enable from the
Routing Mode drop-down menu and click Submit.
2.1.4 Configure Static Routing
Since all routes are local to the switch, you do not need to configure any static routes for
this scenario.
2.1.5 Configure the Loopback Interface
When routing is enabled, you should create a Loopback interface for the wireless
functions. The loopback interface isolates the wireless functions from other switching and
routing functions that the switch might use. A key benefit to the loopback interface is that it stays
up independent of the physical port status. The loopback interface is created on its own subnet
and static routes must be configured to allow the rest of the network to get to it.
