9D-Link DHP-1220AV User Manual
Section 2 - Installation
Hardware Installation
Power
Plug the DHP-1220AV into an AC wall outlet where you want to extend your network and press the power button. The Power LED on the DHP-1220AV
will turn on to indicate it is receiving power. This may take up to 60 seconds.
Plug in the Ethernet Cable
Connect one end of the supplied CAT5 Ethernet cable to the Ethernet port on the DHP-1220AV and the other end of the cable to your Cable or DSL
modem’s Ethernet port.
Connect to Your Existing Network
Press the Simple Connect Button on the DHP-1220AV for 3 seconds. Then, press the Simple Connect Button on the existing Powerline AV device
for 3 seconds. This must be done within two minutes after pressing the Simple Connect Button on the DHP-1220AV. The Powerline devices will
reboot. Read the installation advice on the next page, and continue to “Conguration” on page 12.
Note: Network connectivity is conrmed when the Powerline LED indicators on both Powerline devices are steadily lit. This will
indicate that your network is now secure.
A minimum of two Powerline devices (your DHP-1220AV and another pre-existing device or a DHP-W220AV) are required to
create a Powerline network.

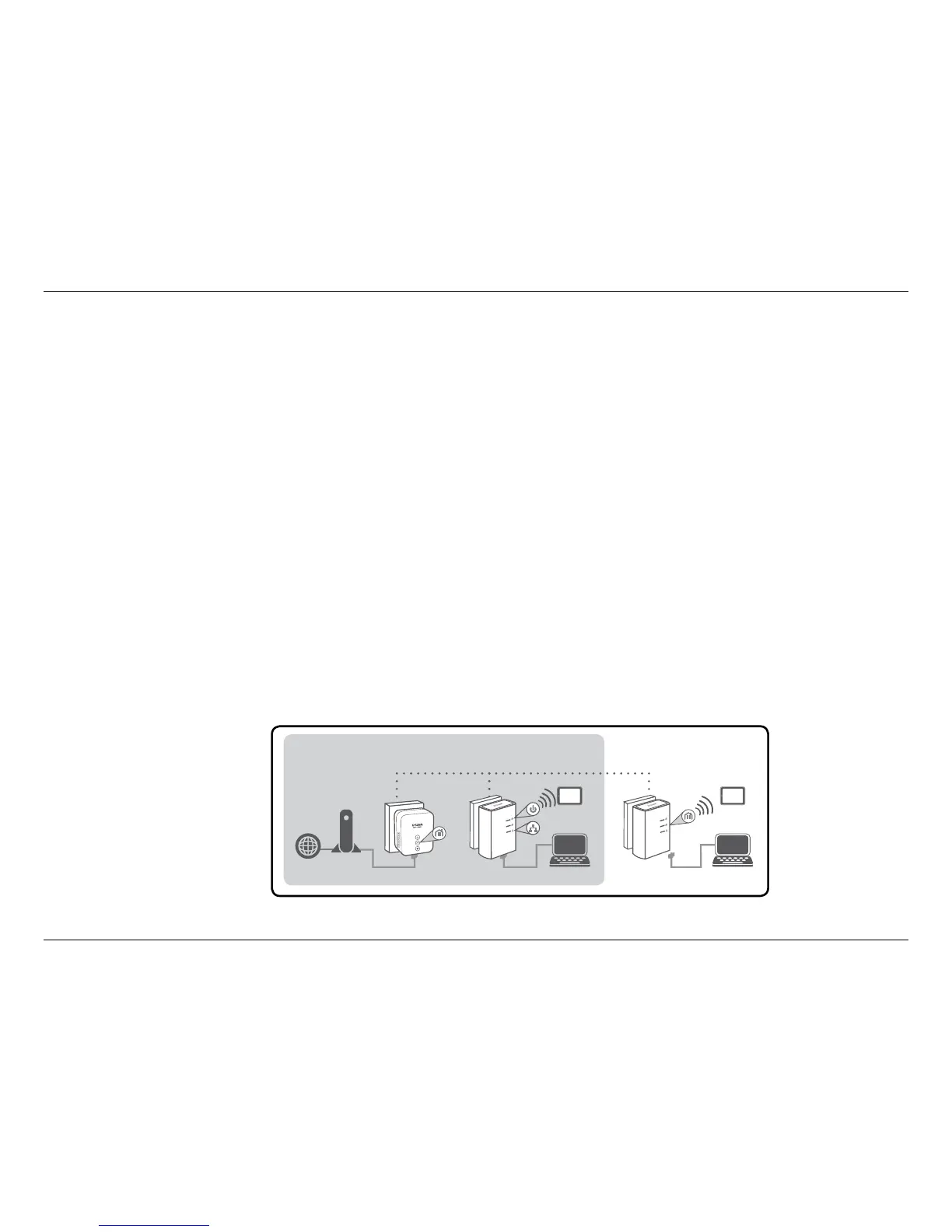

ROOM A ROOM B ROOM C
HomePlug
AV Device
HomePlug
AV Device
DHP-1220AV
ModemInternet
Notebook Notebook
iPad iPad

D-Link N150 Specifications

General

AC input	100 - 240 V AC, 50/60 Hz
ethernet	10/100 Mbps
WLAN	Up to 150 Mbps
powerline	Up to 200 Mbps
frequency range	2.4 GHz to 2.497 GHz
operating temperature	0 to 40 °C (32 to 104 °F)
storage temperature	-20 to 65 °C (-4 to 149 °F)
humidity operation	10% to 90% non-condensing
humidity storage	5% to 95% non-condensing

Weight and Dimensions

dimensions	73 x 58 x 37 mm (2.87 x 2.28 x 1.46 inches)
weight	96 grams (3.39 ounces)
