To define the IPv4 ACL Protocol ID profile, Select IPv4 ACL with Protocol ID and click Select button. The
following window displays:

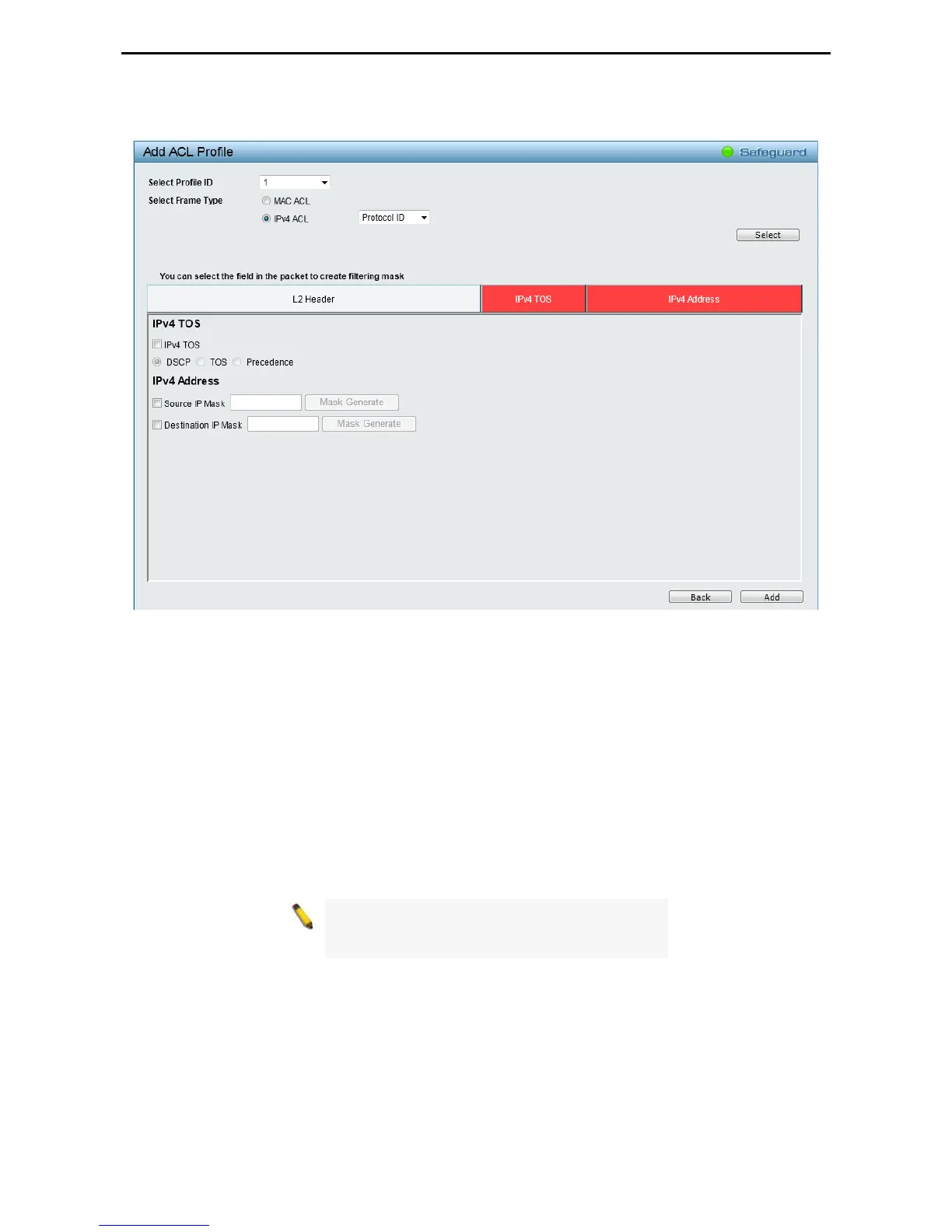

Figure 4.92 – ACL > Access Profile List > Add ACL Profile (IPv4 ACL Protocol ID)
The Add ACL Profile IPv4 Protocol ID contains the following fields:
IPv4 TOS: Select this option to include IPv4 type of service parameters in this profile.
DSCP – Select this option to use the DSCP field for IPv4 TOS.
TOS – Select this option to use the type of service (TOS) field for IPv4 TOS.
Precedence – Select this option to use the precedence field for IPv4 TOS.
Source IP Mask: Defines the range of source IP addresses, relevant to the ACL rules. (0=ignore, 1=check).
For example, to set 176.212.XX.XX, use mask 255.255.0.0.
Destination IP Mask: Defines the range of destination IP addresses, relevant to the ACL rules. (0=ignore,
1=check). For example, to set 176.212.XX.XX, use mask 255.255.0.0.
Click Add button to add the ACL profile. Click Back to go back to the previous window.
NOTE: A combination of one or several filtering
window updates with the relevant field(s).
2) Selecting the field of interest will display the related columns in the lower part of the page. Enter the
filtering mask and click Apply when done. A filtering mask is to specify the digit that you want to check. For
example, if you want to check a network of 192.168.1.0/24, then you should enter the IP mask as
255.255.255.0.
