ELECTRICAL INSTALLATION
1. Open the junction box on the left end of the case using a #2
Phillips screwdriver. Install electrical connections that apply
to your unit. Make sure to review the wiring diagram for
proper hook up. Replace the junction box cover.
NOTE: Must be installed in accordance with the
requirements of the Local Building Codes, the Canadian
Electrical Code (CEC), CAN/CSA C22.1 and the National
Electric Code (NEC), NFPA 70.
2. Test installation by running screen up and down a few times.
Be prepared to stop screen should any objects obstruct the
movement of the screen. To prevent damage to the motor,
the standard duty cycle is 1 minute on and 3 minutes off.

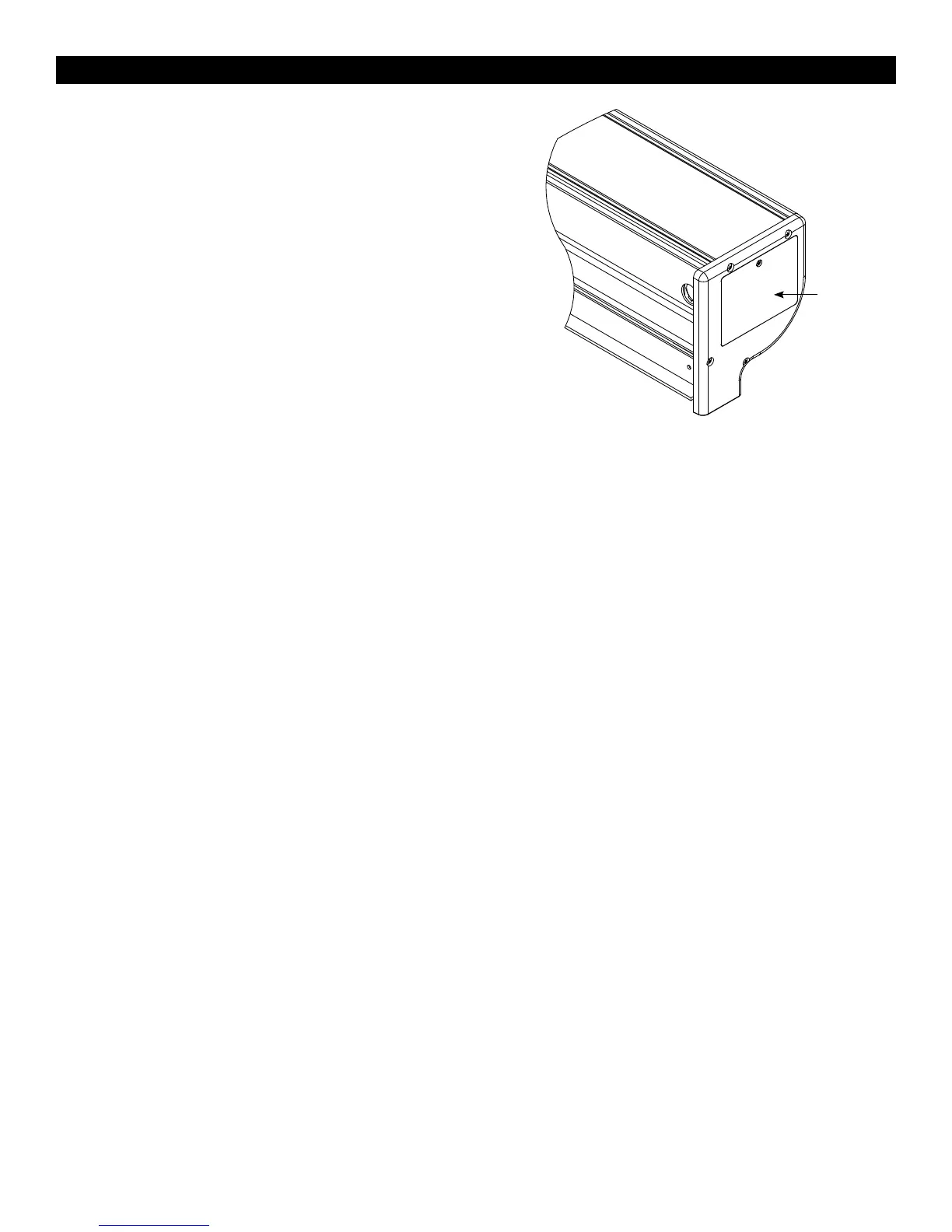

Figure 5
Junction
Box Cover
