Dimension Specifications
daCor builT-in refrigeraTor serviCe manual

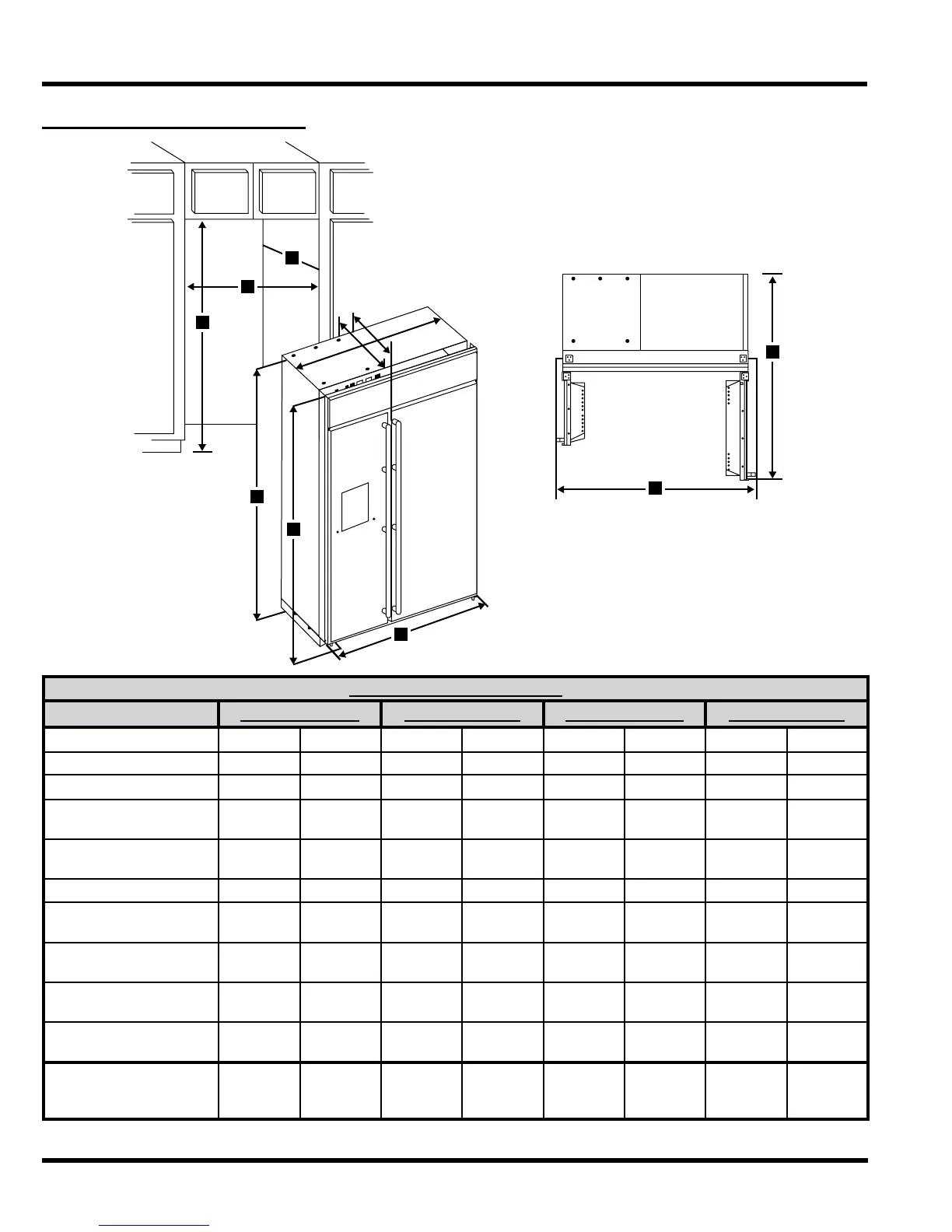

EXTERIOR DIMENSIONS
Specifications
EF48 (in/cm) IF48 (in/cm) EF42 (in/cm) IF42 (in/cm)
A. Cutout Height*
83 3/4 212.7 83 3/4 212.7 83 3/4 212.7 83 3/4 212.7
B. Cutout Width**
47 1/2 120.7 47 1/2 120.7 41 1/2 105.4 41 1/2 105.4
C. Cutout Depth
24 61 24 61 24 61 24 61
D
. Height to Top of
Cabinet
83 1/16 210.9 83 1/16 210.9 83 1/16 210.9 83 1/16 210.9
E. Height
to Top of
Grille
83 3/8 211.8 83 3/8 211.8 83 3/8 211.8 83 3/8 211.8
F. Width (cabinet) 47 1/4 120.0 47 1/4 120.0 41 1/4 104.8 41 1/4 104.8
G. Width
(doors
closed)
48 1/16 122.1 48 1/16 122.1 42 1/16 106.8 42 1/16 106.8
H.
Depth Excl. handles
(closed)
25 1/4 64.1 25 1/4 64.1 25 1/4 64.1 25 1/4 64.1
I.
Depth Incl. Handles
(closed)
26 5/8 67.6 N/A N/A 26 5/8 67.6 N/A N/A
J
. Depth (fresh food
door open 90˚)
52 1/2 133.3 52 9/16 133.5 48 11/16 123.7 48 3/4 123.8
K. Width
(doors open
90˚ including
handles)
50 3/4 128.9 N/A N/A 44 3/4 113.7 N/A N/A
*A. Add 1" (2.5 cm) for extended handle kit. **B. Add 2" (5.08 cm) for extended handle kit.
