Dacor EF48 - Installing Side Panels

Page 1-34
daCor builT-in refrigeraTor serviCe manual
1/4" side panel fitted up to
the cabinet trim (top view)
on Freezer side.
1/4" side panel fitted up to
the cabinet trim (top view)
on Refrigerater side.
#8-32 1/2"
Screw
#8-32 1/2"
Screw
3/16"/.48
Battens
1/2"/ 1.27 Battens
on side of machine
compartment
(3/16"/.48 below the
machine compartment)
Backside of Unit
Backside of Unit
1/4"/.64 Side Panel 1/4"/.64 Side Panel
Freezer Side of Unit Refrigerater Side of Unit
Door
Door

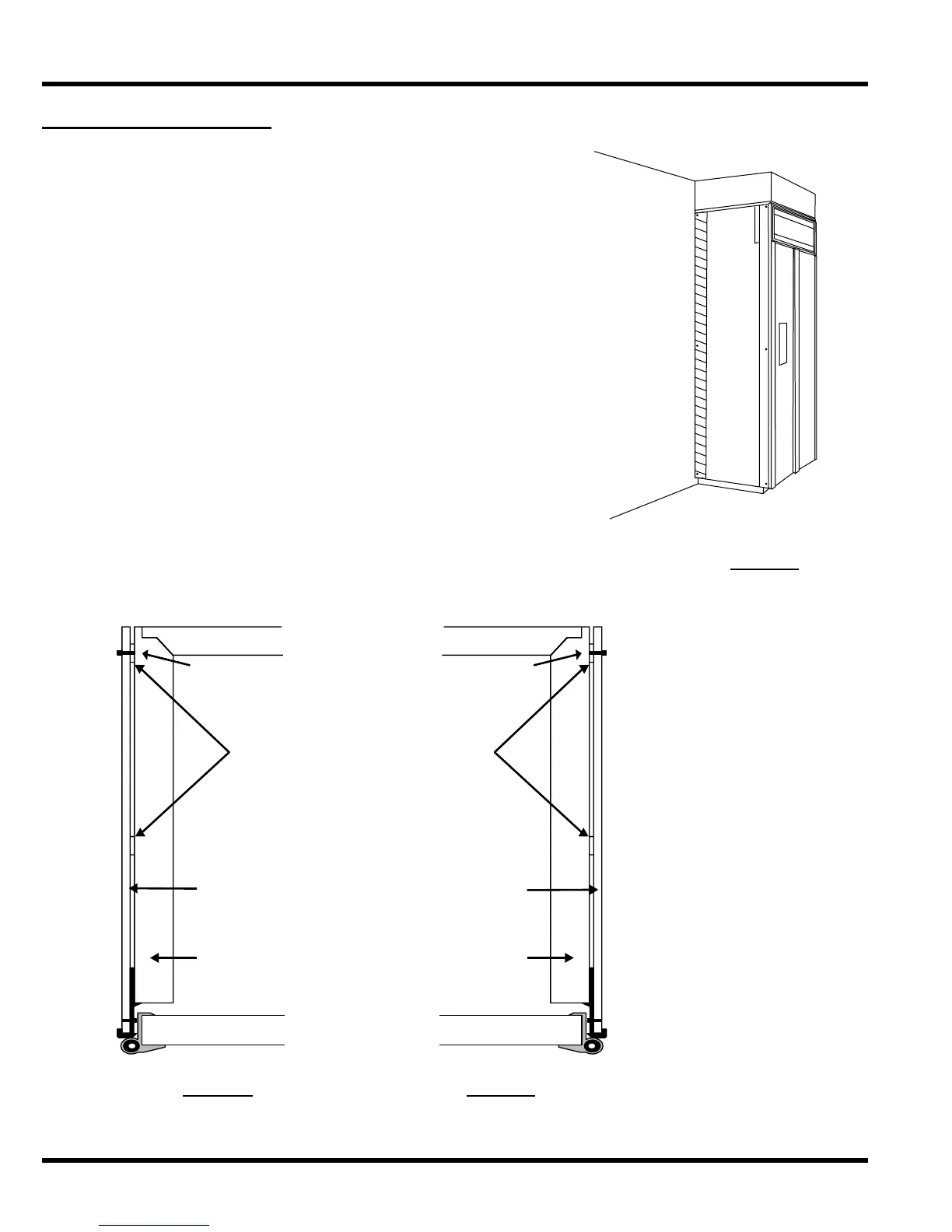

Installing Side Panels
Optional side panels need to be ¼-inch thick. Slide
panel into position and secure with screws indicated
by the shaded area (Fig 11a). A 3/16-inch batten
is required between the cabinet and side panel
(Fig. 11b). A ½-inch thick by 10 ¼-inch tall batten
is required if the side panel extends up into the
machine compartment area on the refrigerator side
(Fig. 11c).
Fig. 11a
Fig. 11b Fig. 11c
