seCTion 1 - ProduCT familiarizaTion
(A)

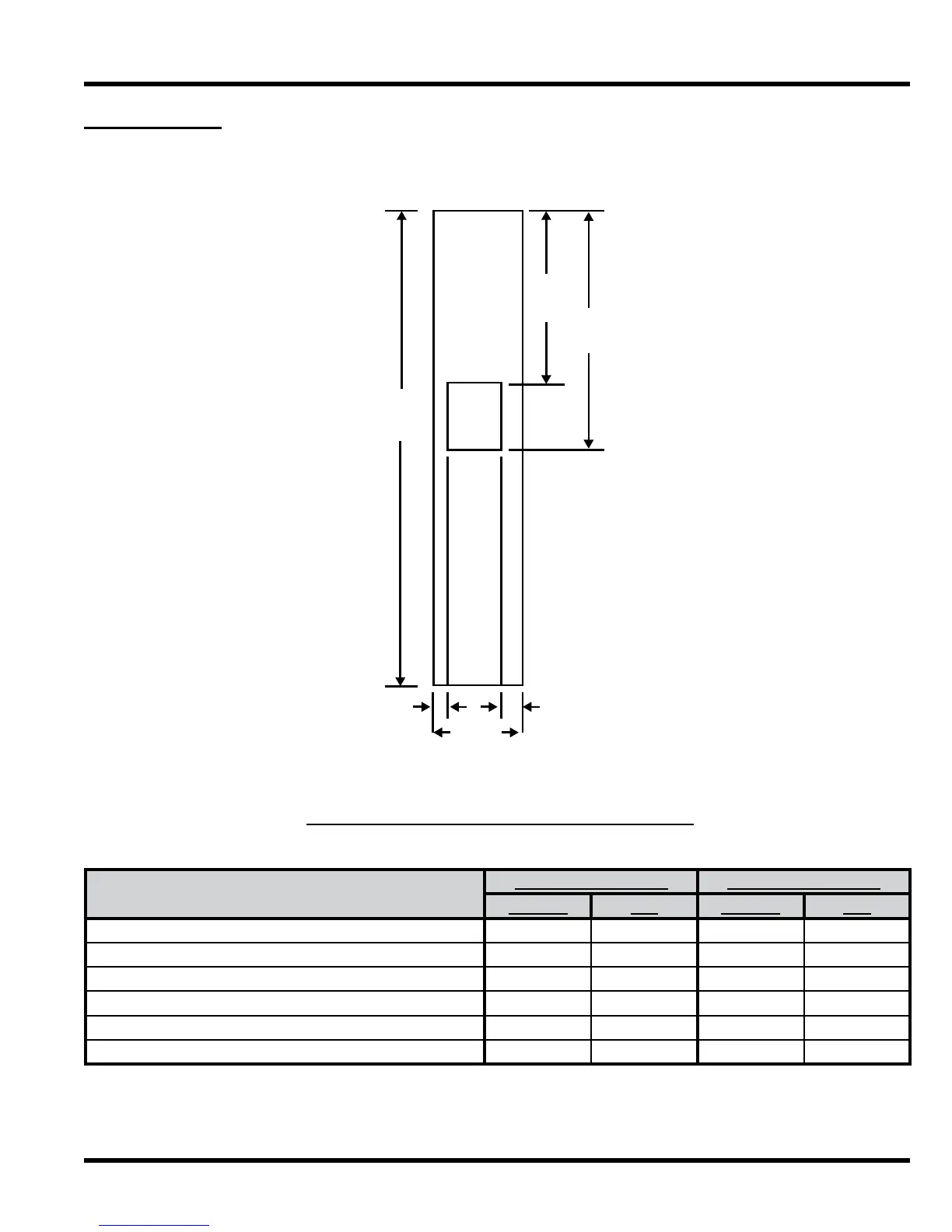

Dispenser One-Piece Freezer Overlay Panel
(B)
(C)
(D)
(E) (F)
42" Wide Cabinet 48" Wide Cabinet
Inches Cm Inches Cm
(A) Panel Height 69 1/8 175.6 69 1/8 175.6
(B) Panel Width 16 7/16 41.75 18 11/16 47.47
(C) Top of dispenser cutout to top of panel 21 3/16 53.82 21 3/16 53.82
(D) Bottom of dispenser cutout to top of panel 34 13/16 88.42 34 13/16 88.42
(E) Left of dispenser cutout width 2 1/16 5.24 2 3/16 5.56
(F) Right of dispenser cutout width 2 1/4 5.72 4 3/8 11.11
Dispenser One-Piece Freezer Overlay Panel
Panel Details (continued)
