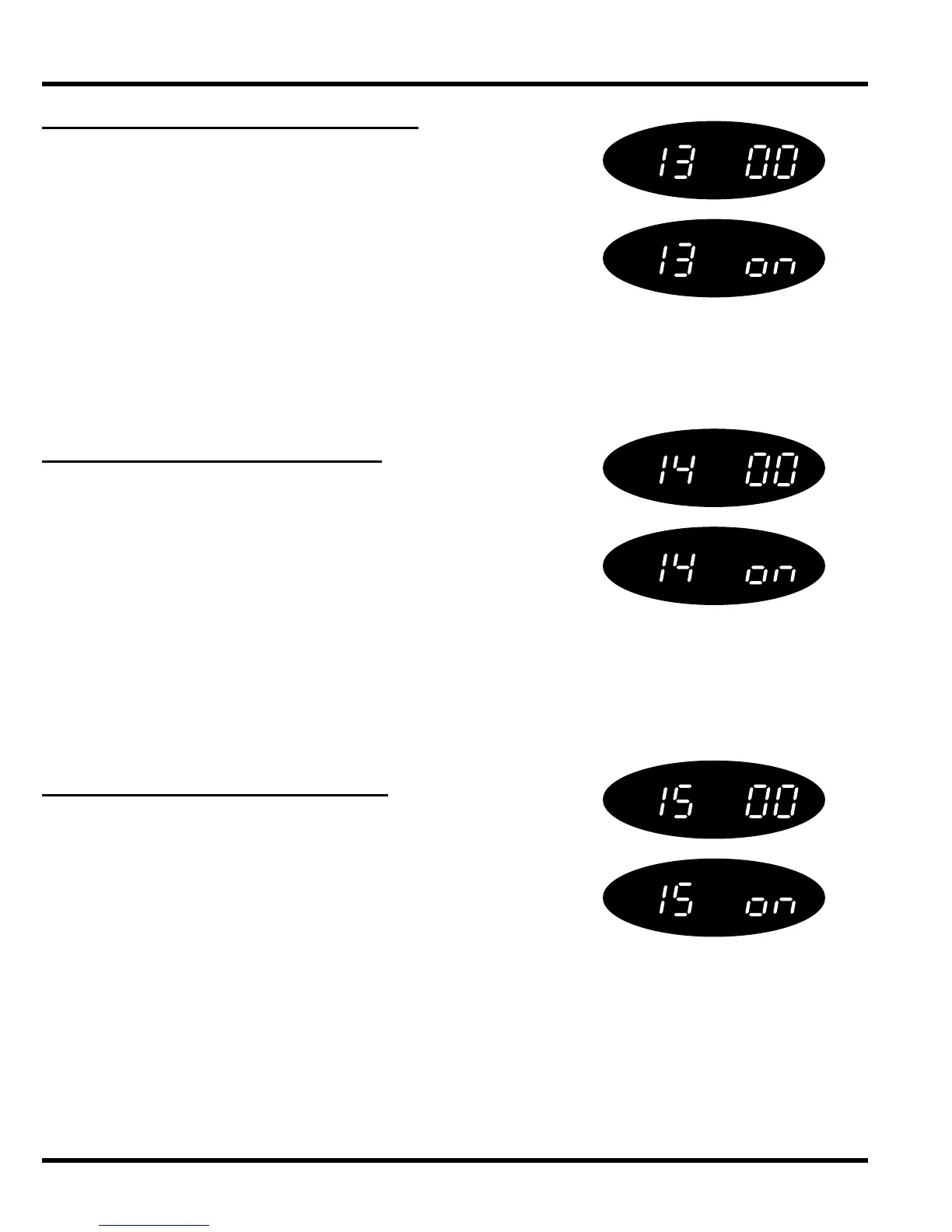

Service Test 13 – Fresh Food Lights
This test will energize the fresh food lamps.
Pressing the Power Interrupt Button will energize the
fresh food light system. Line voltage should be present at
JP12 pin 2.
Service Test 14 – Freezer Lights
This test will energize the freezer lamps.
Pressing the Power Interrupt Button will energize the
freezer light system. Line voltage should be present at JP
12 pin 3.
Service Test 15 – Fountain Lamp
This test will energize the fountain lamp (dispenser light).
Pressing the Power Interrupt Button will energize the
fountain lamp. Line voltage should be present at JP8 pin
9.
