Leveling
Slide the unit in place and raise the front and rear levelers until the unit touches
the brackets. Use a 3/8" socket for raising and lowering the unit. On each wheel
housing there are two 3/8" hex bolts. On the left side, the outside bolt will move
the rear leveler and the inside bolt will move the front leveler. On the right side,
the outside bolt adjusts the front leveler and the inside bolt will move the rear
leveler (Fig. 4). The front levelers must be in contact with the floor. To raise
the leveling legs, turn the hex screw in the counter clockwise direction. Place a
level on lower ledge of the machine compartment. Level the unit front to back
and side to side. This is to prevent tipping of the unit (See Fig. 7). Install the
kickplate. Locate the main power switch in the machine compartment and toggle
the switch “On”. Install the grille panel.

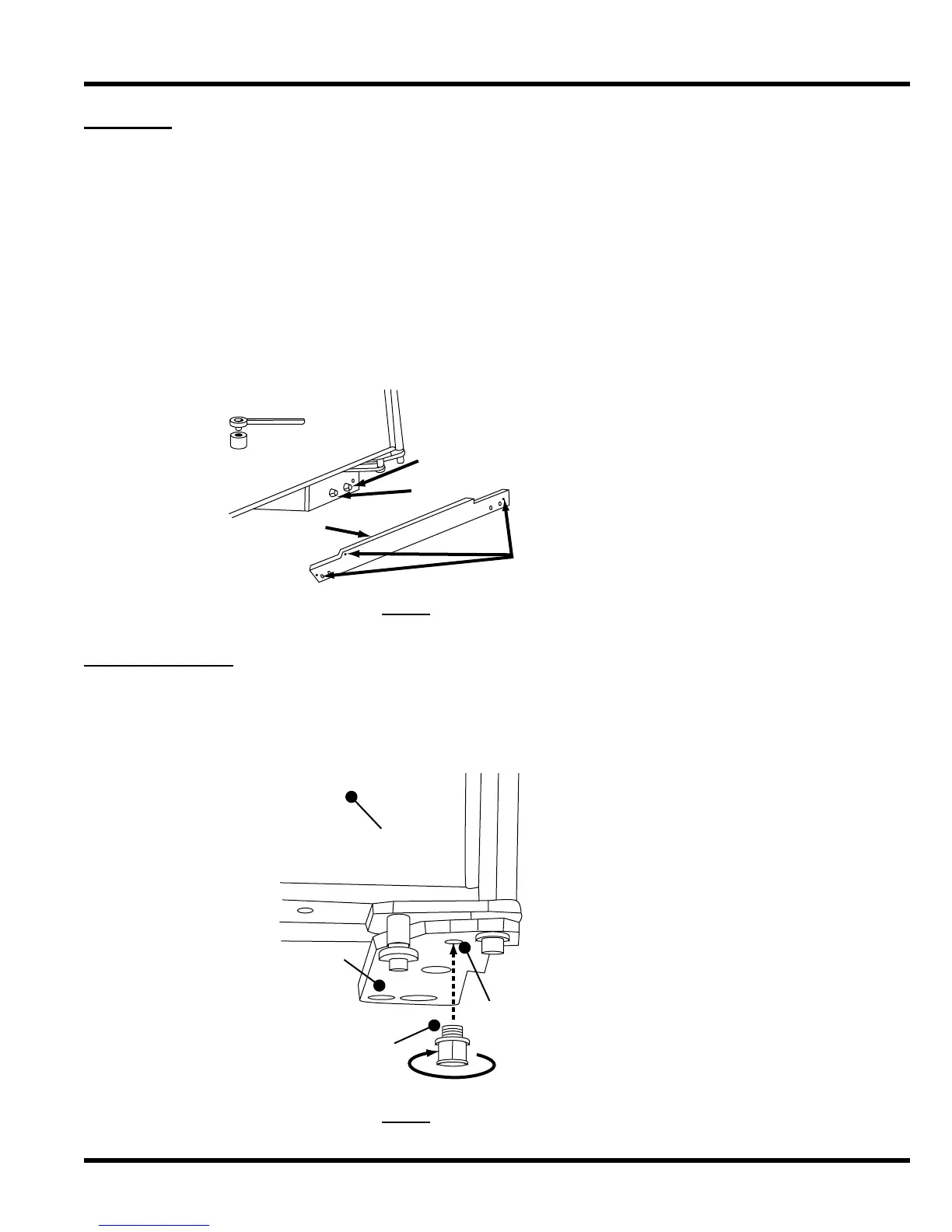

3 Phillips
Screws
Front Leveler
Kickplate
3/8"
Rear Leveler
Door
Panel
Door Stop
Mounting
Hole
90° Door
Stop
Lower Hinge
Plate
Fig. 4
Fig. 5
90° Door Stop
Both doors are designed to open 135 degrees. To restrict one or both doors to a
90 degree opening use the door stops supplied in this kit. With the doors closed,
screw a door stop into the underside of the lower hinge plate (Fig. 5).
