One-piece Overlay/Frame Panel Installation
See Owner Manual for switching “OFF / O” the unit. Reference Fig. 9 for door panel
removal and installation. With panels removed reattach hinge trim. Life slide out Spill
Tray grille and remove 2 Torx screws , . Remove stainless steel liner . Remove 2
Torx screws from the control panel . Slide control panel down to remove. Disconnect
terminals on back of control panel . Tuck dispenser terminal inside to avoid interfering
with one-piece panel . Open door and slide one-piece panel into position. Reconnect
control panel to dispenser terminal. Reattach control panel with 2 Torx screws.
Reposition stainless steel liner into track and secure with 2 Torx screws. Reinstall the
Spill Tray grille and door trim. Turn unit on.
Page 1-31
seCTion 1 - ProduCT familiarizaTion

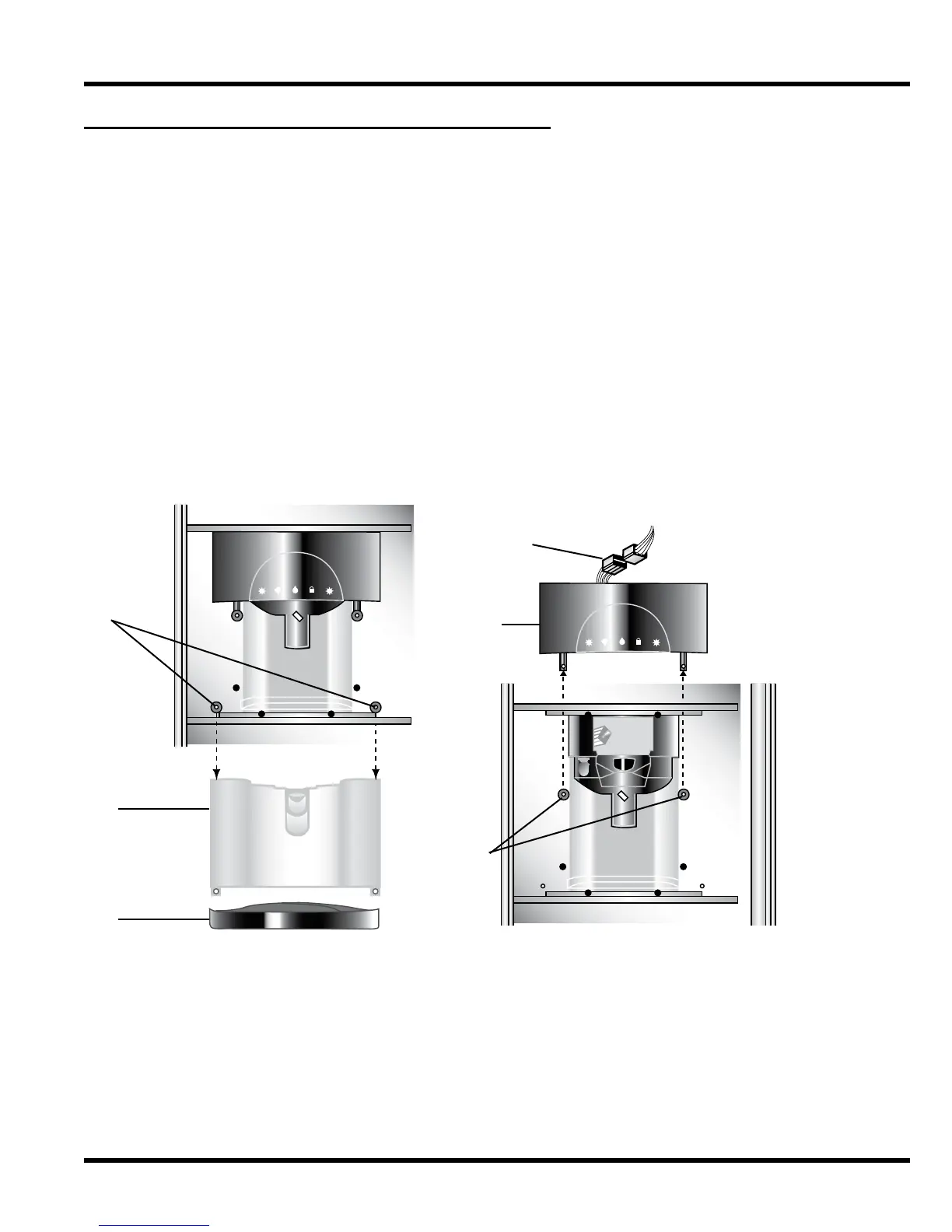

Stainless Steel Liner
Spill Tray Grille
