Dacor EF48 - Panel Details

daCor builT-in refrigeraTor serviCe manual
Page 1-32
daCor builT-in refrigeraTor serviCe manual
(A)

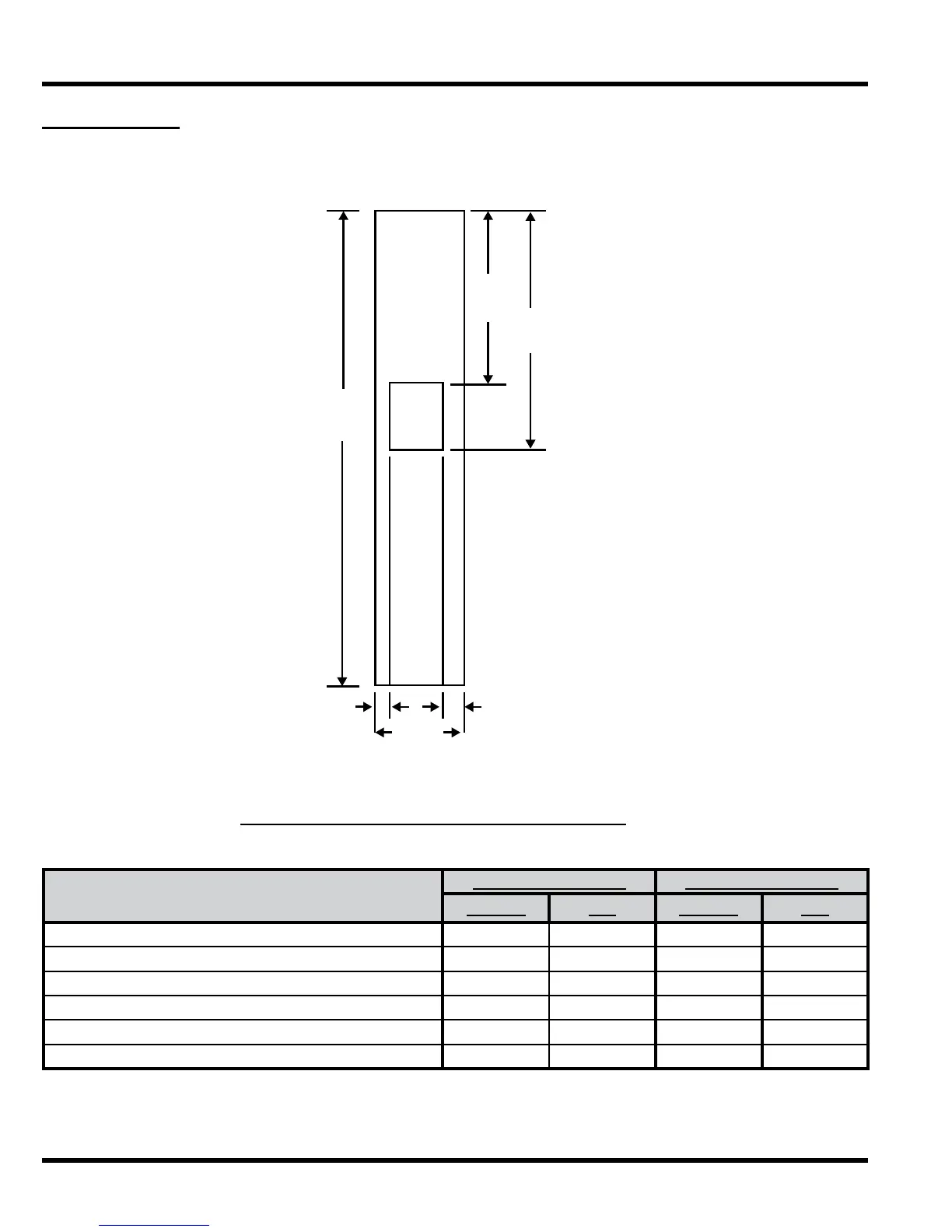

Dispenser One-Piece Freezer Framed Panel
(B)
(C)
(D)
(E) (F)
42" Wide Cabinet 48" Wide Cabinet
Inches Cm Inches Cm
(A) Panel Height 69 1/8 175.6 69 1/8 175.6
(B) Panel Width 15 1/16 38.26 17 5/16 43.97
(C) Top of dispenser cutout to top of panel 20 5/8 52.39 20 5/8 52.39
(D) Bottom of dispenser cutout to top of panel 35 7/16 90.01 35 7/16 90.01
(E) Left of dispenser cutout width 2 7/16 6.19 2 9/16 6.51
(F) Right of dispenser cutout width 1 5/16 3.33 3 3/8 8.57
Dispenser One-Piece Freezer Framed Panel
Panel Details
