Page 3-11
seCTion 3 - serviCe diagnosTiCs

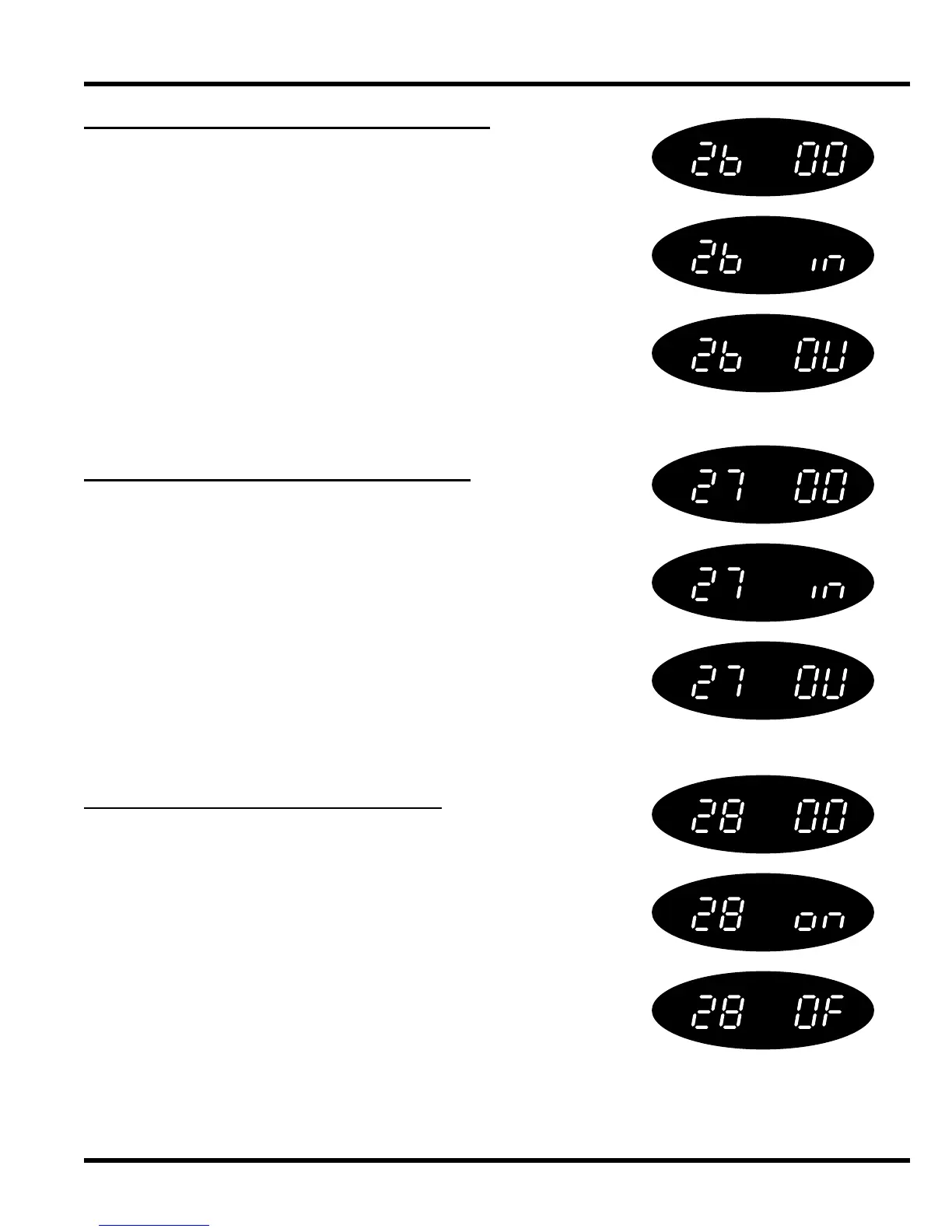

Service Test 26 – Bypass Valve Switch
This test indicates the current state of the bypass switch.
This switch must be reported as actuated for any of the
water valves to operate.
Pressing the Power Interrupt Button will display the
current switch state.
Bypass plug is installed
Bypass plug is not installed
Service Test 27 – Filter Valve Switch
This test indicates the current state of the filter switch.
This switch must be reported as actuated for the filter
monitor to operate.
Pressing the Power Interrupt Button will display the
current switch state.
Filter is installed
Filter is not installed
Service Test 28 – Actuator Switch
This test displays the current state of the dispenser
actuator (paddle switch) as read by the Main Control
board.
Pressing the Power Interrupt Button will display the
current state of the switch.
Switch activated
Switch released
•
•
•
•
•
•
