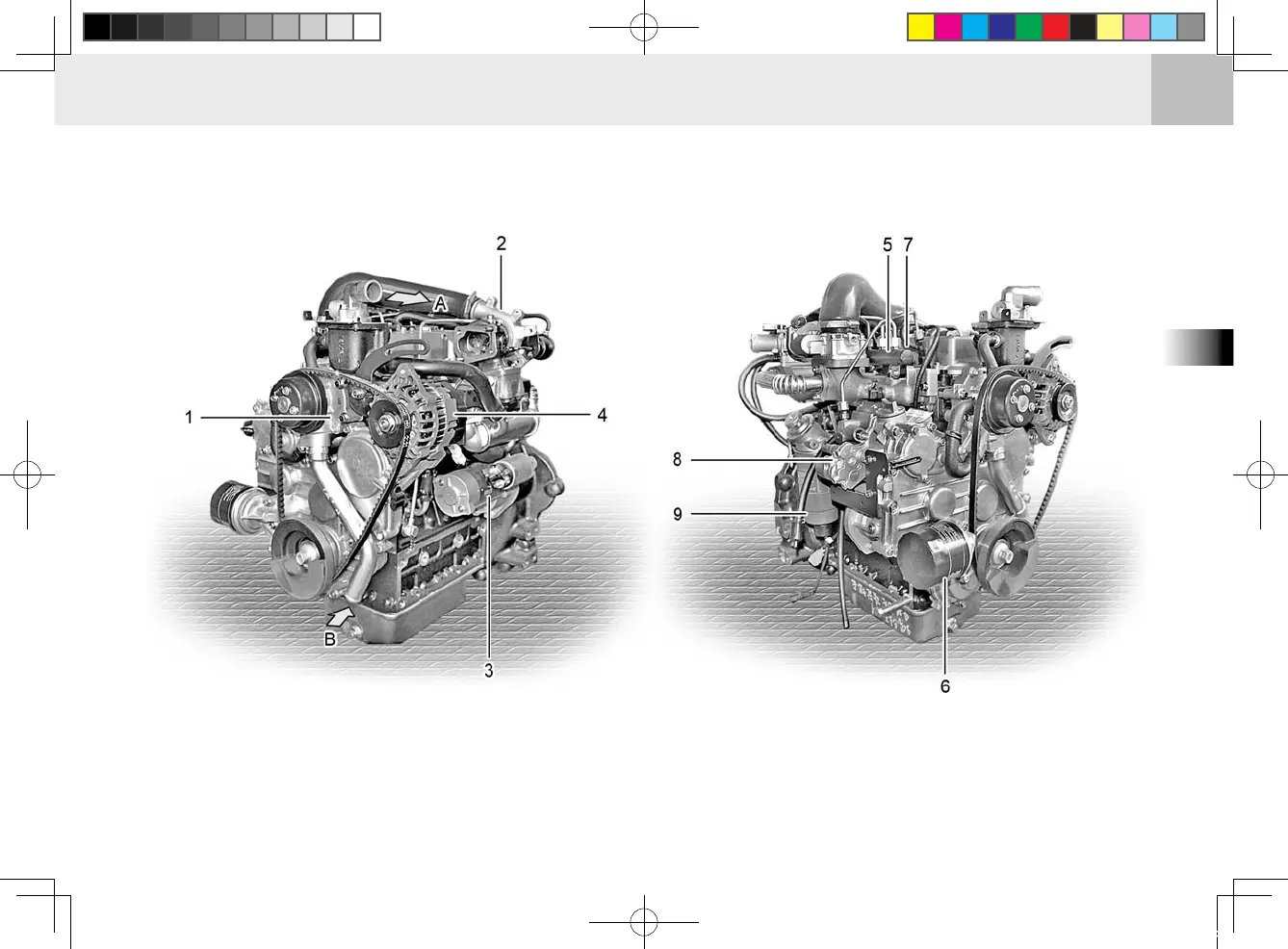

DESCRIPTION OF ENGINE SYSTEM
2
4 CYLINDER
(1) Water Pump
(2) Turbocharger
(3) Starter
(4) Alternator
(5) Common Rail
(6) Oil Filter
(7) Injector
(8) Oil Gauge
(9) HP Pump
(10) Oil Cooler
(11) Fuel Filler
(A) Coolant Out (To Radiator)
(B) Coolant In (From Radiator)
HI4W104B
