DESCRIPTION OF OPERATING SYSTEMEX35(C)/EX40(C)/EX45(C)/EX50(C)
4
4
-
15
4
-
14
DESCRIPTION OF OPERATING SYSTEMEX35(C)/EX40(C)/EX45(C)/EX50(C)
H20O418A

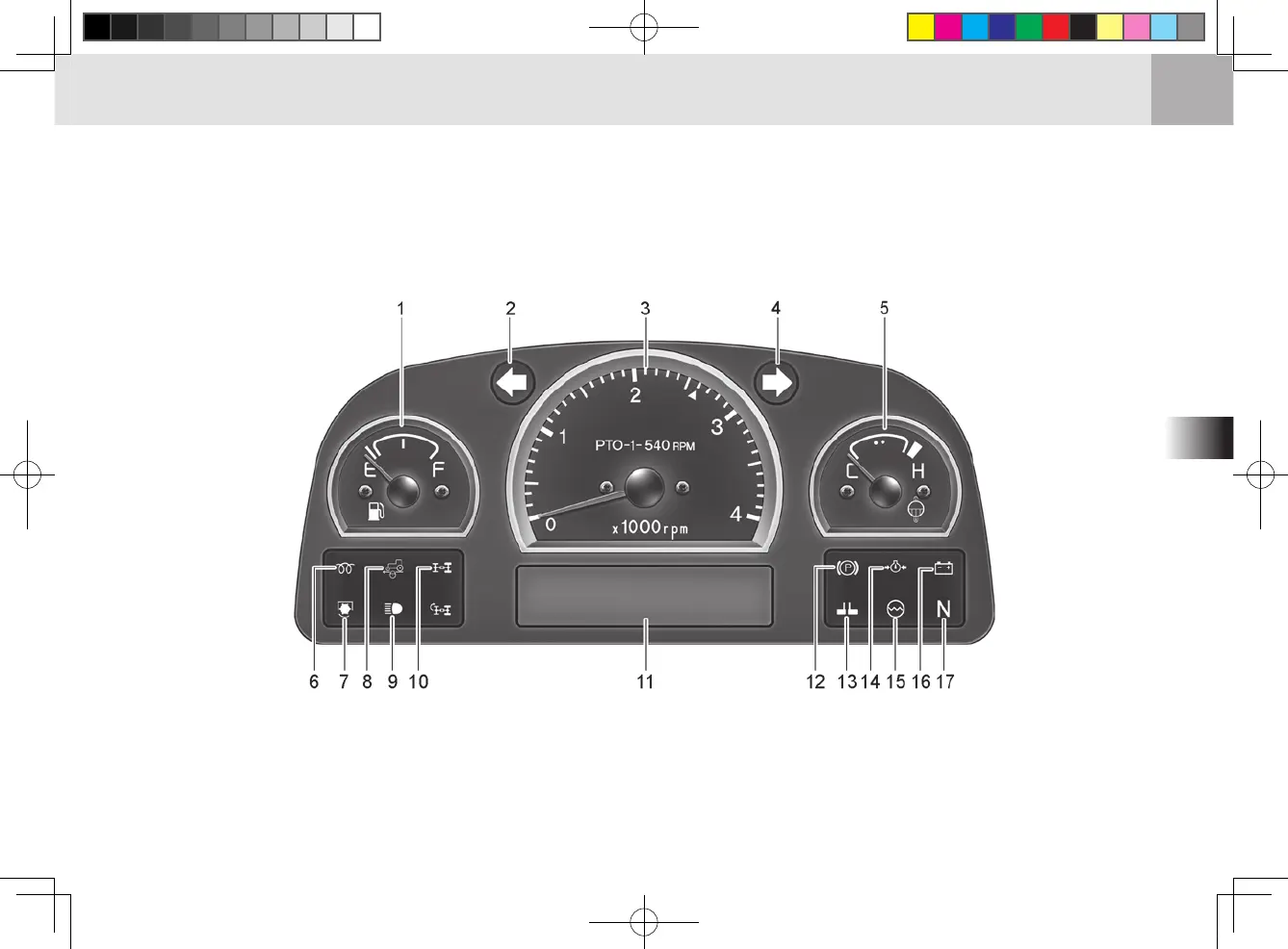

(1) Fuel Gauge
(2) Turn Signal Light (LH)
(3) Speedometer
(4) Turn Signal Light (RH)
(5) Coolant Temperature Gauge
(11) LCD Display
(12) Parking Brake Indicator
(13) Brake (One Side) Lamp
(14) Engine Oil Pressure War-ning Lamp
(15) Coolant Level Warning lamp
(6) Glow Plug Indicator
(7) PTO Indicator
(8) Cruise Indicator
(9) High Beam Indicator
(10) 4WD Engaged Indicator
(16) Battery Charge Warning lamp
(17) Neutral Indicator
DIGITAL Type
