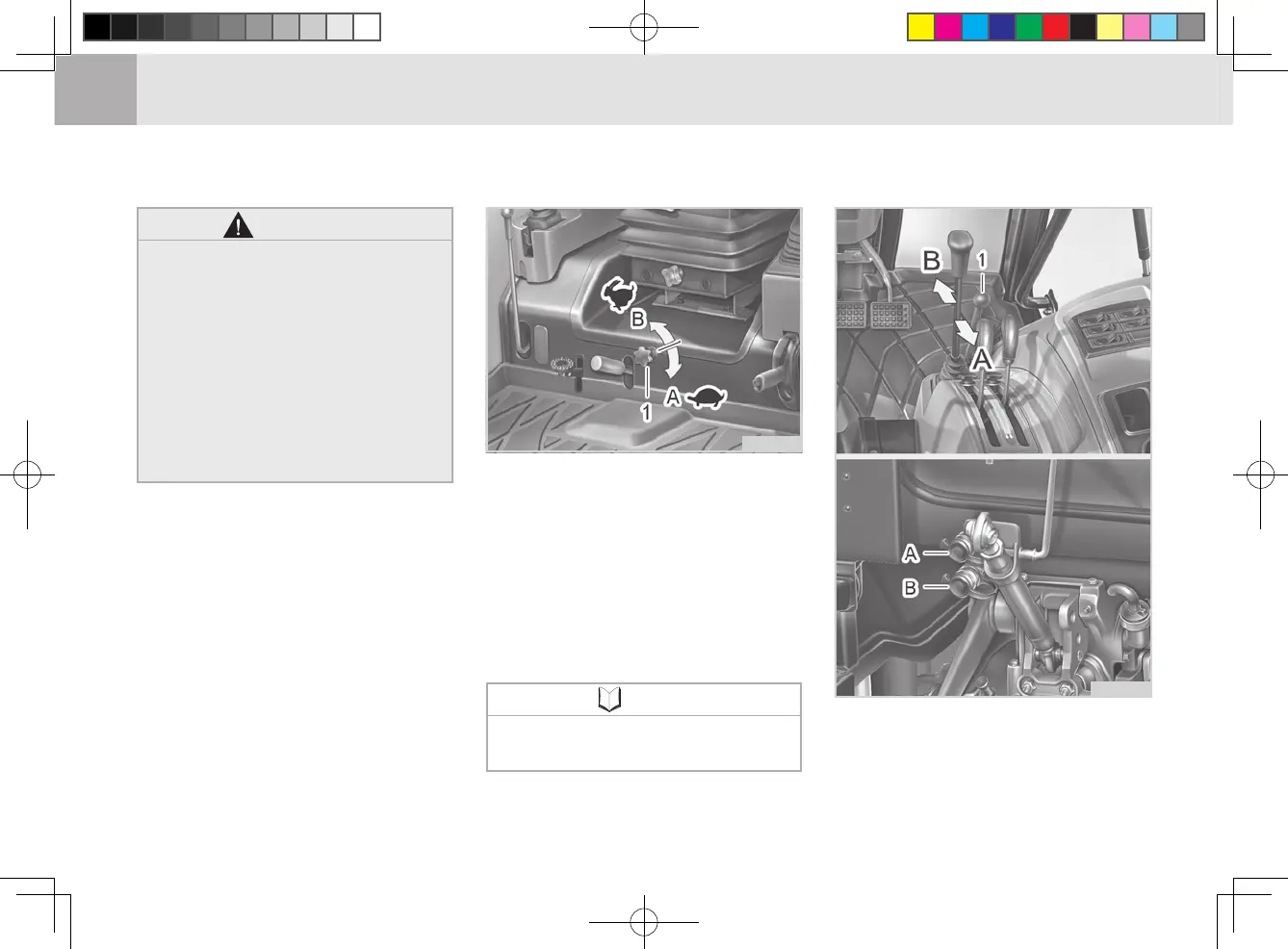

DOUBLE ACTING LEVER
(OPTIONAL)
(1) Double Acting Lever
(A) Port A (B) Port B
H11O478A
To avoid accidents:

Never leave the seat with the
mid PTO in operation. An inju-
ry can happen.

Do not install and operate im-
plements driven by the rear
and mid PTOs a t the same
time.

Use only approved implements
for the mid PTO.
Turning the lever counterclockwise
increases the lowering speed while
turning it clockwise decreases the
lowering speed. Also, turning it clock-
wise to its end can x the implement
to a certain position.
(1) Lowering Speed Control Lever
(A) Low Speed (B) High Speed
H23O477A
LIFTING ARM (LOWER LINK)
SPEED CONTROL LEVER

This lever does not control the
lifting speed of the lifting arm.
WARNING
NOTE
