The differential lock is to secure the
differential system and keep the
wheel rotation on both sides the
same in order to enhance the trac-
tion of the rear axle.
Depressing the pedal engages the
differential lock while releasing the
pedal disengages the differential
lock.
Use this system under the following
conditions:
1. When any wheel slips and the
tractor does not move in the eld.
2. When it is hard to escape a paddy
eld.

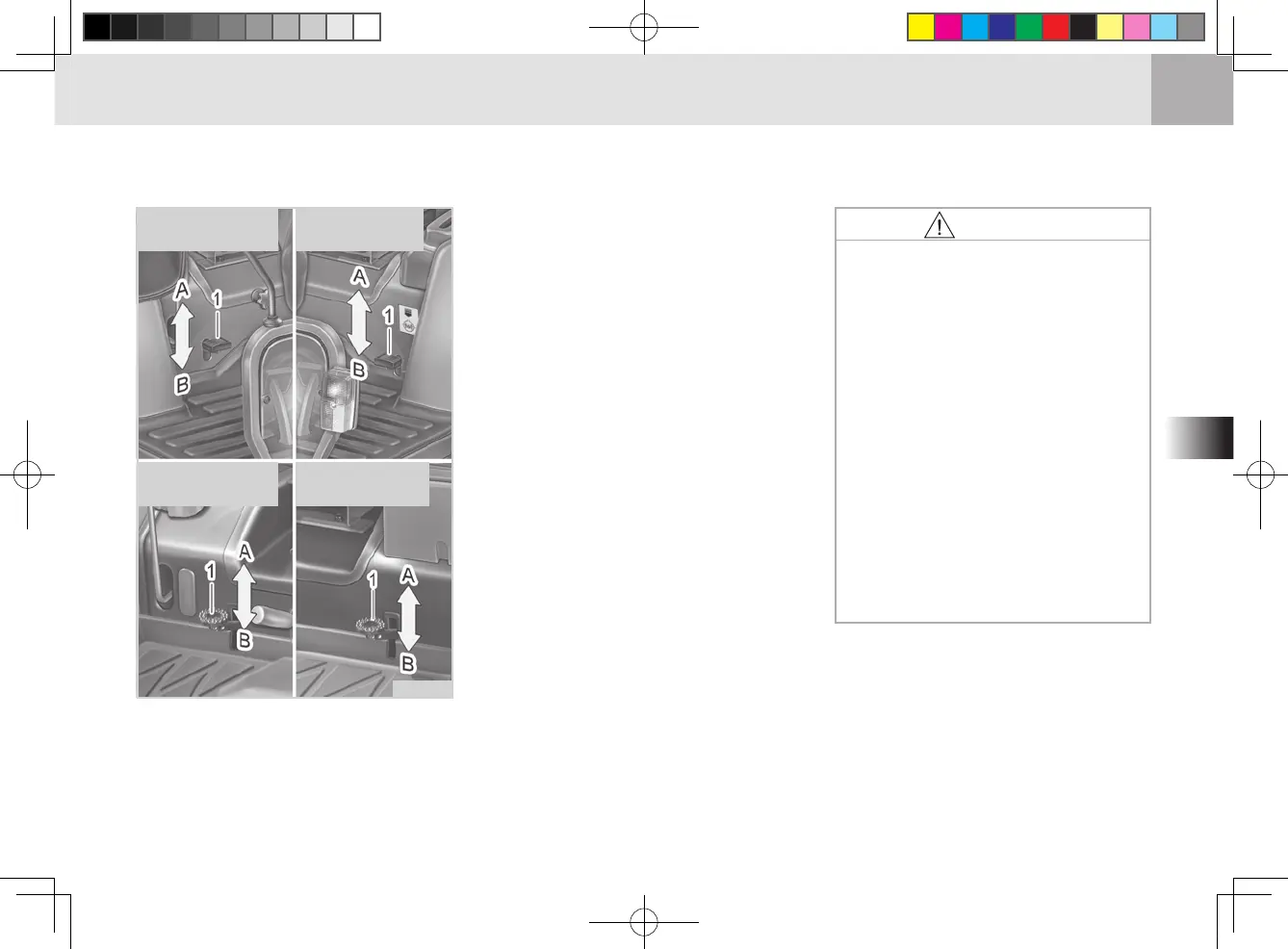

DIFFERENTIAL LOCK PEDAL
(1) Lock Pedal
(A) Release to “Disengage”
(B) Depress to “Engage”
H23O467A

The differential lock should be
engaged only while the driving
clutch is engaged. If the dif-
ferential lock pedal does not
move when depressing it, try
to depress it again after releas-
ing it.

When engaging the differential
lock, reduce the engine speed.
After engaging it, accelerate
the tractor.

Make sure to set the steering
wheel in the straight ahead po-
sition while the differential lock
is in use. Otherwise, the differ-
ential system can be damaged.
ROPS MODEL
(MANUAL Type)
ROPS MODEL
(HST Type)
CABIN MODEL
(MANUAL Type)
CABIN MODEL
(HST Type)
