DESCRIPTION OF OPERATING SYSTEMEX35(C)/EX40(C)/EX45(C)/EX50(C)
4
-
27
4
-
26
DESCRIPTION OF OPERATING SYSTEMEX35(C)/EX40(C)/EX45(C)/EX50(C)

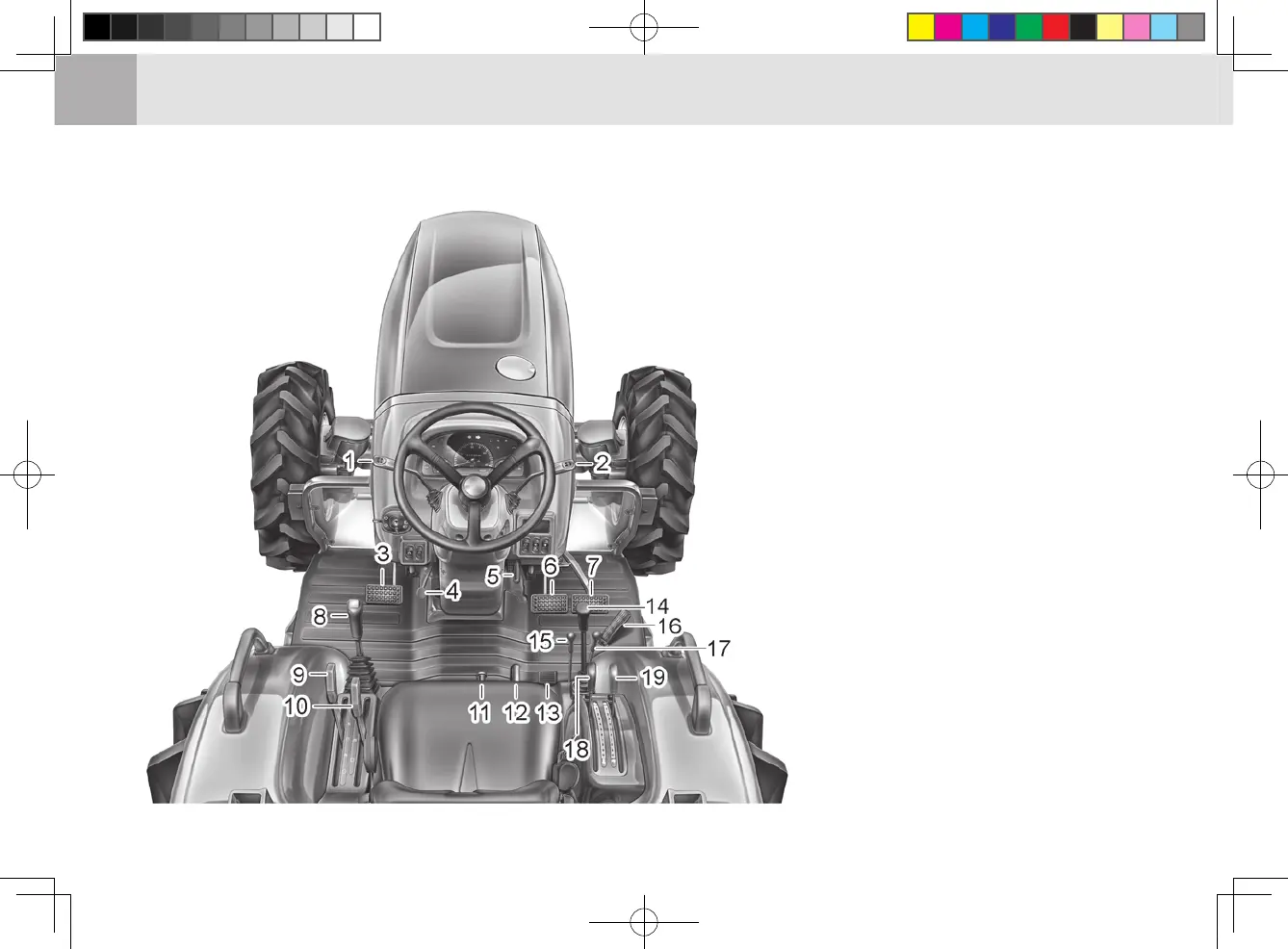

OPERATING THE CONTROLS
(1) Shuttle Shift Lever
(2) Hand Throttle Lever
(3) Clutch Pedal
(4) Tilt Steering Pedal (Steering Wheel Angle Adjustment)
(5) Parking Brake Lock Lever
(6) Brake Pedal (L)
(7) Brake Pedal (R)
(8) Main Gear Shift Lever
(9) Range Gear Shift Lever
(10) Creep Gear Shift Lever
(11) 3-point Hitch Lowering Speed Knob
(12) Mid Pto Shift Lever (Option)
(13) Differential Lock Pedal
(14) Joystick Lever(For Loader Operation)
(15) Double Acting Lever (A, B)
(16) Foot Throttle
(17) Double Acting Lever (C, D)
(18) Draft Control Lever
(19) Lift Position Control Lever
ROPS MODEL
(MANUAL Type)
T23O419A
