DESCRIPTION OF OPERATING SYSTEMEX35(C)/EX40(C)/EX45(C)/EX50(C)
4
4
-
27
4
-
26
DESCRIPTION OF OPERATING SYSTEMEX35(C)/EX40(C)/EX45(C)/EX50(C)

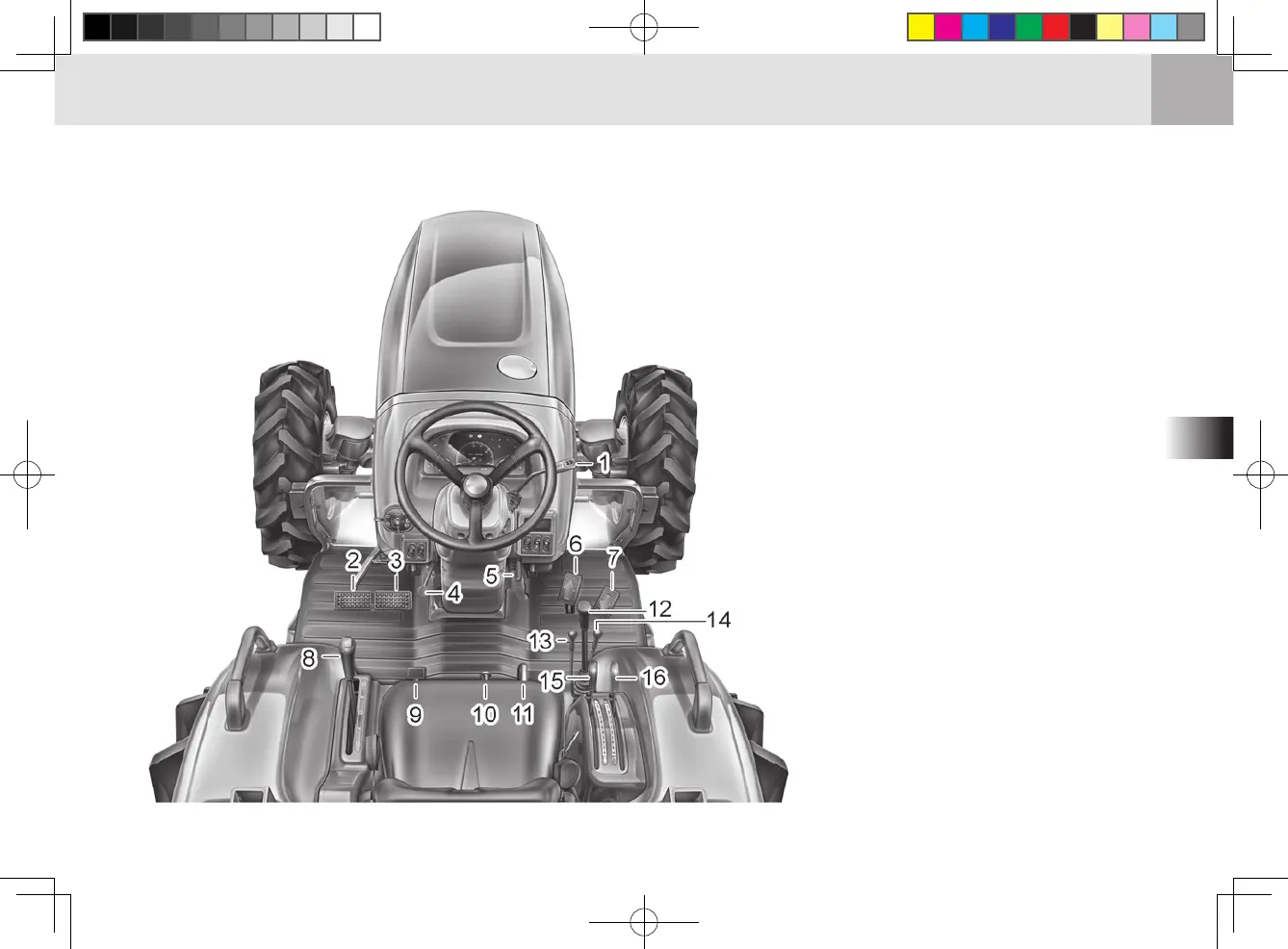

(1) Hand Throttle Lever
(2) Brake Pedal (L)
(3) Brake Pedal (R)
(4) Tilt Steering Pedal (Steering Wheel Angle Adjustment)
(5) Parking Brake Lock Lever
(6) Hst Forward Pedal
(7) Hst Reverse Pedal
(8) Range Gear Shift Lever
(9) Differential Lock Pedal
(10) 3-point Hitch Lowering Speed Knob
(11) Mid Pto Shift Lever (Option)
(12) Joystick Lever(For Loader Operation)
(13) Double Acting Lever (A, B)
(14) Double Acting Lever (C, D)
(15) Draft Control Lever
(16) Lift Position Control Lever
T66O408A
ROPS MODEL
(HST Type)
