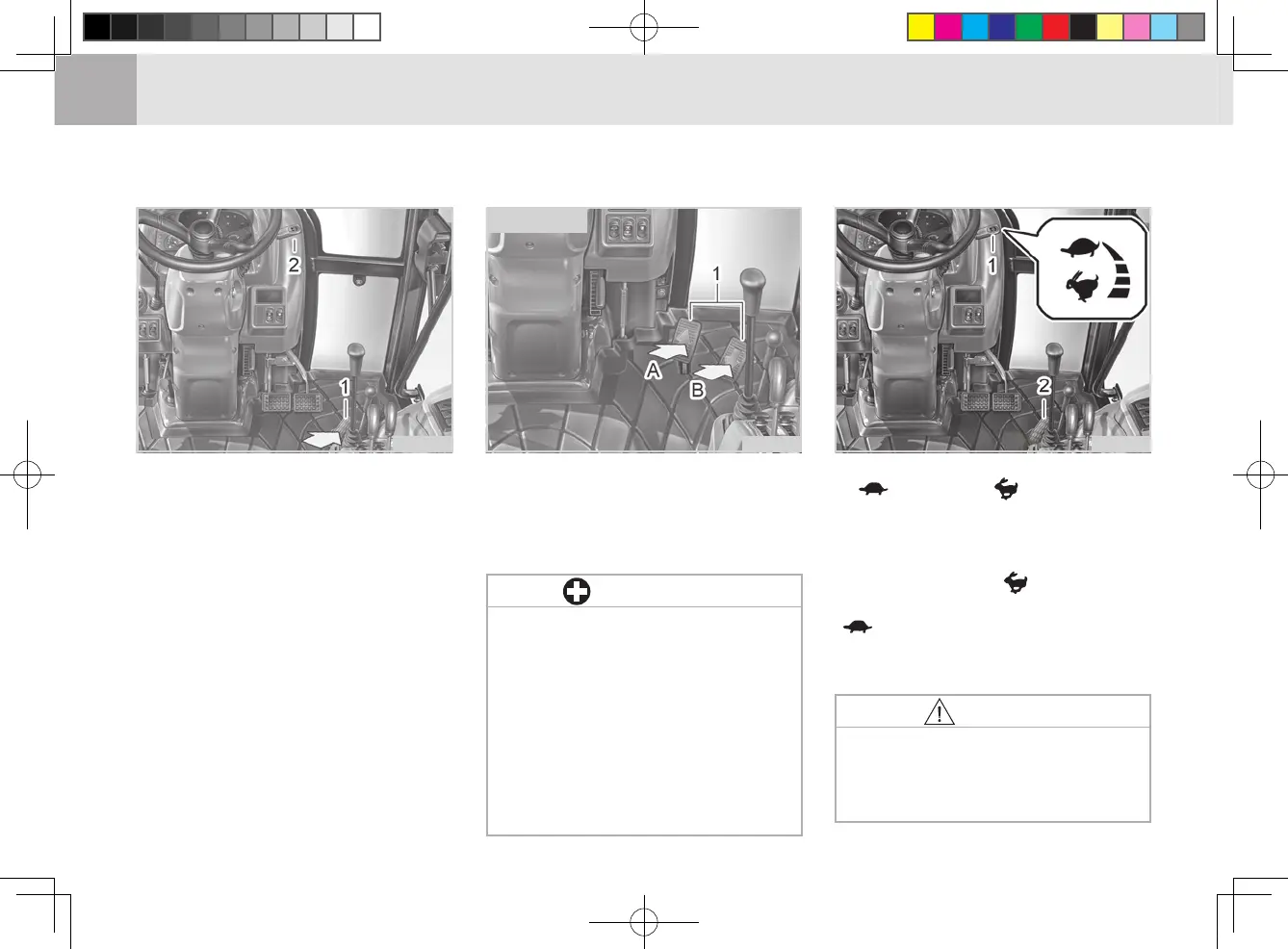

(1) Forward / Reverse Driving Pedals
(A) Forward (B) Reverse

Using the accelerator lever
during driving can lead to an
accident as it becomes hard to
decelerate the tractor rapidly.
H11O465A
HAND THROTTLE LEVERFORWARD/REVERSE DRIVING
PEDALS
(1) Hand Throttle Lever (2) Accelerator Pedal
Decrease Increase
FOOT THROTTLE
(1) Foot Throttle (2) Hand Throttle Lever
H23O464A
The foot throttle is mainly used dur-
ing driving on a road while the hand
throttle lever is mainly used while
working on a eld.
Depressing the left pedal selects the
forward driving while depressing the
right pedal selects the reverse driving.

"Unlike a gas pedal, these HST
pedals act like a main speed shift
in a mechanical tractor".There-
fore, depress them deeper to ob-
tain higher speed with lower
torque and release them to obtain
lower speed with higher torque.

For heavy load job, such as front
end loader operation, use low or
medium speed of the range shift
lever.
IMPORTANT
The hand throttle lever is to control
the engine rpm.The engine acceler-
ates to its full speed by pulling the
hand throttle lever ( position) com-
pletely out while pushing the lever
( position) decelerates the engine.
The hand throttle lever is mainly
used while working on a eld.
CAUTION
HST Type
H23O466A
