Care is to be taken to avoid leaving
fingerprints on a headlight bulb.
Failing to observe this may cause
early damage of the headlight bulb
resulted from concentration of heat.
●
Be sure to wear clean gloves when
replacing a bulb. If touched to it with
bare hands, clean it with a cloth
soaked with alcohol to prevent from
early damage.
28
●
Be sure to turn a main switch "OFF"
prior to replacement of a bulb.
●
Use only a bulb of rated capacity.
●
After replacement with new bulb,
check for proper operation.

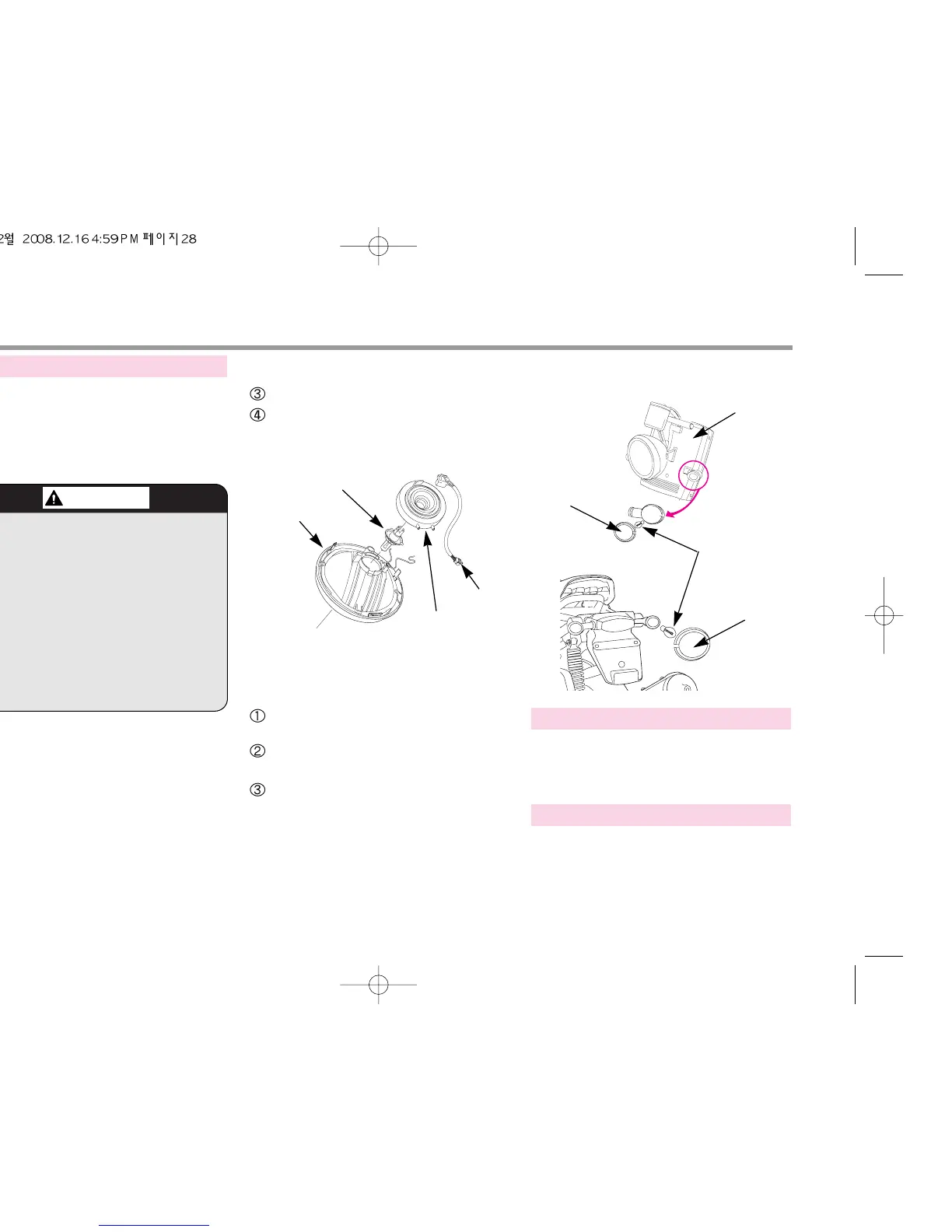

<HEADLIGHT BULB>
Check to see if the switch has a contact
problem, before replace the bulb.
Loosen 4 washer screw and remove the
headlight.
Press the socket spring, turn counter
clock wise.
Remove the headlight bulb.
Replace the bulb with new one. Install
in the reverse order of removal.
HEADLIGHT BULB : 12V 35/35W
<FRONT /
REAR WINKER BULB>
Loosen two tapping screws to dis-
assemble a lens.
Press a bulb with a light force and rotate it
to counterclockwise to disassemble it.
Replace it with new bulb. Install in the
reverse order of removal.
FRONT / REAR WINKER BULB :
12V 10W X 2
Check the objects at the back are well
noticed when seating on a driver’s seat, and
also mirror for damage or contamination.
Check there is no gasoline leakage from fuel
tank, hoses, carburetor, etc.
FRONT COVER
SOCKET
RUBBER COVER
HEADLIGHT BULB
HEADLIGHT ASSY
REAR VIEW MIRROR
FUEL LEAK INSPECTION
FRONT
WINKER LENS
REAR
WINKER LENS
WINKER BULB
