The following is an explanation of correct
inspection methods, cleaning and parts
replacing. Please always refer to this
section when wanting to inspect or repair
your vehicle.
●
Check that the fluid level is above the
LOWER level mark with the motor-
cycle in an upright position.
●
Brake fluid must be added to the
reservoir whenever the fluid level
begins to reach the LOWER level
mark.
1. Remove the screws.
2. Clean dust and other foreign materials
around reserve tank to prevent foreign
materials from falling inside tank.
3. Remove the screws and take oil cup
cap, diaphragm plate, diaphragm off.
4. Replenish recommended brake oil to
the upper level inside reserve tank.
RECOMMENDED BRAKE OIL IS
DOT 3 or DOT 4
5. After replenishing bralce oil and when
assembly, pay attention to assembly
direction and jammed of diaphragm.
Install in the reverse order of removal.
MAINTENANCE PRECAUTIONS
●
Always observe safety rules when
performing maintenance on the
vehicle.
●
Choose a flat surface and make sure
the main stand is in a secure down
position.
●
Use correct tools.
●
Conduct engine maintenance with
the engine key out of the ignition.
●
Be careful around the engine and
muffler when performing mainte-
nance as these areas can become
extremely hot.
●
After self maintenance, the waste
material must be packed in the
specified container and entrusted
disposal to the authorized disposal
company.

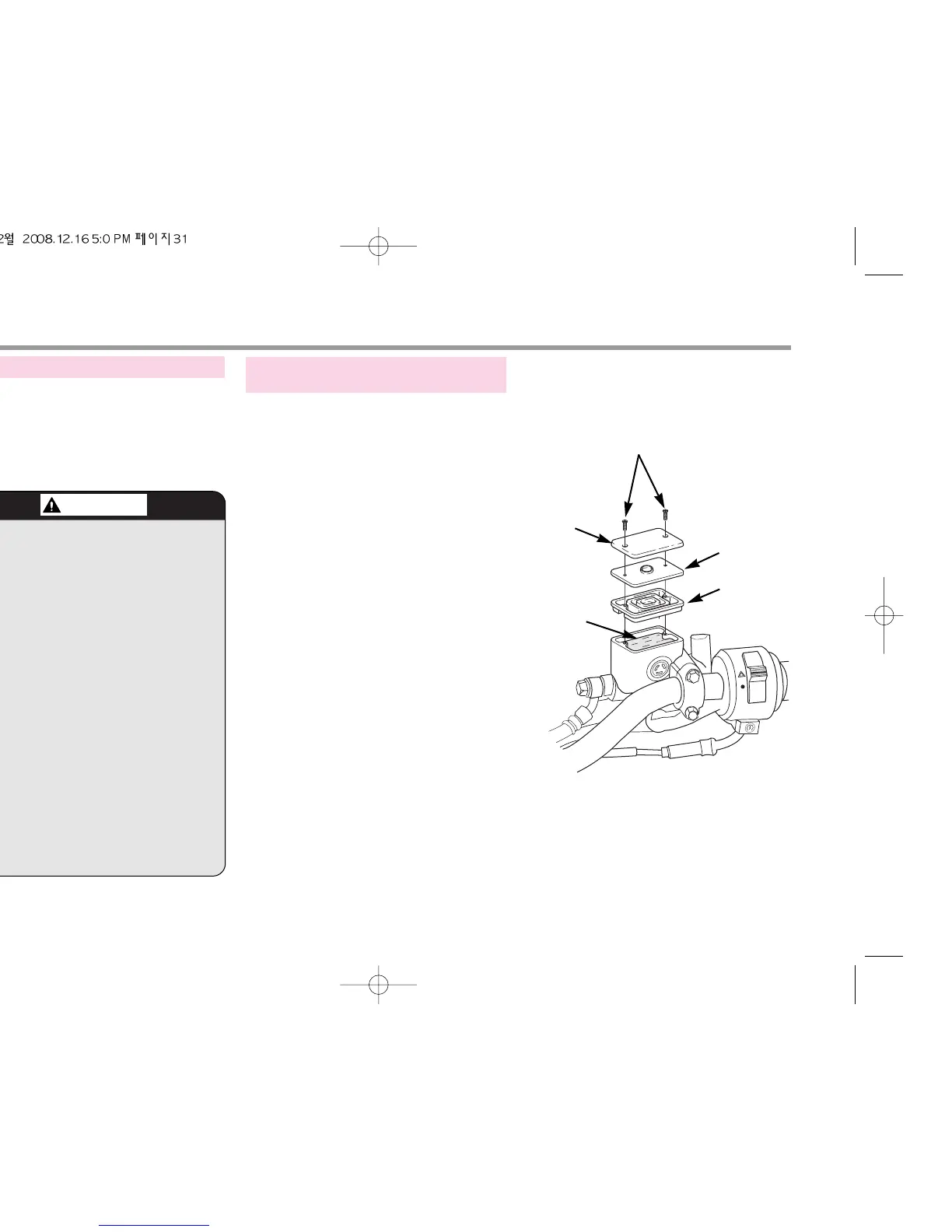

REPLENISHING FRONT / REAR
BRAKE FLUID
SCREWS
OIL CUP CAP
DIAPHRAGM PLATE
DIAPHRAGM
UPPER LEVEL
