torque. (30 kg.m).
z Tighten the bearing cap in the
sequence of 4–3–5–2–6–1-7.
z Check to see that the assembled
crankshaft turns smoothly with hand.

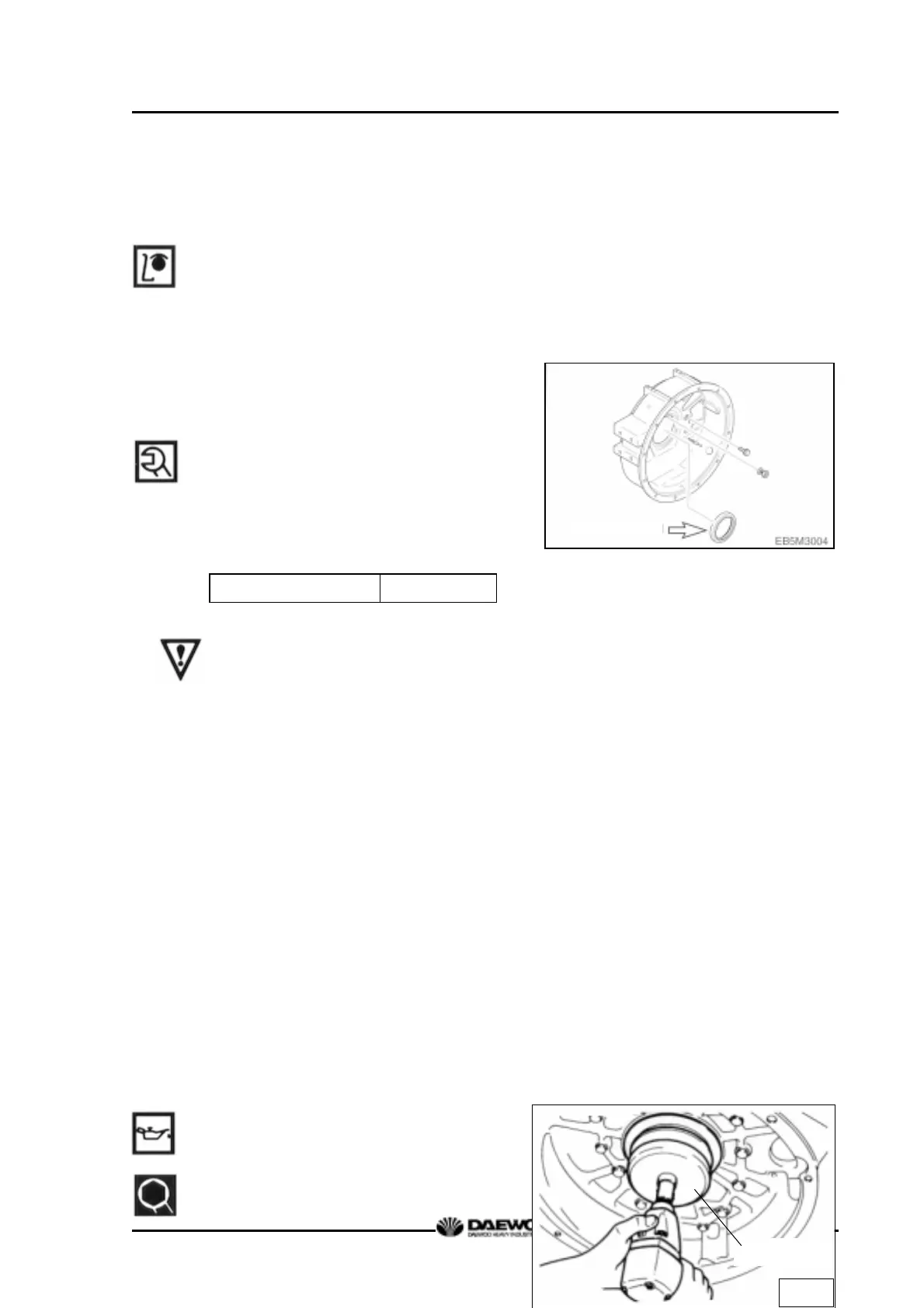

3.3.6. Flywheel housing
z Temporarily install the guide bar on the
cylinder block.
z Apply gasket to the cylinder block.
z Using the dowel pin and guide bar, install
the flywheel housing and tighten the
fixing bolts in a diagonal sequence to
specified torque. (Zigzag method)
Torque 8 kg.m
CAUTION :
When the bolts are tightened, remove
the guide bar.
z The flywheel housing is assembled after
the new oil seal was pressed (Coat
engine oil over the outside of oil seal)
before in the housing by a press.
z If any peripheral scar was generated
due to oil seal at the oil seal contact
surface of crankshaft, after inserting
about 1 mm shim or thereabout in front
of oil seal (Direction toward crankshaft.),
measure and adjust.
3.3.7. Oil seal (Rear side)
z Apply lubricating oil to the outside of the
oil seal and flywheel housing inside
diameter and fit them over the crank
G1052
Oil Seal Fitting Jig
Oil seal
