4-22 Inspection, Maintenance and Adjustment 022-00028AE Operation and Maintenance Manual
1) Loader arm foot ends, 2
locations on each side of
machine. Greased from two
remote grease points (1, Figure
34).
2) Bucket cylinder head, 1 point.
Greased from remote grease
point (2, Figure 34).

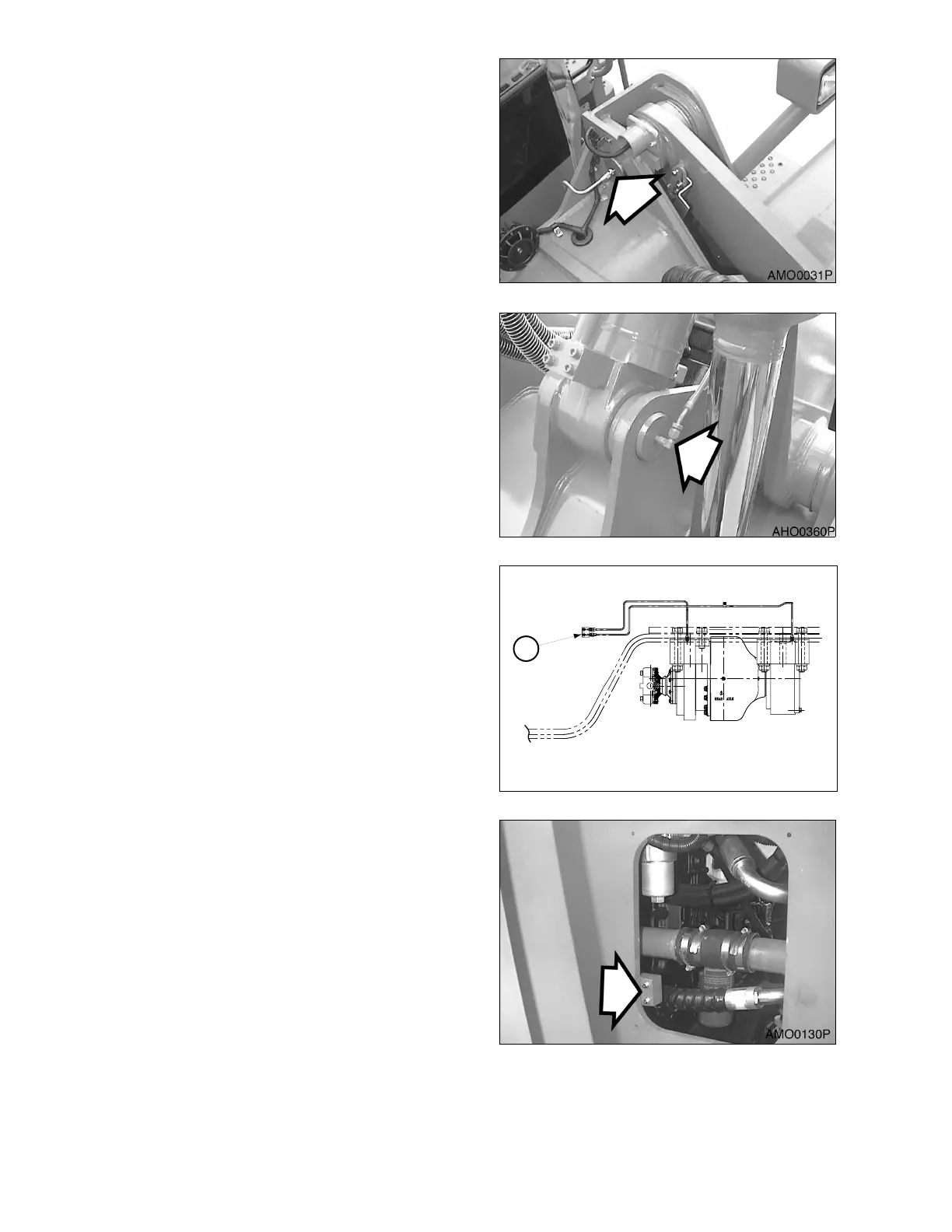

F: Rear Axle pivot (1, Figure 38), 2
locations on each side of machine.
Use remote grease fittings mounted
on frame shown in Figure 38.
Figure 36
Figure 37
1
AHO0390L
Figure 38
Figure 39
