4-24 Inspection, Maintenance and Adjustment K1000896E Operation and Maintenance Manual

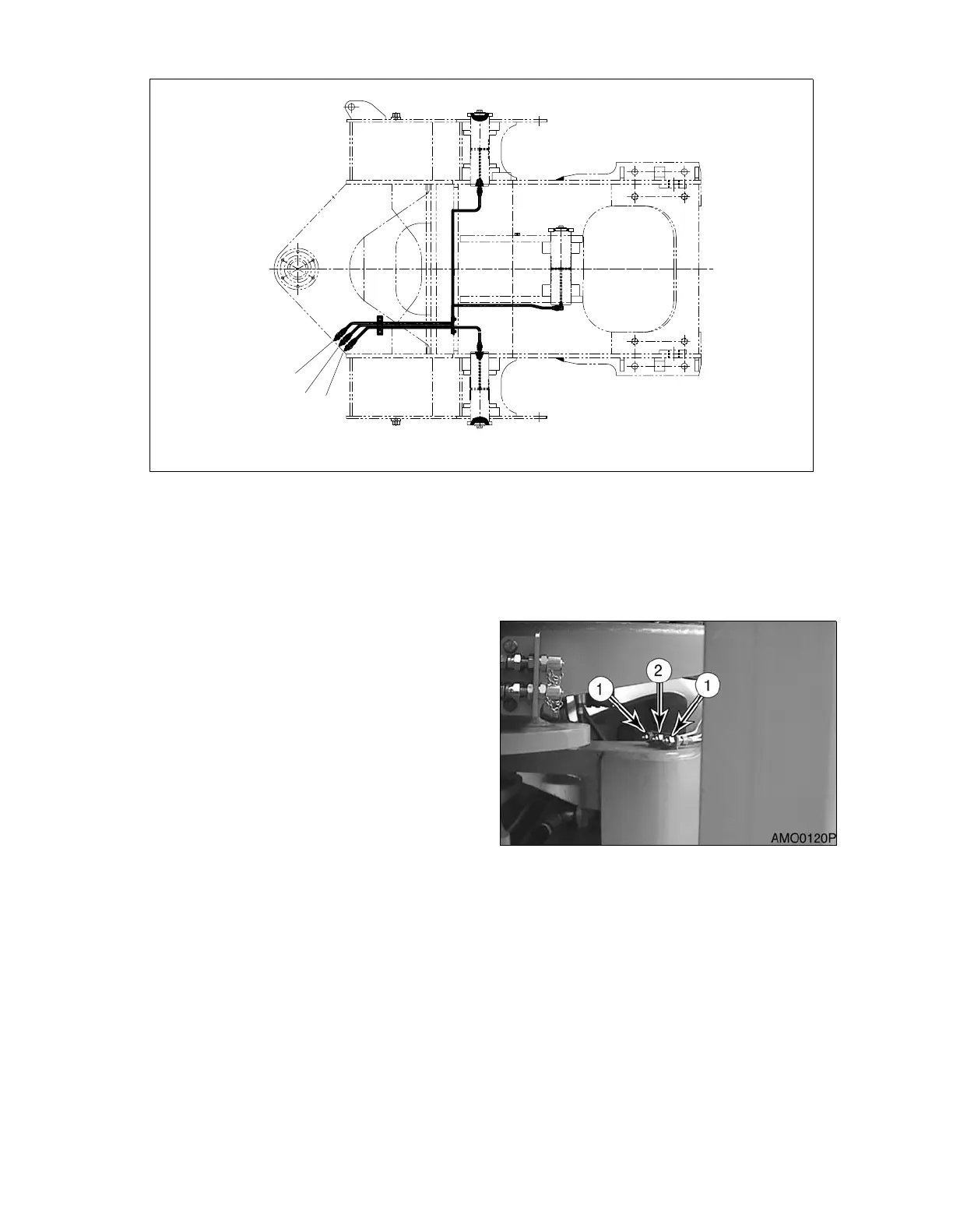

E: Remote location points.
1. REMOTE FITTINGS FOR LOADER ARM
FOOT ENDS (50 HOUR) (Figure 36 and
Figure 37).
2. REMOTE FITTINGS FOR BUCKET
CYLINDER HEAD (50 HOUR) (Figure 36
and Figure 38).
1
1
2
AJO0150L
Figure 35
Figure 36
