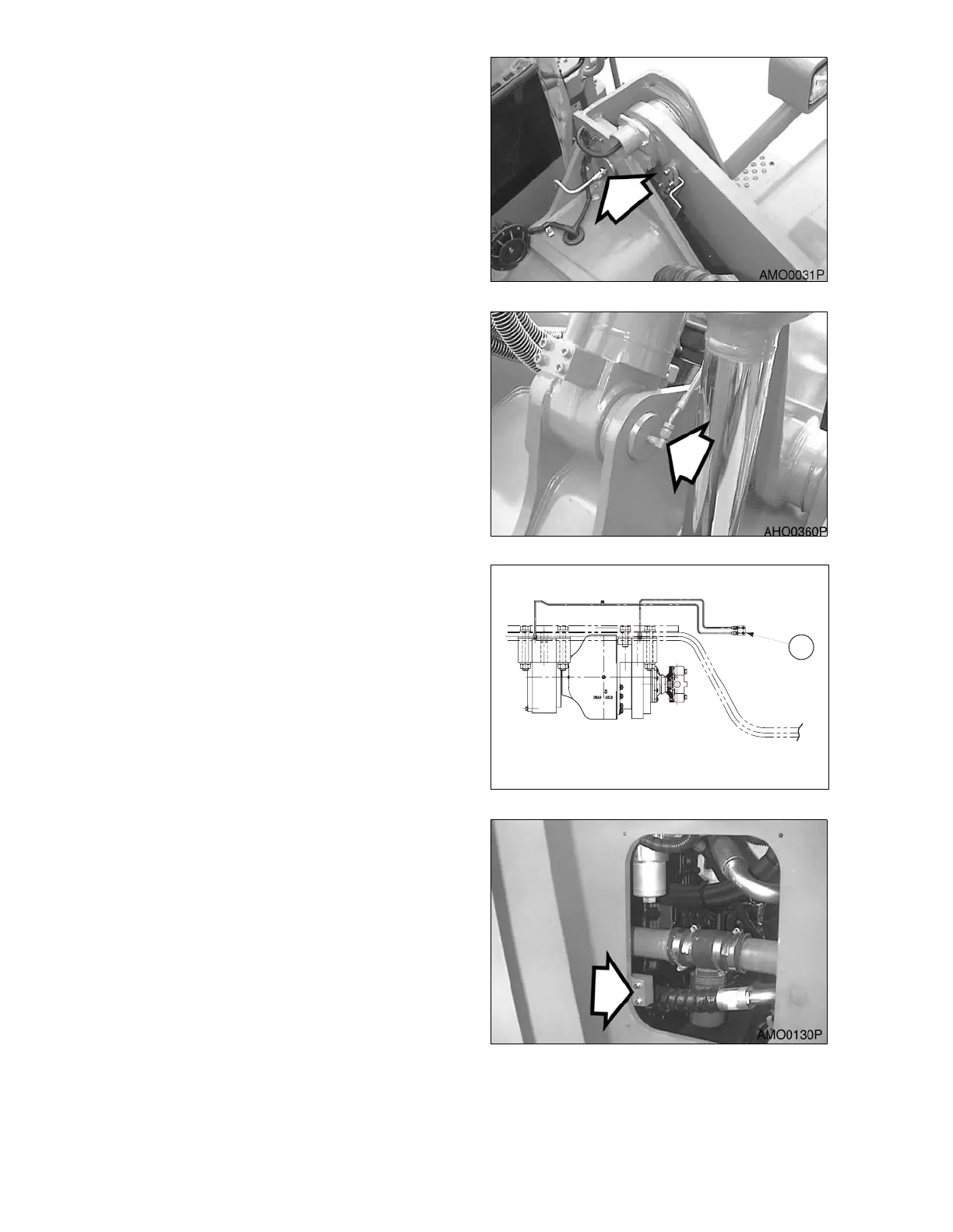

1) Loader arm foot ends, 2
locations on each side of
machine. Greased from two
remote grease points (1, Figure
35).
2) Bucket cylinder head, 1 point.
Greased from remote grease
point (2, Figure 35).
F: Rear Axle pivot (1, Figure 39 and
Figure 41), 2 locations on each side
of machine. Use remote grease
fittings mounted on frame shown in
(Figure 40 and Figure 42).
Figure 37
Figure 38
1
AHO0391L
Figure 39 (S/N 3001 thru 4000)
Figure 40 (S/N 3001 thru 4000)
