4-26 Inspection, Maintenance and Adjustment K1000896E Operation and Maintenance Manual
GREASE STEERING CYLINDER ROD AND
HEAD ENDS
1. Steering cylinder rods, 2 locations, one on
each side of machine.
2. Steering cylinder head ends, 2 locations.
Use remote grease fittings mounted on
frame.(1,2 Figure 44).
Reference
Number
Remote Grease
Fittings
1 and 2
50 Hours
Steering Cylinder
Head Ends
3
250 Hours
Drive Shaft
Center Bearing
R/AXLE
L
C
1
BAO0110L

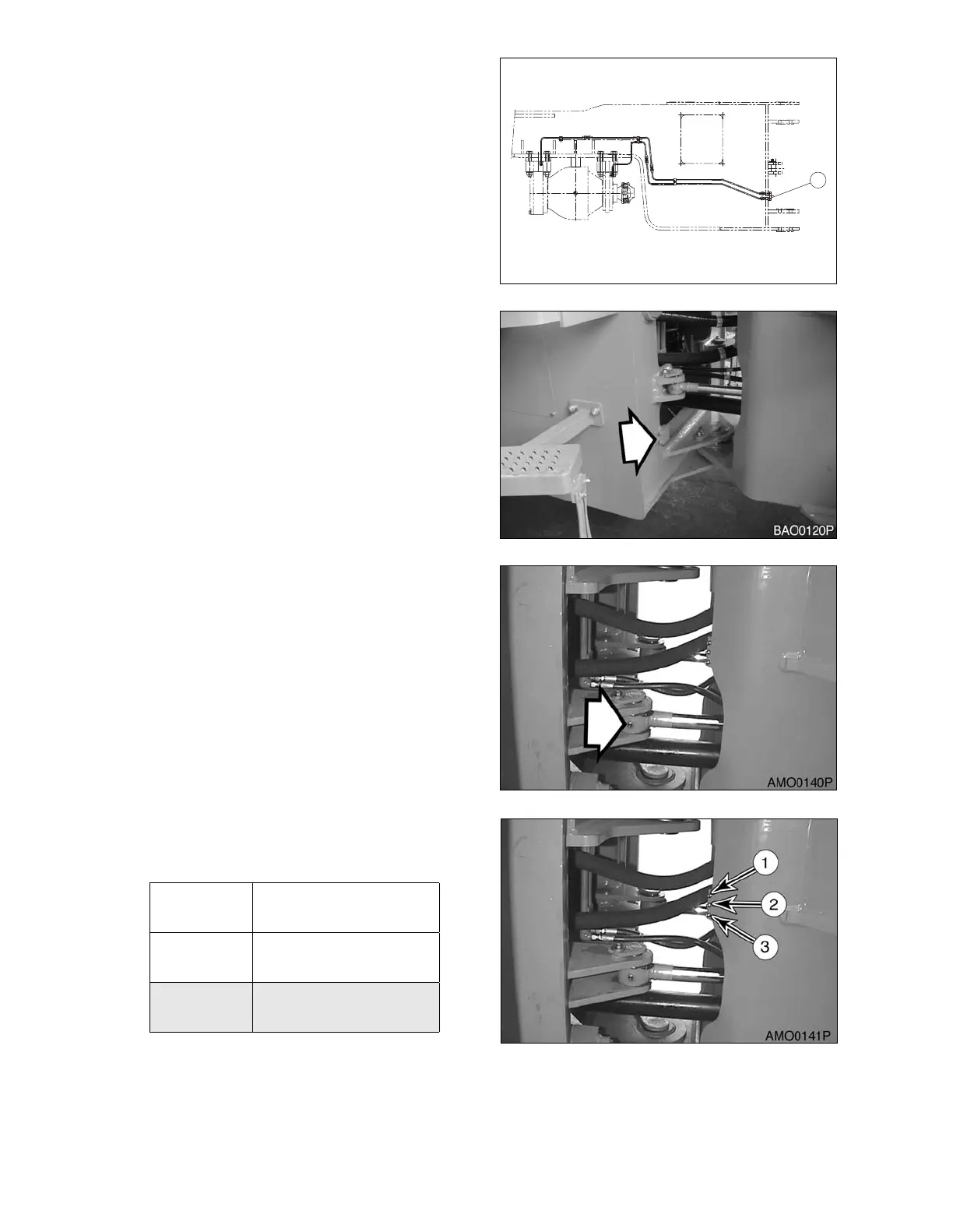

Figure 41 (S/N 4001 and Up)
Figure 42 (S/N 4001 and Up)
Figure 43
Figure 44
