K1000896E Operation and Maintenance Manual Inspection, Maintenance and Adjustment 4-43
AXLE BRAKE DISK WEAR MEASUREMENT
NOTE: A wear measurement on the multidisk brake must be made at least once a year, especially
in case of a change in braking behavior like, e.g..
• Braking noise.
• Braking power reduced.
• Deceleration changed.
• Brake fluid level changed.
• Braking pressure changed.
A wear measurement must be made on
both output sides.

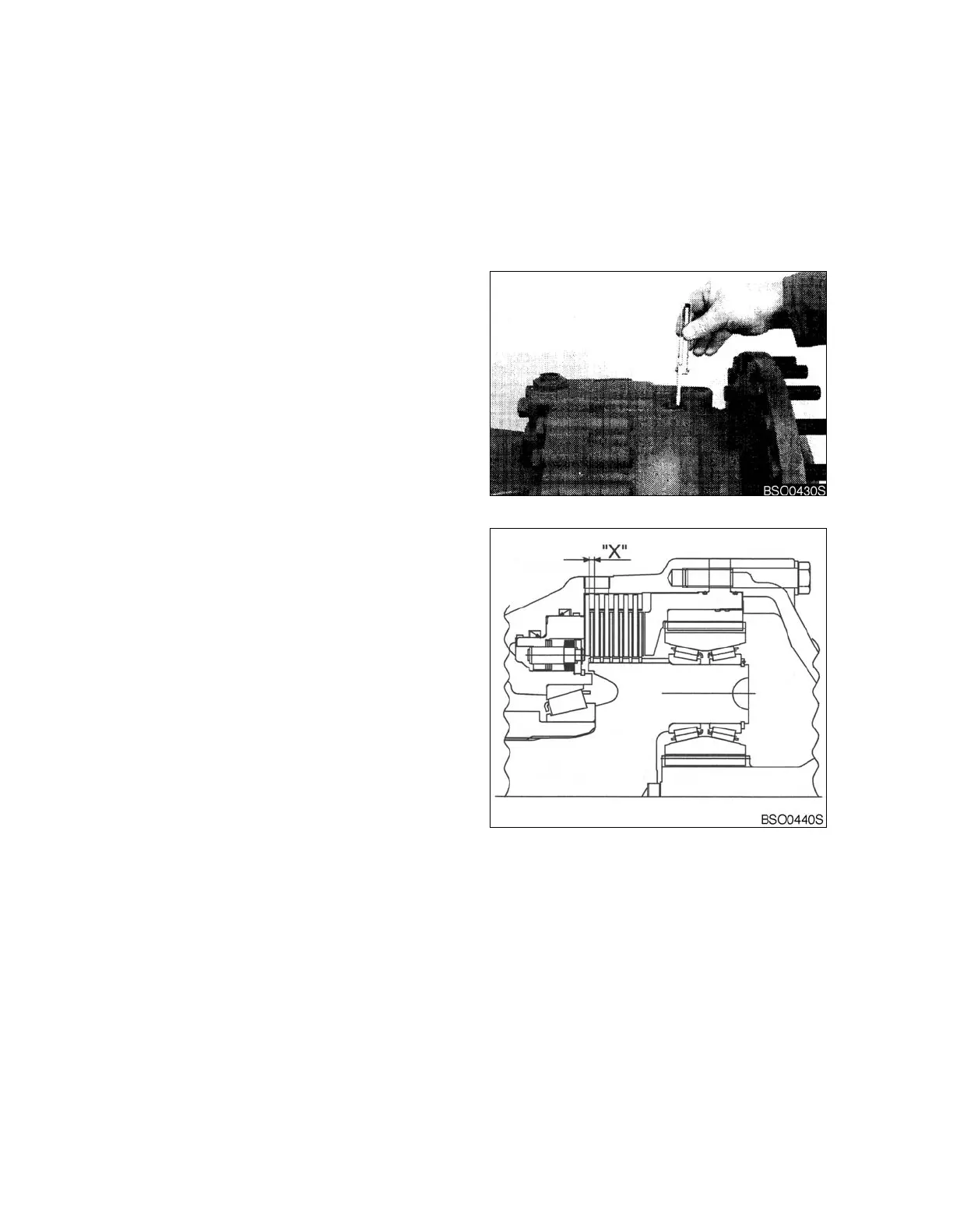

Remove screw plug, actuate brake and
determine "Dimension X" according to
Figure 77 and Figure 78 using a feeler
gauge. "Dimension X" corresponds with
the thickness of an inner brake disk on the
piston side.
NOTE: If Dimension X less than or
equal to 4.0 mm (0.16 in), the
lined disks on both sides must
be replaced.
Install level plug with a new O-ring.
NOTE: Tightening Torque: = 7.1 kg•m
(51 ft lb)
Figure 77
Figure 78
