4-48 Inspection, Maintenance and Adjustment K1000896E Operation and Maintenance Manual
3. Clean area around level plug (1, Figure
83) and drain plug (2) on center
differential. Remove level plug (1) and
drain plug (2). Allow oil to drain into a
suitable container.
NOTE: Plug Size (1, Figure 83):
M36 x 1.5
Tightening Torque: 13.2 kg•m
(95 ft lb)
Plug Size (2, Figure 83):
M24 x 1.5
Tightening Torque: 7.1 kg•m
(51 ft lb)
4. Install drain plug (2, Figure 83) into center
differential, and tighten. Install drain plugs
on both ends of axle, and tighten.
5. Pump oil into level plug hole on center
differential. Add oil until oil level is even
with bottom of plug hole. Recheck level on
center differential. Add oil if necessary.
When oil level is satisfactory at the level
plug hole, install and tighten level plug.
NOTE: Allow oil time to fill planetaries.
6. Repeat procedure for other axle.
NOTE: Plug Size (1, Figure 84):
M36 x 1.5
Tightening Torque: 13.2 kg•m
(95 ft lb)
Plug Size (2, Figure 84):
M24 x 1.5
Tightening Torque: 7.1 kg•m
(51 ft lb)

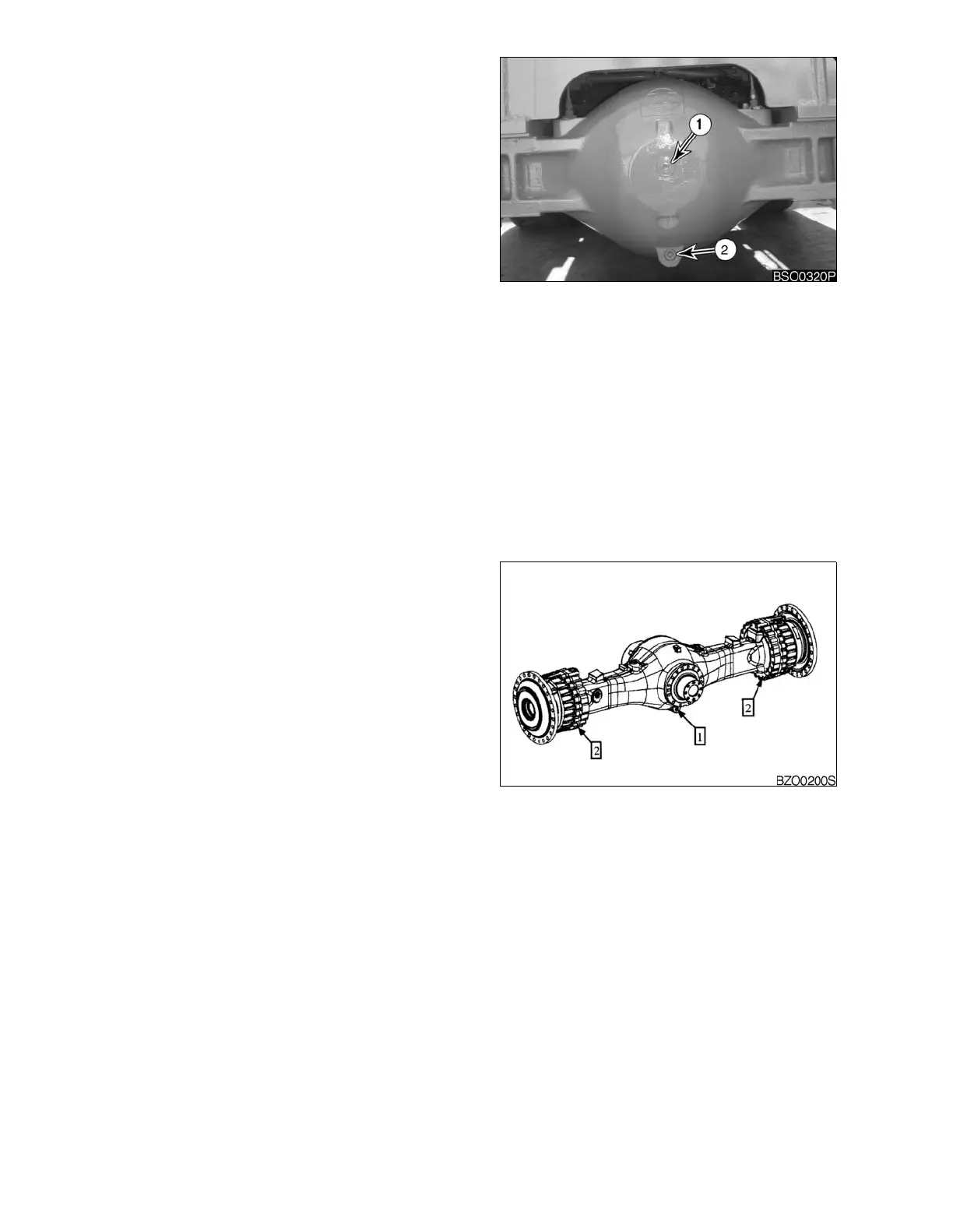

Figure 83 FRONT AXLE
Figure 84 REAR AXLE
